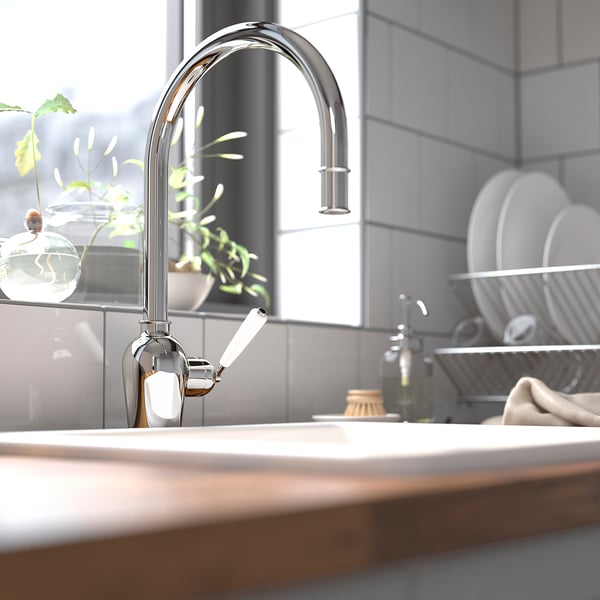

INSJÖN Kitchen mixer tap w pull-out spout, chrome-plated
INSJÖN Kitchen mixer tap w pull-out spout, chrome-plated
INSJÖN Kitchen mixer tap w pull-out spout, chrome-plated
INSJÖN Kitchen mixer tap w pull-out spout, chrome-plated
INSJÖN Kitchen mixer tap w pull-out spout, chrome-plated
INSJÖN Kitchen mixer tap w pull-out spout, chrome-plated

INSJÖN
Kitchen mixer tap w pull-out spout, chrome-plated

Price CHF 189.00
(2)

How to get it

  • 10 year guarantee

INSJÖN tap in chrome helps lower water- and energy-use – so you can lower your bills too. The high, pull-out spout is handy for rinsing dirty plates and the quality is guaranteed to outlast many years of washing.

Delivery costs or service costs for Click & Collect and collection from a pick-up point
Article Number705.073.12

Product description

10 year guarantee. Read about the terms in the guarantee brochure.

Rinsing dishes is easier with the pull-out spout.

A counterweight makes the hose easily retract back into the kitchen mixer tap.

The high spout makes it easier to wash dishes, including large pots.

The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.

Chrome-plated brass is a hard and durable surface that is easy to clean.

An aerator integrated in the tap keeps the water flow just right while less water and energy is used.

Designer

Brickstad/Palleschitz/Petersén

  • If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.

    To be mounted in a 35 mm hole in a max. 70 mm thick sink/worktop.

    Water and energy saving aerator (8 l/min.) for high-pressure systems included.

    Connection hoses with dia. 10 mm (3/8") connection included. Connection length: 35 cm.

    A tool is included that makes it easy to install the mixer tap in place.

    Max. temperature hot water system 80°C/176°F.

    Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.

    The spout can be pulled out approx. 30 cm.

    Swivel spout is preset to 120° but can be changed to 90°.

    IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com

  • Material

    Body:
    Brass, Metallized
    Spout:
    Brass, Brass, Metallized

    Care

    Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.

    Wipe dry with a clean cloth.

    To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.

    Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.

  • Tested and certified to relevant European mechanical, quality, safety and hygienic standards, including KIWA.This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 1.0 – 5.0 bar (100 kPa – 500 kPa).

  • Assembly instructions

    INSJÖN Kitchen mixer tap w pull-out spout705.073.12

    Advice and care instructions

    INSJÖN Kitchen mixer tap w pull-out spout705.073.12

TECHNICAL INFORMATION

INSJÖN

Kitchen mixer tap w pull-out spout, chrome-plated

Article Number705.073.12
Brand NameIKEA
Type of tapKitchen mixer tap with pull-out spout
Max. flow rate at 3 bar8.0 l/min
Annual energy consumption698 kWh/p.a.
Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
Min. working pressure0.5 bar (0,05MPa) (7.25 psi)
Max. static pressure10 bar (1,0MPa) (145.0 psi)
Max. worktop thickness50 mm (2")
Mounting hole measurement34-37 mm (1 3/8-1 7/16")
Connection hoses length450 mm (17 3/4")
Hose connection sizeG 3/8" (R10)
Recommended cold water temperature10-15˚C (50-59˚F)
Recommended hot water temperature60-65°C (140-150°F)
Max. hot water temperature80˚C (176˚F)
Strainer includedNo
Third party certified according to local standards bySVGW

Measurements and packaging

  • Length: 29 cm
  • Height: 43 cm

  • INSJÖN

    Article Number705.073.12
    • Width: 33 cm
    • Height: 8 cm
    • Length: 70 cm
    • Weight: 3.63 kg
    • Package(s): 1

Customer reviews

5Average rating
2Reviews

SustainabilityPeople and planet

Energy and resources

Did you know using water more efficiently can reduce your energy bills and help tackle climate change?

Heating hot water accounts for 25% of home energy usage. Using water efficiently reduces energy bills and ultimately reduces carbon emissions. Look for the unified water label and start making a difference. The label has a clear colour coded system to show how much energy and water the product uses. Green rated products use less than those rated Red. Visit www.uwla.eu to find out more.
