5 year guarantee

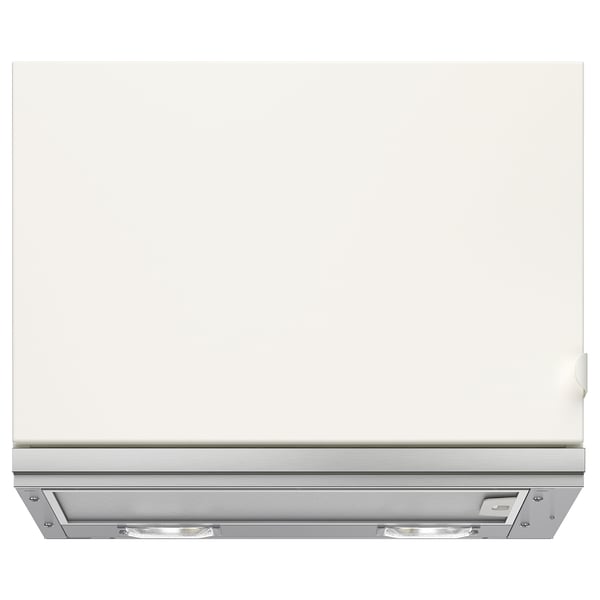

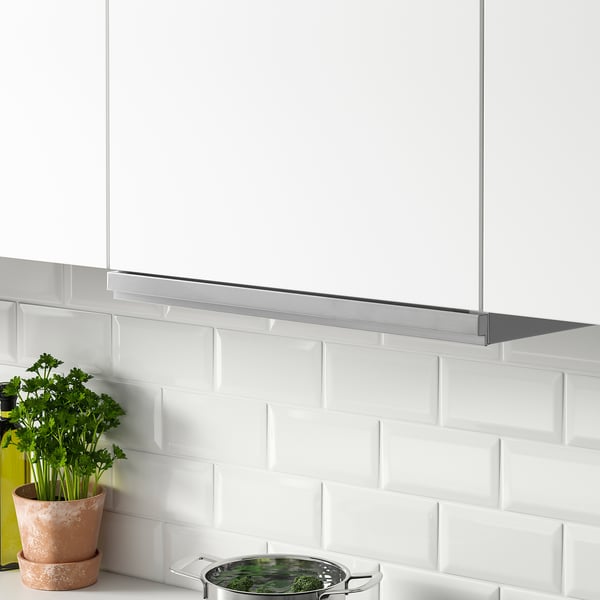

Prefer a hidden hood? UTDRAG built-in extractor hood with LED lighting is mounted almost invisibly in a wall cabinet. You start it and adjust the extraction area by pulling out the hood’s lower part.
Delivery costs or service costs for Click & Collect and collection from a pick-up pointProduct description
5 year guarantee. Read about the terms in the guarantee brochure.
Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.
3 speed settings allow you to increase or decrease the hood’s power at the push of a button, depending on your cooking needs.
LED light source included; effectively illuminates the cooking surface and provide energy saving.

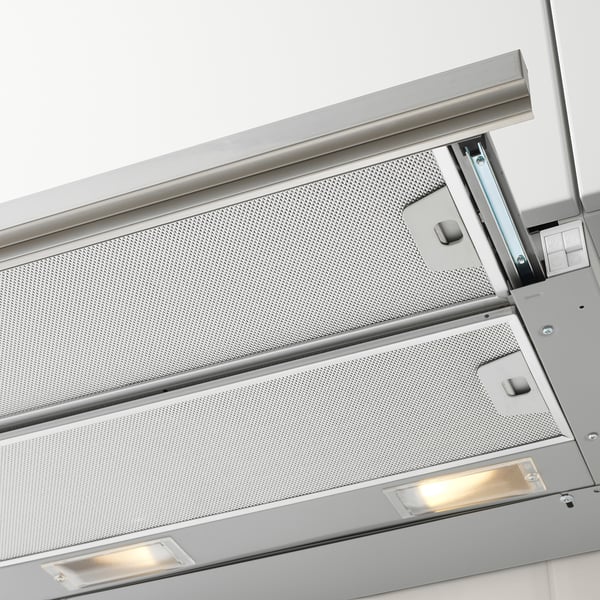

Pulls out to provide a larger exhaust area.
You can easily remove and clean the grease filter in the dishwasher.
IKEA of Sweden
TECHNICAL INFORMATION
UTDRAG
Built-in extractor hood, stainless steel, 60 cm
Article Number603.922.98| Brand Name | IKEA |
| Model Identifier | UTDRAG 603.922.98 |
| Annual energy consumption | 39 kWh/annum |
| Energy efficiency class | B |
| Fluid Dynamic Efficiency | 18,1 % |
| Fluid Dynamic Efficiency class | C |
| Lighting Efficiency | 16 Lux/watt |
| Lighting Efficiency class | D |
| Grease Filtering Efficiency | 85,1 % |
| Grease Filtering Efficiency class | B |
| Air flow at minimum speed in normal use | 170 m³/h |
| Air flow at maximum speed in normal use | 340 m³/h |
| Air flow at intensive or boost setting | n.p m³/h |
| Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use | 54 dB |
| Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use | 67 dB |
| Airborne acoustical A-weighted sound power emissions at intensive or boost setting | n.p dB |
| Power consumption in Off mode | 0 Watt |
| Power consumption in standby mode | n.a. Watt |

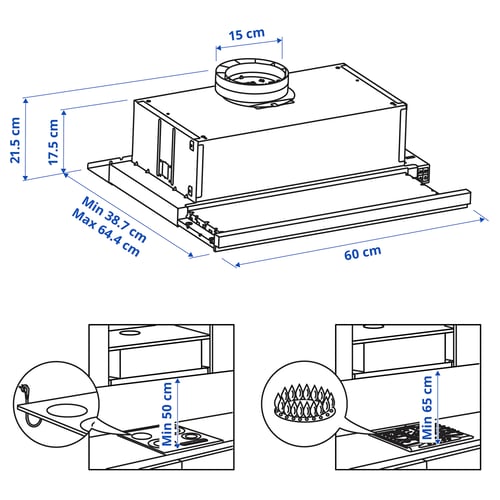

Measurements and packaging
- Width: 60.0 cm
- Min. depth: 38.7 cm
- Max. depth: 64.4 cm
- Height: 21.5 cm
- Weight: 7.60 kg
- Cord length: 109.0 cm
- Motor power: 110 W
