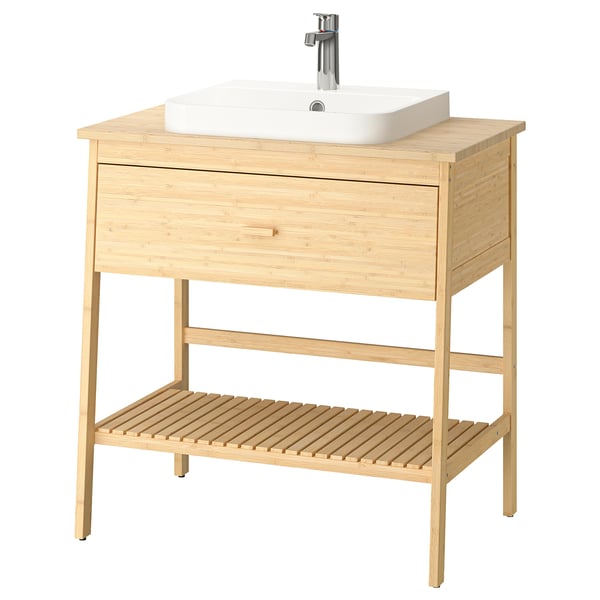

RÅGRUND / BACKSJÖN Open wsh-stnd w drw/wash-basin/tap, bamboo, 82x49x91 cm
Price CHF 387.95
How to get it
Available services
Delivery costs or service costs for Click & Collect and collection from a pick-up point
Article Number096.019.69
Product description
Article Number096.019.69
Good to know
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
Open wash-stand with 1 drawer
- Basematerial/ Drawer front/ Drawer side:
- Bamboo, Clear acrylic lacquer
- Side panel:
- Fibreboard, Bamboo veneer
- Drawer bottom:
- Fibreboard, Bamboo veneer, Clear acrylic lacquer
Semi-recessed wash-basin
- Basematerial:
- Polyester/crushed marble, Polyester
- Cover/ Spring:
- Stainless steel
- Cover cap/ Mechanism:
- Acetal plastic
- Sealing ring:
- Synthetic rubber
- Cover cap:
- Polycarbonate/ABS plastic
Water trap w flexible pipe, 1 bowl
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Wash-basin mixer tap
Brass, Chrome-plated
Countertop
Bamboo, Particleboard, Clear acrylic lacquer
TECHNICAL INFORMATION
BROGRUND
Wash-basin mixer tap, chrome-plated
Article Number405.321.05| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 475 mm (18 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Third party certified according to local standards by | ACS, ETA-Danmark, BELGAQUA, KIWA, PZH, SINTEF |

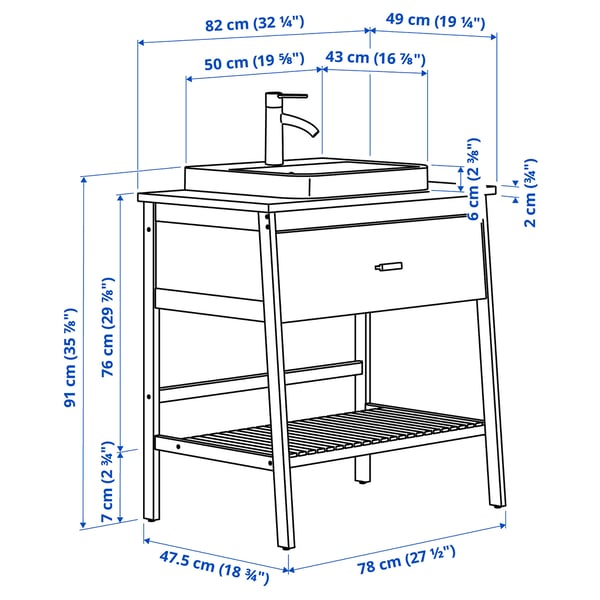

Measurements and packaging
- Width: 82.0 cm
- Depth: 49.0 cm
- Height: 91 cm
Packaging
This product consists of 5 packages
RÅGRUND
Article Number506.105.79- Width: 56 cm
- Height: 8 cm
- Length: 84 cm
- Weight: 13.61 kg
- Package(s): 1
BACKSJÖN
Article Number405.451.22- Width: 47 cm
- Height: 17 cm
- Length: 60 cm
- Weight: 10.30 kg
- Package(s): 1
RÄNNILEN
Article Number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 1
BROGRUND
Article Number405.321.05- Width: 18 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 1.50 kg
- Package(s): 1
ÅLSKEN
Article Number705.551.19- Width: 50 cm
- Height: 3 cm
- Length: 92 cm
- Weight: 6.56 kg
- Package(s): 1
