LUNDSKÄR Wash-basin mixer tap, black
How to get it
10 year guarantee
A durable tap with a bold expression in black that adds character to your bathroom. The built-in aerator regulates the water flow, which in turn helps to reduce water- and energy-use.
Delivery costs or service costs for Click & Collect and collection from a pick-up pointProduct description
10 year guarantee. Read about the terms in the guarantee brochure.
This is a durable mixer tap that you can use for many years, since the hard, ceramic discs withstand the friction that always occurs when you change the temperature of the water.

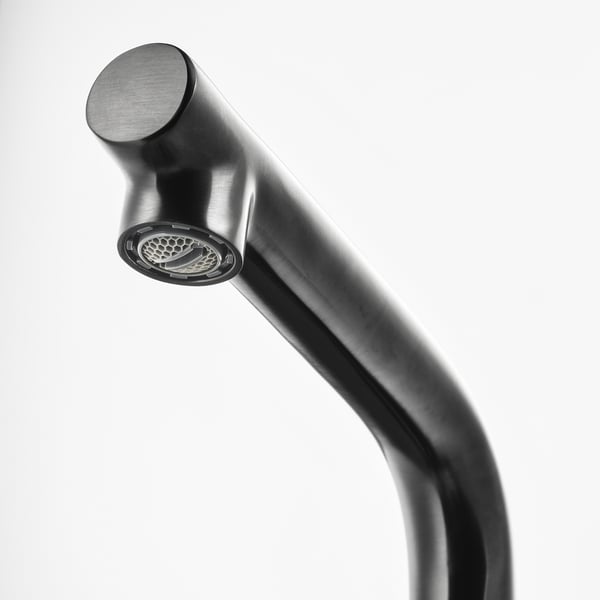

An aerator integrated in the tap keeps the water flow just right while less water and energy is used.
Jon Karlsson
Good to know
A tool is included that makes it easy to install the mixer tap in place.
Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.
Connection hoses with 3/8" connection included. Connection length: 35 cm.
Overflow ring, plug lid, fixing screw and waste grill in matching colour included.
Max. temperature hot water system 80°C/176°F.
Not compatible with HÖRVIK or KATTEVIK countertop wash-basins as the mixer tap must be mounted in a wash-basin, not in a countertop.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Fits IKEA wash-basins and standard wash-basins from other manufacturers.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
- Brass, Metallized
Care
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
Safety and compliance
Assembly and documents
Assembly instructions
LUNDSKÄR Wash-basin mixer tap005.326.16Advice and care instructions
LUNDSKÄR Wash-basin mixer tap005.326.16TECHNICAL INFORMATION
LUNDSKÄR
Wash-basin mixer tap, black
Article Number005.326.16| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 382 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 3/8" (R10) |
| Swivel spout | 360 ° |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | Yes |
| Third party certified according to local standards by | ETA-Danmark, ACS, KIWA, PZH, SINTEF, BELGAQUA |

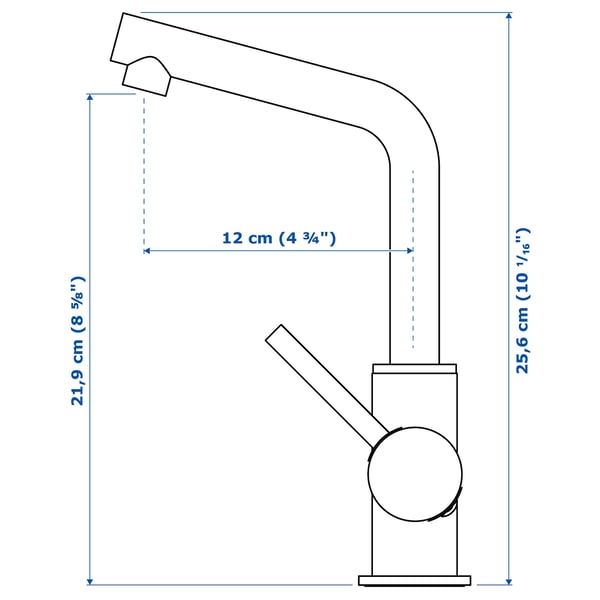

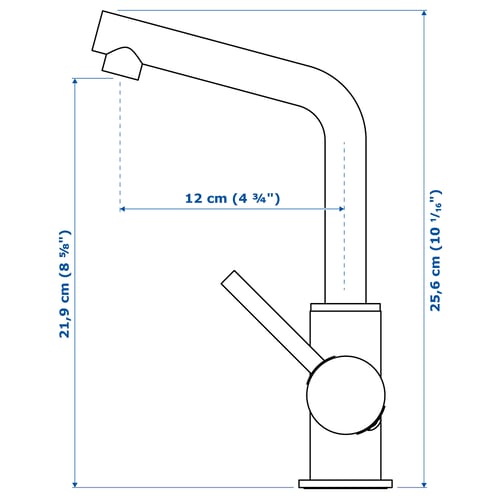

Measurements and packaging
- Height: 25 cm
Packaging
LUNDSKÄR
Article Number005.326.16- Width: 20 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 1.66 kg
- Package(s): 1
