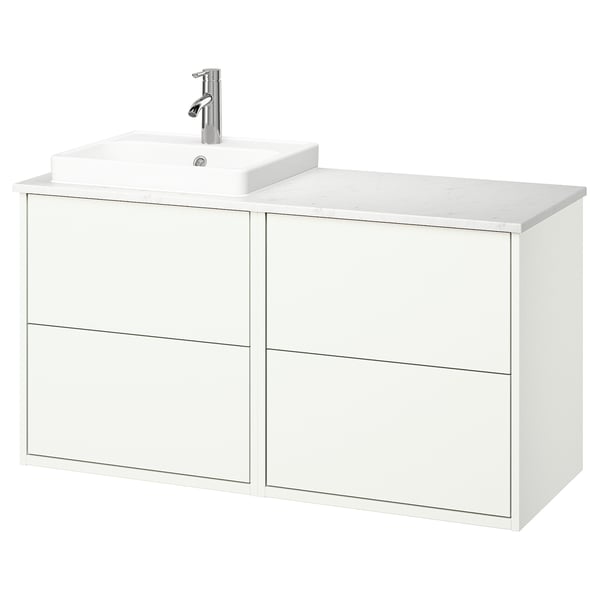

HAVBÄCK / ORRSJÖN Wash-stand/wash-basin/tap, white/white marble effect, 122x49x71 cm
Should be completed with:
How to get it
10 year guarantee
In a shared bathroom, this solution offers your own private drawer – or two. The wash-basin is paired with a roomy countertop where you can place things while getting ready for the day ahead.
Delivery costs or service costs for Click & Collect and collection from a pick-up pointProduct description
This solution combines 2 wash-stands, a countertop and wash-basin to create a convenient closed storage solution with room to spare for more than one person at time.
Depending on your space and needs, complete this solution with your choice of a mirror or mirror cabinet from our range, sold separately.
What’s not to like? The clean, straight lines and a matt white finish give your bathroom a fresh and appealing character that is easy to personalise with your choice of knobs or handles.
Set your style with your choice of knobs and/or handles from our range, sold separately.

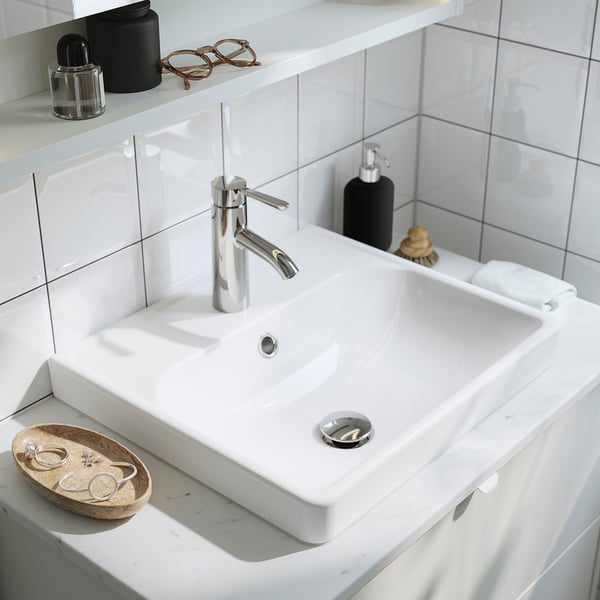

The ceramic wash-basin with its soft shapes and durable surface is made with the best materials and will outlast many years of wear and tear.
This combination is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
Combine with other cabinets in the HAVBÄCK series to create a coordinated bathroom solution that fits your space and needs.
10 year guarantee. Read about the terms in the guarantee brochure.
Good to know
Comprises: 2 wash-stands with drawers, 1 countertop, 1 semi-recessed wash-basin, 1 water trap and 1 mixer tap.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
Knobs and handles are sold separately.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
- Frame/ Middle rail/ Drawer front/ Drawer sides/ Drawer divider:
- Particleboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Top rail:
- Fibreboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Drawer back:
- Particleboard, Plastic foil
- Drawer bottom:
- Fibreboard, Plastic foil
- Cover/ Spring:
- Stainless steel
- Cover cap/ Mechanism:
- Acetal plastic
- Sealing ring:
- Synthetic rubber
- Cover cap:
- Polycarbonate/ABS plastic
- Basematerial:
- Ceramics, Coloured glaze
Brass, Chrome-plated
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Fibreboard, Plastic foil, Melamine foil
Care
Wipe clean with a mild soapy solution.
Wipe dry with a clean cloth.
Wipe dry with a clean cloth.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Safety and compliance
TECHNICAL INFORMATION
DALSKÄR
Wash-basin mixer tap, chrome-plated
Article Number205.321.49| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 475 mm (18 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Third party certified according to local standards by | ACS, ETA-Danmark, BELGAQUA, KIWA, PZH, SINTEF |

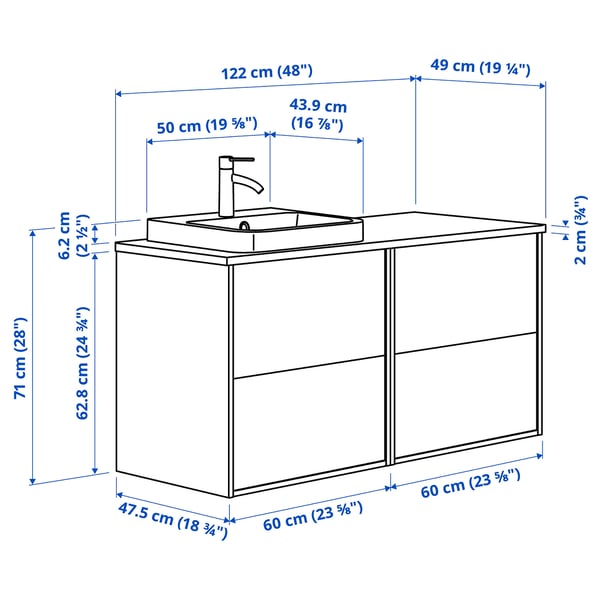

Measurements and packaging
- Width: 122.0 cm
- Depth: 49.0 cm
- Height: 71.0 cm
- Drawer front, thickness: 16 mm
Packaging
HAVBÄCK
Article Number905.317.64- Width: 57 cm
- Height: 7 cm
- Length: 82 cm
- Weight: 16.25 kg
- Package(s): 2
- Width: 35 cm
- Height: 10 cm
- Length: 61 cm
- Weight: 10.40 kg
- Package(s): 2
ORRSJÖN
Article Number405.450.75- Width: 50 cm
- Height: 18 cm
- Length: 53 cm
- Weight: 13.00 kg
- Package(s): 1
DALSKÄR
Article Number205.321.49- Width: 18 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 1.39 kg
- Package(s): 1
RÄNNILEN
Article Number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 1
TOLKEN
Article Number803.546.91- Width: 50 cm
- Height: 3 cm
- Length: 137 cm
- Weight: 9.46 kg
- Package(s): 1
