EDSVIK Dual-control kitchen mixer tap, chrome-plated
EDSVIK Dual-control kitchen mixer tap, chrome-plated
EDSVIK Dual-control kitchen mixer tap, chrome-plated
EDSVIK Dual-control kitchen mixer tap, chrome-plated
EDSVIK Dual-control kitchen mixer tap, chrome-plated

EDSVIK Dual-control kitchen mixer tap, chrome-plated

Price CHF 59.95
(2)

How to get it

  • 10 year guarantee

EDSVIK traditional chrome tap helps lower water- and energy-use – so you can lower your bills too. The quality is guaranteed to outlast many years of pouring, washing and rinsing.

Delivery costs or service costs for Click & Collect and collection from a pick-up point
Article Number505.072.09

Product description

10 year guarantee. Read about the terms in the guarantee brochure.

The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.

Chrome-plated brass is a hard and durable surface that is easy to clean.

An aerator integrated in the tap keeps the water flow just right while less water and energy is used.

Designer

IKEA of Sweden

  • If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.

    To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.

    Water and energy saving aerator (8 l/min.) for high-pressure systems included.

    Connection hoses with dia. 10 mm (3/8") connection included. Connection length: 35 cm.

    A tool is included that makes it easy to install the mixer tap in place.

    Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.

    Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.

    Swivel spout: 360°.

    IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com

  • Material

    Body:
    Brass, Metallized
    Spout:
    Brass, Brass, Metallized

    Care

    Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.

    Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.

    Wipe dry with a clean cloth.

  • Tested and certified according to relevant mechanical, quality and safety standards.This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 1.0 – 5.0 bar (100 kPa – 500 kPa).

  • Assembly instructions

    EDSVIK Dual-control kitchen mixer tap505.072.09

    Advice and care instructions

    EDSVIK Dual-control kitchen mixer tap505.072.09

TECHNICAL INFORMATION

EDSVIK

Dual-control kitchen mixer tap, chrome-plated

Article Number505.072.09
Brand NameIKEA
Type of tapDual-control kitchen mixer tap
Max. flow rate at 3 bar8.0 l/min
Annual energy consumption628 kWh/p.a.
Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
Min. working pressure0.5 bar (0,05MPa) (7.25 psi)
Max. static pressure10 bar (1,0MPa) (145.0 psi)
Max. worktop thickness50 mm (2")
Mounting hole measurement34-37 mm (1 3/8-1 7/16")
Connection hoses length425 mm (16 3/4")
Hose connection sizeG 3/8" (R10)
Recommended cold water temperature10-15˚C (50-59˚F)
Recommended hot water temperature60-65°C (140-150°F)
Max. hot water temperature80˚C (176˚F)
Strainer includedNo
Third party certified according to local standards bySVGW

Measurements and packaging

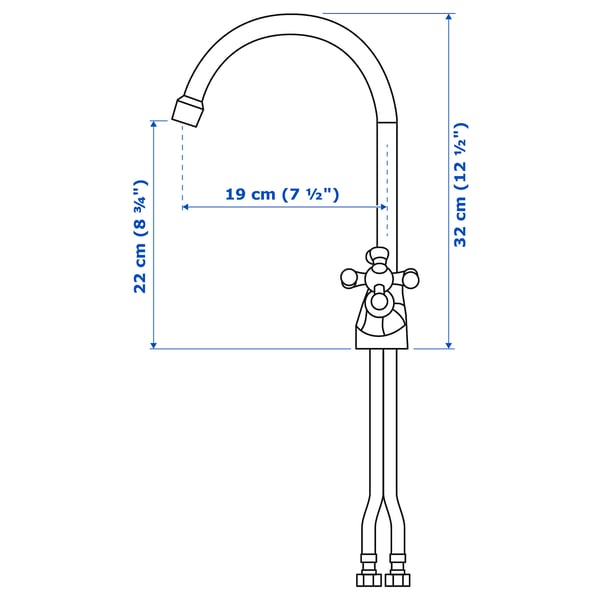

  • Height: 32 cm

  • EDSVIK

    Article Number505.072.09
    • Width: 25 cm
    • Height: 6 cm
    • Length: 41 cm
    • Weight: 1.55 kg
    • Package(s): 1

Customer reviews

5Average rating
2Reviews

SustainabilityPeople and planet

Energy and resources

Did you know using water more efficiently can reduce your energy bills and help tackle climate change?

Heating hot water accounts for 25% of home energy usage. Using water efficiently reduces energy bills and ultimately reduces carbon emissions. Look for the unified water label and start making a difference. The label has a clear colour coded system to show how much energy and water the product uses. Green rated products use less than those rated Red. Visit www.uwla.eu to find out more.
