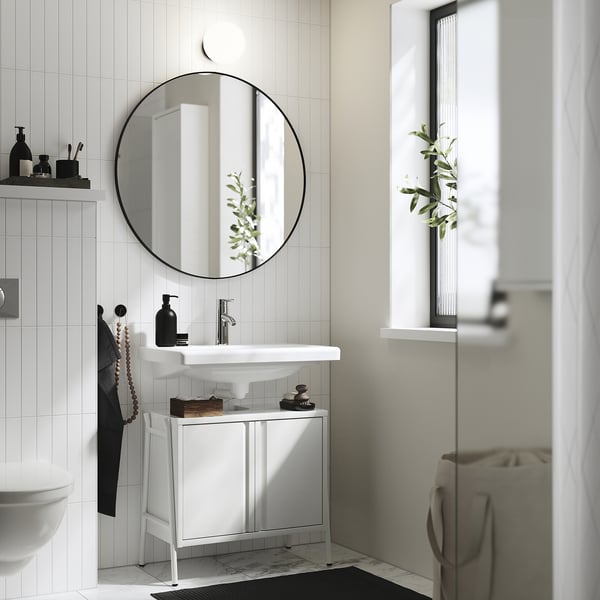

BYASJÖN / TVÄLLEN Wash-stnd w doors/wash-basin/tap, high-gloss white, 66x37x59 cm
How to get it
10 year guarantee
Space optimising combo – the cabinet slides in under the wash-basin, concealing pipes and providing precious shelf space in an instant. The white high-gloss finish brings a fresh feel to your bathroom.
Delivery costs or service costs for Click & Collect and collection from a pick-up pointProduct description
There is plenty of shelf space inside and on top of the cabinet and space for piping in the back of the cabinet.
Soft-closing doors close quietly without slamming.
Durable and stable metal leg frame.
A perfect place to hide toilet paper or hygiene products that tend to clutter.
No need to drill holes in the walls as the robust construction stands steady on the floor.
10 year guarantee. Read about the terms in the guarantee brochure.
Good to know
May be attached to the wall but not necessary.
1 fixed shelf included.
All parts have protective edge bands fixed with humidity-resistant glue to prevent moisture and humidity from penetrating.
Adjustable feet ensure the cabinets stand steady on uneven floors.
Coordinates with ÄNGSJÖN bathroom furniture.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
- Frame:
- Particleboard, Plastic foil (min. 70% recycled), Plastic foil, Plastic edging
- Door:
- Fibreboard, Plastic foil (min. 70% recycled), Plastic foil, Plastic edging
- Shelf:
- Particleboard, Plastic foil, Plastic edging
- Back panel:
- Fibreboard, Plastic foil, Plastic foil
- Leg frame:
- Steel, Epoxy/Acrylic coating, Powder coating
Ceramics, Coloured glaze
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Brass, Chrome-plated
Care
Wipe clean with a mild soapy solution.
Wipe clean with a dry cloth.
TECHNICAL INFORMATION
DALSKÄR
Wash-basin mixer tap, chrome-plated
Article Number205.321.49| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 475 mm (18 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Third party certified according to local standards by | ACS, ETA-Danmark, BELGAQUA, KIWA, PZH, SINTEF |

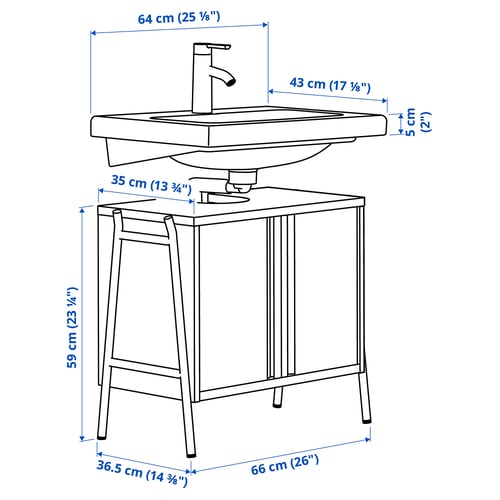

Measurements and packaging
- Width: 66.0 cm
- Depth: 36.5 cm
- Height: 59.0 cm
Packaging
BYASJÖN
Article Number405.915.19- Width: 45 cm
- Height: 17 cm
- Length: 66 cm
- Weight: 19.21 kg
- Package(s): 1
TVÄLLEN
Article Number504.508.25- Width: 48 cm
- Height: 20 cm
- Length: 68 cm
- Weight: 18.60 kg
- Package(s): 1
RÄNNILEN
Article Number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 1
DALSKÄR
Article Number205.321.49- Width: 18 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 1.39 kg
- Package(s): 1
