BROGRUND Wash-basin mixer tap with sensor, chrome-plated
BROGRUND Wash-basin mixer tap with sensor, chrome-plated
BROGRUND Wash-basin mixer tap with sensor, chrome-plated
BROGRUND Wash-basin mixer tap with sensor, chrome-plated
BROGRUND Wash-basin mixer tap with sensor, chrome-plated
BROGRUND Wash-basin mixer tap with sensor, chrome-plated

BROGRUND
Wash-basin mixer tap with sensor, chrome-plated

Price CHF 149.00
(2)

How to get it

  • 10 year guarantee

Like magic, the water turns on at the slightest hand movement in front of the tap, at a pre-set temperature. A clean and simple design that’s hygienic too, since you don’t need to touch the tap.

Delivery costs or service costs for Click & Collect and collection from a pick-up point
Article Number305.068.28

Product description

10 year guarantee. Read about the terms in the guarantee brochure.

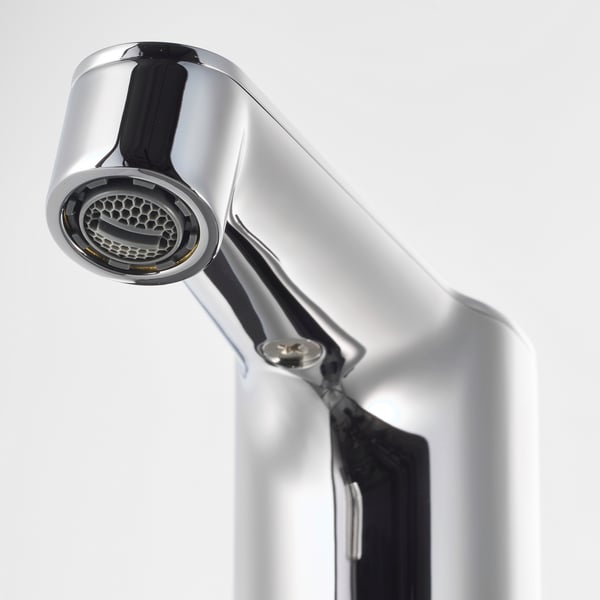

Built-in pressure compensating aerator keeps the water flow just right and enables water-efficiency.

Designer

H Preutz/N Karlsson

  • Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.

    A tool is included that makes it easy to install the mixer tap in place.

    Connection hoses with 3/8" connection included. Connection length: 60 cm.

    4 batteries (LR6 AA 1.5V) included.

    Max. temperature hot water system 80°C/176°F.

    Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.

    Replacement batteries are available in most stores where alkaline batteries are sold.

    If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.

    Fits IKEA wash-basins and standard wash-basins from other manufacturers.

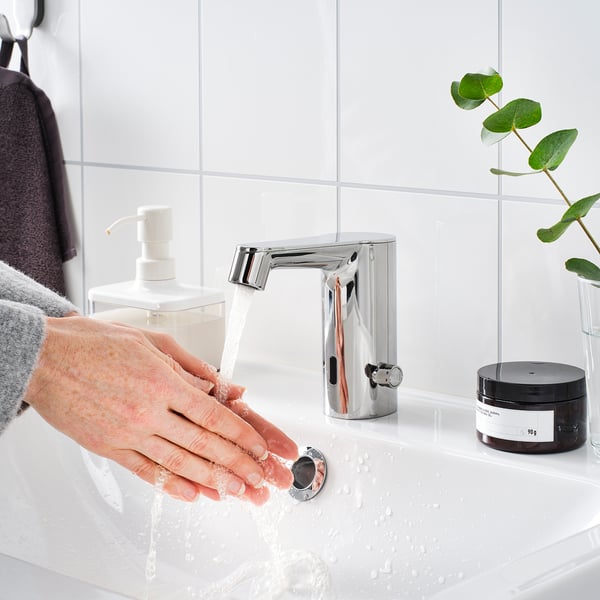

    The water turns on automatically when the sensor detects your hands or an object in front of it, and turns off automatically 2 seconds after removing them.

    The water temperature is controlled using the lever on the side of the mixer tap.

    IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com

  • Material

    Body:
    Zinc, Chrome-plated
    Inner body:
    Brass

    Care

    Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.

    Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.

  • Tested and certified to relevant European mechanical, quality, safety and hygienic standards, including KIWA.This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 1.0 – 5.0 bar (100 kPa – 500 kPa).

  • Assembly instructions

    BROGRUND Wash-basin mixer tap with sensor305.068.28

    Advice and care instructions

    BROGRUND Wash-basin mixer tap with sensor305.068.28BROGRUND Wash-basin mixer tap with sensor305.068.28BROGRUND Wash-basin mixer tap with sensor305.068.28BROGRUND Wash-basin mixer tap with sensor305.068.28BROGRUND Wash-basin mixer tap with sensor305.068.28

TECHNICAL INFORMATION

BROGRUND

Wash-basin mixer tap with sensor, chrome-plated

Article Number305.068.28
Brand NameIKEA
Type of tapWash-basin mixer tap with sensor
Max. flow rate at 3 bar5.7 l/min
Annual energy consumption382 kWh/p.a.
Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
Min. working pressure1 bar (0,1MPa) (14.5 psi)
Max. static pressure10 bar (1,0MPa) (145.0 psi)
Max. countertop thickness50 mm (2")
Mounting hole measurement34-37 mm (1 3/8-1 7/16")
Connection hoses length575 mm (22 3/4")
Hose connection sizeG 3/8" (R10)
Recommended cold water temperature10-15˚C (50-59˚F)
Recommended hot water temperature60-65°C (140-150°F)
Max. hot water temperature80˚C (176˚F)
Strainer includedNo
Amount of batteries4 pcs
Battery typeAA
Third party certified according to local standards bySVGW

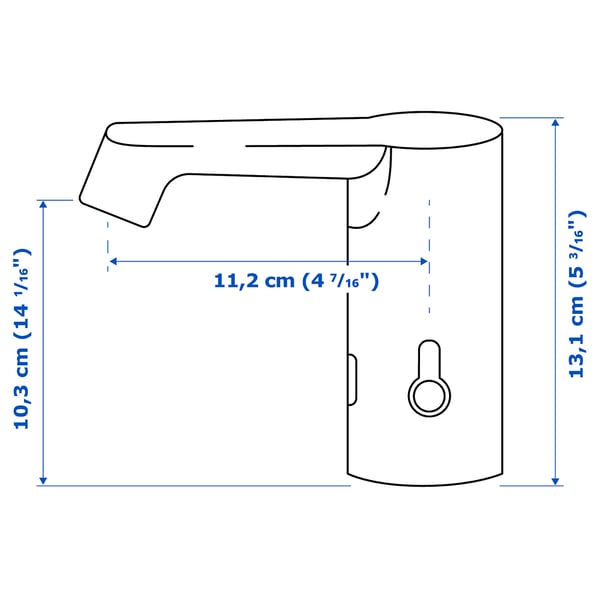

Measurements and packaging

  • Height: 13 cm

  • BROGRUND

    Article Number305.068.28
    • Width: 21 cm
    • Height: 7 cm
    • Length: 35 cm
    • Weight: 1.65 kg
    • Package(s): 1
