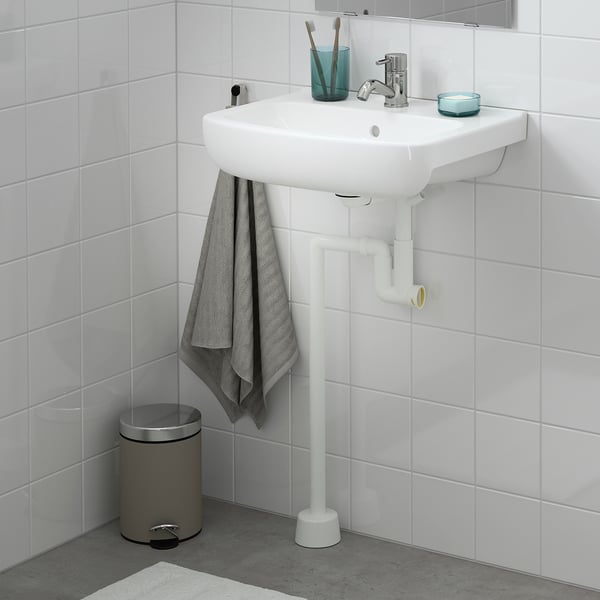

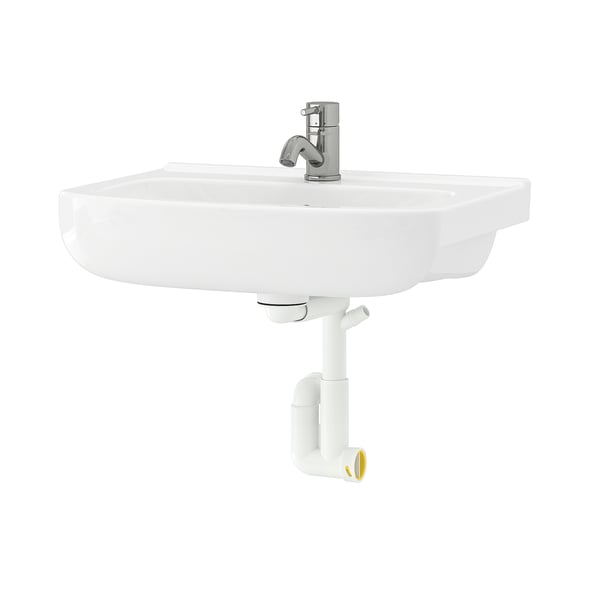

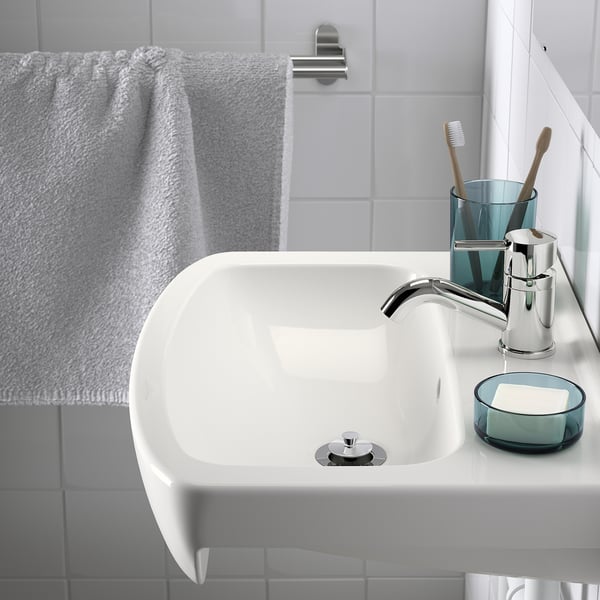

BJÖRKÅN Wash-basin w water trap/mixer tap, white, 54x40 cm
Price CHF 78.00
How to get it
Available services
Delivery costs or service costs for Click & Collect and collection from a pick-up point
Article Number895.467.28
Product description
Article Number895.467.28
Good to know
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
Single wash-basin
Vitreous china, Coloured glaze
Wash-basin mixer tap
Brass, Brass, Chrome-plated
Water trap w flexible pipe, 1 bowl
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Safety and compliance
The washbasin is resistant to most chemicals, except for strong acids and strong alkalis.
Assembly and documents
Assembly instructions
BJÖRKÅN Single wash-basin004.681.49BJÖRKÅN Single wash-basin004.681.49PILKÅN Wash-basin mixer tap705.328.54RÄNNILEN Water trap w flexible pipe, 1 bowl205.545.32Advice and care instructions
BJÖRKÅN Single wash-basin004.681.49PILKÅN Wash-basin mixer tap705.328.54PILKÅN Wash-basin mixer tap705.328.54TECHNICAL INFORMATION

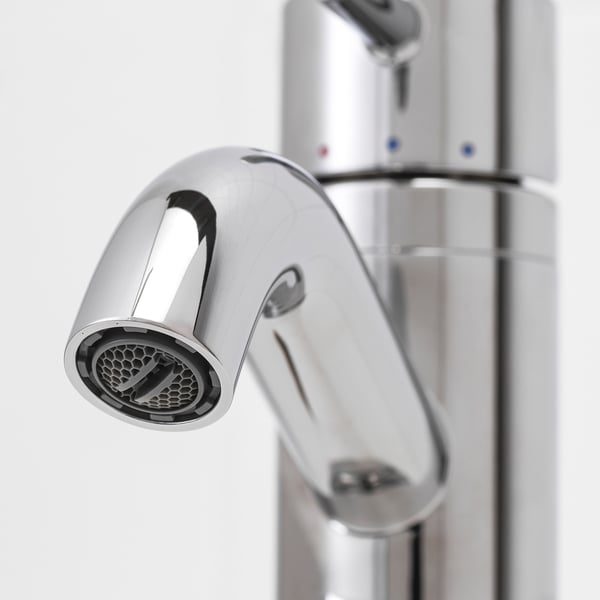

PILKÅN
Wash-basin mixer tap, chrome-plated
Article Number705.328.54| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
Measurements and packaging
- Width: 54 cm
- Depth: 40 cm
Packaging
This product consists of 3 packages
BJÖRKÅN
Article Number004.681.49- Width: 45 cm
- Height: 19 cm
- Length: 58 cm
- Weight: 14.60 kg
- Package(s): 1
PILKÅN
Article Number705.328.54- Width: 18 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 0.90 kg
- Package(s): 1
RÄNNILEN
Article Number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 1
