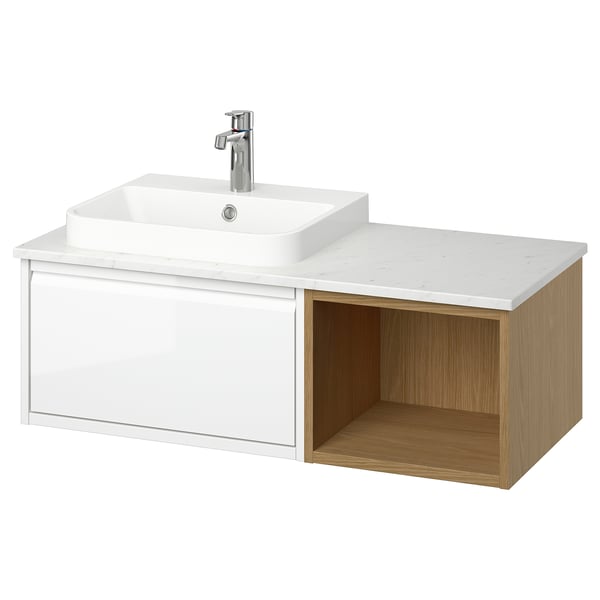

ÄNGSJÖN / BACKSJÖN Wash-stand/wash-basin/tap, high-gloss white/oak effect/white marble effect, 102x49x41 cm
How to get it
10 year guarantee
This solution offers just enough storage for your most important everyday gear. A stylish and oh so cool combo with plenty of character thanks to the countertop and open wooden storage underneath.
Delivery costs or service costs for Click & Collect and collection from a pick-up pointProduct description
This combination with 1 drawer and 1 open cabinet gives you the storage you need and appears to be floating, making your bathroom feel spacious.
Depending on your space and needs, complete this solution with your choice of a mirror or mirror cabinet from our range, sold separately.
The high gloss finish in white creates a sleek and contemporary expression emphasised with integrated handles for a refined look.
The wash-basin is made of crushed marble which enables sharp, crisp edges with a scratch-resistant surface. This gives a clean and modern look.
This combination is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath.
Combine with other cabinets in the ÄNGSJÖN series to create a coordinated bathroom solution that fits your space and needs.
10 year guarantee. Read about the terms in the guarantee brochure.
Good to know
Comprises: 1 wash-stand with drawer, 1 open cabinet, 1 countertop, 1 semi-recessed wash-basin, 1 water trap and 1 mixer tap.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
- Frame/ Bottom panel:
- Particleboard, Plastic foil (min. 50% recycled), Plastic foil, Plastic edging, Plastic edging
- Top rail:
- Fibreboard, Plastic foil (min. 50% recycled), Plastic edging, Plastic edging
- Middle rail/ Drawer divider/ Drawer sides/ Drawer back:
- Particleboard, Plastic foil, Plastic edging, Plastic edging
- Drawer front:
- Fibreboard, Plastic foil (min. 50% recycled), Plastic foil, Plastic edging, Plastic edging
- Drawer bottom:
- Fibreboard, Plastic foil, Plastic foil
- Brass, Chrome-plated
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
- Basematerial:
- Polyester/crushed marble, Polyester
- Cover/ Spring:
- Stainless steel
- Cover cap/ Mechanism:
- Acetal plastic
- Sealing ring:
- Synthetic rubber
- Cover cap:
- Polycarbonate/ABS plastic
- Frame/ Shelf:
- Particleboard, Plastic foil, Plastic edging (min. 50% recycled), Plastic edging
- Back panel:
- Fibreboard, Plastic foil
- Fibreboard, Plastic foil, Melamine foil
Care
Wipe clean with a mild soapy solution.
Wipe dry with a clean cloth.
Wipe dry with a clean cloth.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Safety and compliance
Assembly and documents
Assembly instructions
ÄNGSJÖN Wash-stand with drawer805.350.98BROGRUND Wash-basin mixer tap405.321.05RÄNNILEN Water trap w flexible pipe, 1 bowl205.545.32BACKSJÖN Semi-recessed wash-basin405.451.22HAGAÅN Open cabinet405.355.14TOLKEN Countertop803.546.86Advice and care instructions
ÄNGSJÖN Wash-stand with drawer805.350.98ÄNGSJÖN Wash-stand with drawer805.350.98BROGRUND Wash-basin mixer tap405.321.05BROGRUND Wash-basin mixer tap405.321.05BACKSJÖN Semi-recessed wash-basin405.451.22BACKSJÖN Semi-recessed wash-basin405.451.22HAGAÅN Open cabinet405.355.14TOLKEN Countertop803.546.86TOLKEN Countertop803.546.86TECHNICAL INFORMATION
BROGRUND
Wash-basin mixer tap, chrome-plated
Article Number405.321.05| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 475 mm (18 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Third party certified according to local standards by | ACS, ETA-Danmark, BELGAQUA, KIWA, PZH, SINTEF |

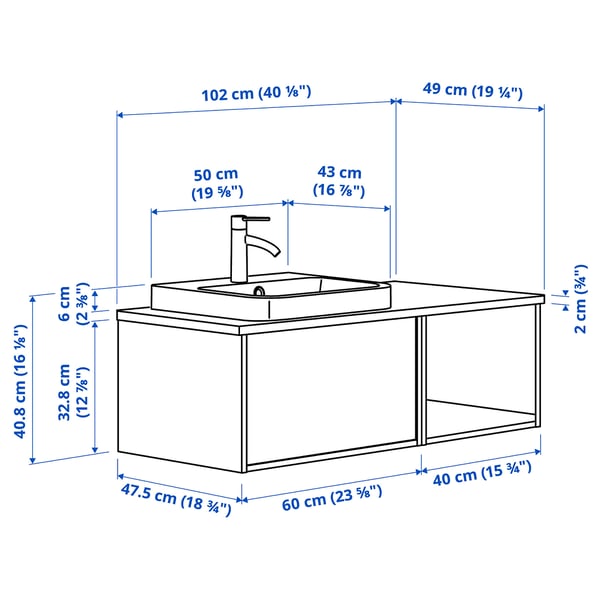

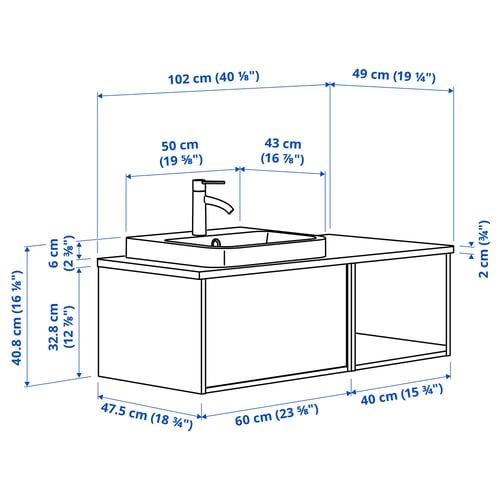

Measurements and packaging
- Width: 102.0 cm
- Depth: 49.0 cm
- Height: 40.8 cm
- Drawer front, thickness: 16 mm
Packaging
ÄNGSJÖN
Article Number805.350.98- Width: 48 cm
- Height: 9 cm
- Length: 67 cm
- Weight: 14.80 kg
- Package(s): 1
BROGRUND
Article Number405.321.05- Width: 18 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 1.50 kg
- Package(s): 1
RÄNNILEN
Article Number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 1
BACKSJÖN
Article Number405.451.22- Width: 47 cm
- Height: 17 cm
- Length: 60 cm
- Weight: 10.30 kg
- Package(s): 1
HAGAÅN
Article Number405.355.14- Width: 43 cm
- Height: 9 cm
- Length: 51 cm
- Weight: 8.59 kg
- Package(s): 1
TOLKEN
Article Number803.546.86- Width: 50 cm
- Height: 3 cm
- Length: 114 cm
- Weight: 7.79 kg
- Package(s): 1
