ÄLMAREN Kitchen mixer tap w pull-out spout, stainless steel colour
How to get it
10 year guarantee
ÄLMAREN tap in stainless steel helps lower water- and energy-use – so you can lower your bills too. The high, pull-out spout is handy for rinsing dirty plates and the quality is guaranteed to outlast many years of washing.
Delivery costs or service costs for Click & Collect and collection from a pick-up pointProduct description
10 year guarantee. Read about the terms in the guarantee brochure.
Rinsing dishes is easier with the pull-out spout.
A counterweight makes the hose easily retract back into the kitchen mixer tap.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
Equipped with check valve to prevent back flow.
Brickstad/Palleschitz/Petersén
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.
Water and energy saving aerator (8 l/min.) for high-pressure systems included.
Connection hoses with dia. 10 mm (3/8") connection included. Connection length: 35 cm.
A tool is included that makes it easy to install the mixer tap in place.
Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
The spout can be pulled out approx. 30 cm.
Swivel spout is preset to 120° but can be changed to 90°.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
Zinc, Metallized
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
Safety and compliance
Assembly and documents
Assembly instructions
ÄLMAREN Kitchen mixer tap w pull-out spout505.073.89Advice and care instructions
ÄLMAREN Kitchen mixer tap w pull-out spout505.073.89TECHNICAL INFORMATION
ÄLMAREN
Kitchen mixer tap w pull-out spout, stainless steel colour
Article Number505.073.89| Brand Name | IKEA |
| Type of tap | Kitchen mixer tap with pull-out spout |
| Max. flow rate at 3 bar | 8.0 l/min |
| Annual energy consumption | 698 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | SVGW |

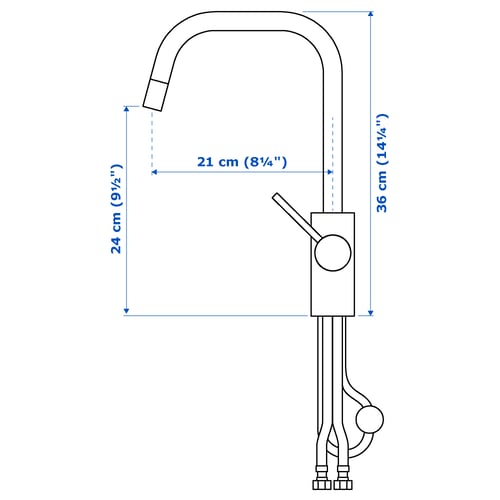

Measurements and packaging
- Height: 36 cm
Packaging
ÄLMAREN
Article Number505.073.89- Width: 29 cm
- Height: 7 cm
- Length: 55 cm
- Weight: 2.94 kg
- Package(s): 1
