ÄLMAREN Kitchen mixer tap, stainless steel colour
How to get it
10 year guarantee
ÄLMAREN tap in stainless steel helps lower water- and energy-use – so you can lower your bills too. The high spout is practical for cleaning big pots and the quality is guaranteed to outlast many years of washing and rinsing.
Delivery costs or service costs for Click & Collect and collection from a pick-up pointProduct description
10 year guarantee. Read about the terms in the guarantee brochure.

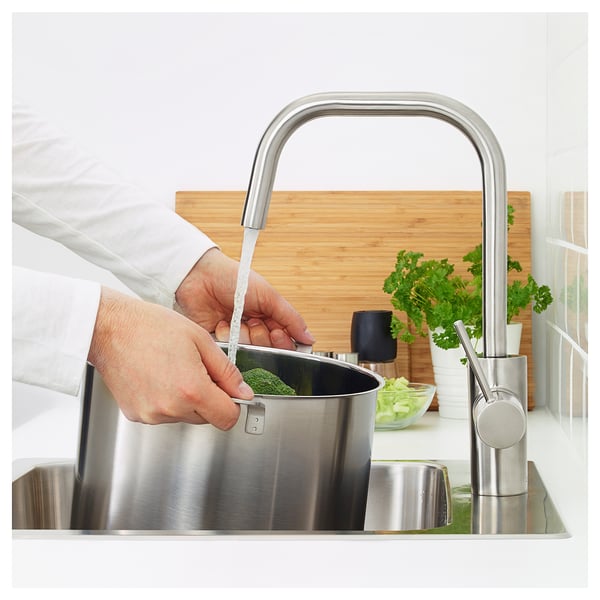

The high spout makes it easier to wash dishes, including large pots.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
Brickstad/Palleschitz/Petersén
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.
To make a hole for the kitchen mixer tap FIXA 2-piece tool set can be recommended; sold separately.
Water and energy saving aerator (8 l/min.) for high-pressure systems included.
Connection hoses with dia. 10 mm (3/8") connection included. Connection length: 35 cm.
A tool is included that makes it easy to install the mixer tap in place.
Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Swivel spout is preset to 360° but can be changed to 120°.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
- Spout:
- Brass, Metallized
- Body:
- Zinc, Metallized
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
Safety and compliance
Assembly and documents
Assembly instructions
ÄLMAREN Kitchen mixer tap105.073.05Advice and care instructions
ÄLMAREN Kitchen mixer tap105.073.05TECHNICAL INFORMATION
ÄLMAREN
Kitchen mixer tap, stainless steel colour
Article Number105.073.05| Brand Name | IKEA |
| Type of tap | Kitchen mixer tap |
| Max. flow rate at 3 bar | 8.0 l/min |
| Annual energy consumption | 698 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 3/8" (R10) |
| Swivel spout | Swivel spout is preset to 360° but can be changed to 120°. |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | SVGW, ETA-Danmark |

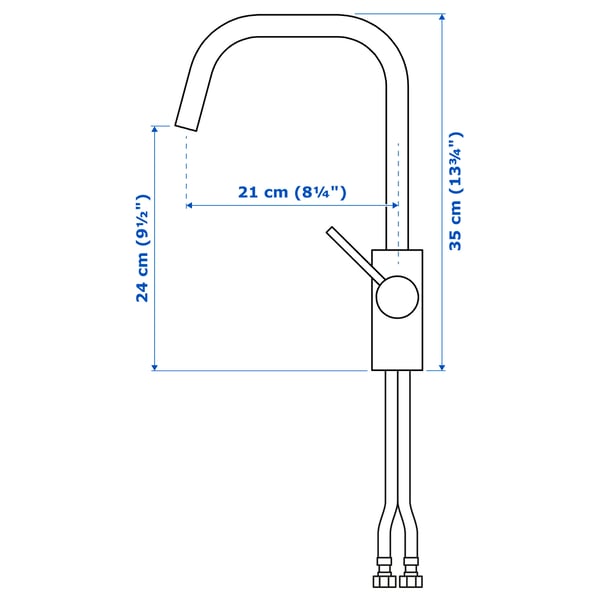

Measurements and packaging
- Length: 21 cm
- Height: 36 cm
Packaging
ÄLMAREN
Article Number105.073.05- Width: 29 cm
- Height: 6 cm
- Length: 50 cm
- Weight: 1.90 kg
- Package(s): 1
