- Brand NameIKEA
- Type of tapKitchen mixer tap with pull-out spout
- Max. flow rate at 3 bar8.0 l/min
- Annual energy consumption698 kWh/p.a.
- Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
- Min. working pressure0.5 bar (0,05MPa) (7.25 psi)
- Max. static pressure10 bar (1,0MPa) (145.0 psi)
- Max. worktop thickness50 mm (2")
- Mounting hole measurement34-37 mm (1 3/8-1 7/16")
- Connection hoses length375 mm (14 3/4")
- Hose connection sizeG 3/8" (R10)
- Swivel spout120 °
- Recommended cold water temperature10-15˚C (50-59˚F)
- Recommended hot water temperature60-65°C (140-150°F)
- Max. hot water temperature80˚C (176˚F)
- Strainer includedNo
- Third party certified according to local standards byETA-Danmark, KIWA, PZH, BELGAQUA, SINTEF, ACS
ÄLMAREN Kitchen mixer tap w pull-out spout, black
€ 129.-
How to get it
Checking availability...Available services
Collect 25 points with
It's OK to change your mind
Return within 365 days for a full refund*. Learn more
ÄLMAREN
506.034.99ÄLMAREN tap lowers your water and energy use. The high, pull-out spout also makes it easier to rinse tableware − and the quality is guaranteed to outlast many years of washing and rinsing.
Product features
10 year guarantee
- Pull-out spout
- Swivel spout 120°
- Aerator
More information
Material
Zinc, Metallized
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
Assembly instructions
ÄLMAREN Kitchen mixer tap w pull-out spout506.034.99Advice and care instructions
ÄLMAREN Kitchen mixer tap w pull-out spout506.034.99
10 year guarantee. Read about the terms in the guarantee brochure.

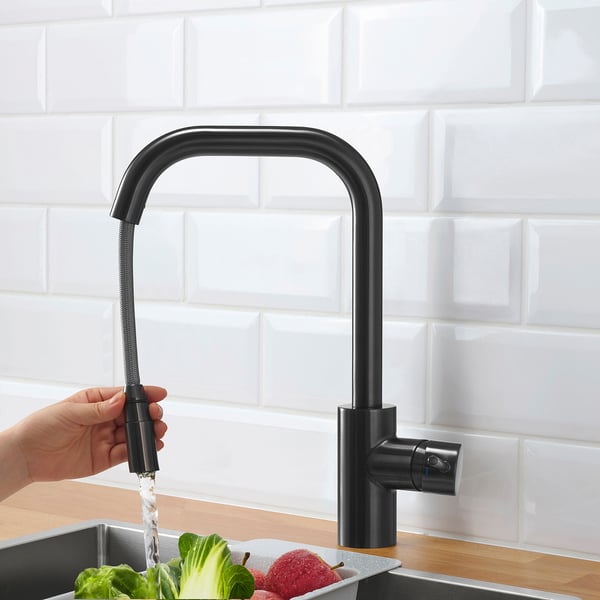

Rinsing dishes is easier with the pull-out spout.
A counterweight makes the hose easily retract back into the kitchen mixer tap.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.
Connection hoses with dia. 10 mm (3/8") connection included. Connection length: 35 cm.
A tool is included that makes it easy to install the mixer tap in place.
Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.
The spout can be pulled out approx. 30 cm.
Swivel spout is preset to 120° but can be changed to 90°.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Material
Zinc, Metallized
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
- Tested and certified to relevant European mechanical, quality, safety and hygienic standards, including KIWA.This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 1.0 – 5.0 bar (100 kPa – 500 kPa).
Assembly instructions
ÄLMAREN Kitchen mixer tap w pull-out spout506.034.99Advice and care instructions
ÄLMAREN Kitchen mixer tap w pull-out spout506.034.99
- 506.034.99
1 × ÄLMAREN
Kitchen mixer tap w pull-out spout- Width: 29 cm
- Height: 7 cm
- Length: 55 cm
- Weight: 2.97 kg
