- Brand NameIKEA
- Type of tapSingle-lever kitchen mixer tap
- Max. flow rate at 3 bar8.0 l/min
- Annual energy consumption698 kWh/p.a.
- Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
- Min. working pressure0.5 bar (0,05MPa) (7.25 psi)
- Max. static pressure10 bar (1,0MPa) (145.0 psi)
- Max. worktop thickness50 mm (2")
- Mounting hole measurement34-37 mm (1 3/8-1 7/16")
- Connection hoses length450 mm (17 3/4")
- Hose connection sizeG 3/8" (R10)
- Swivel spout360 °
- Recommended cold water temperature10-15˚C (50-59˚F)
- Recommended hot water temperature60-65°C (140-150°F)
- Max. hot water temperature80˚C (176˚F)
- Strainer includedNo
- Third party certified according to local standards bySVGW, ETA-Danmark
More from the LAGAN series

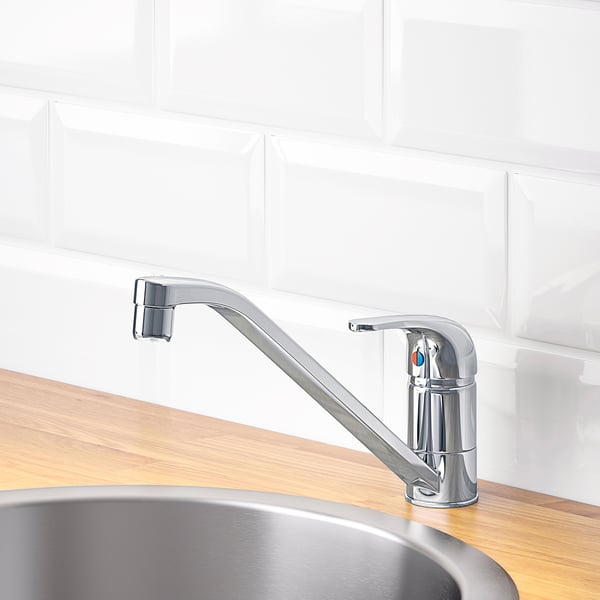

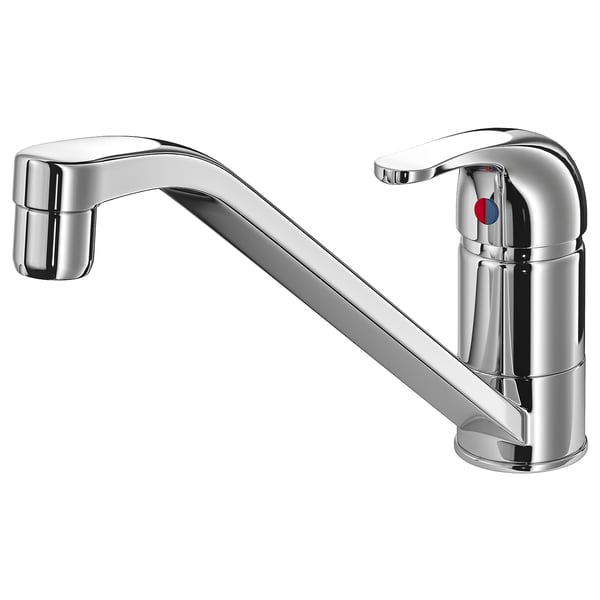

LAGAN Single-lever kitchen mixer tap, chrome-plated
Price CHF 24.95
How to get it
Checking availability...Available services
It's OK to change your mind
Return within 365 days for a full refund*. Learn more
LAGAN
705.072.1310 year guarantee. Read about the terms in the guarantee brochure.
Delivery costs or service costs for Click & Collect and collection from a pick-up pointProduct features
More information
Material
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
Assembly instructions
LAGAN Single-lever kitchen mixer tap705.072.13Advice and care instructions
LAGAN Single-lever kitchen mixer tap705.072.13
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
Chrome-plated brass is a hard and durable surface that is easy to clean.
Designer
Mikael Warnhammar
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.
Connection hoses with dia. 10 mm (3/8") connection included. Connection length: 35 cm.
A tool is included that makes it easy to install the mixer tap in place.
Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.
Spare parts are available. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Swivel spout: 360°.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Material
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
- Tested and certified according to relevant mechanical, quality and safety standards.This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 1.0 – 5.0 bar (100 kPa – 500 kPa).
Assembly instructions
LAGAN Single-lever kitchen mixer tap705.072.13Advice and care instructions
LAGAN Single-lever kitchen mixer tap705.072.13
- 705.072.13
1 × LAGAN
Single-lever kitchen mixer tap- Width: 25 cm
- Height: 5 cm
- Length: 30 cm
- Weight: 1.03 kg
