Product features
10 year guarantee
This combination includes all the parts for a complete wash-basin solution in your bathroom. Use it wall-mounted or fit it into a wash-basin cabinet.
Article Number195.467.22
Product details
10 year guarantee. Read about the terms in the guarantee brochure.
Good to know
May be fitted into a wash-basin cabinet or wall hung.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
Single wash-basin
Vitreous china, Coloured glaze
Wash-basin mixer tap
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
Water trap w flexible pipe, 1 bowl
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Care
Single wash-basin
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Wash-basin mixer tap
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Safety and compliance
The washbasin is resistant to most chemicals, except for strong acids and strong alkalis.This product bears the CE mark.
Assembly and documents
Assembly instructions
BJÖRKÅN Single wash-basin004.681.49BJÖRKÅN Single wash-basin004.681.49PILKÅN Wash-basin mixer tap505.328.50RÄNNILEN Water trap w flexible pipe, 1 bowl205.545.32Advice and care instructions
BJÖRKÅN Single wash-basin004.681.49PILKÅN Wash-basin mixer tap505.328.50PILKÅN Wash-basin mixer tap505.328.50Technical information

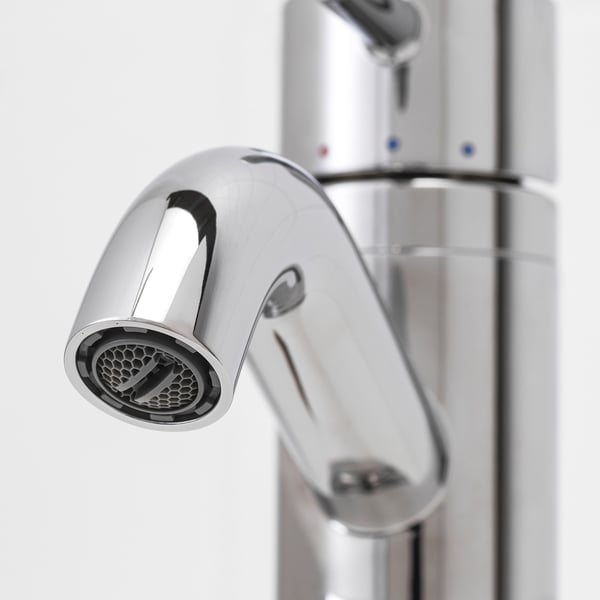

PILKÅN
Wash-basin mixer tap, chrome-plated
Article Number505.328.50| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
Measurements
- Width: 54 cm
- Depth: 40 cm
Packaging
This product comes as 3 packages.
BJÖRKÅN
Article Number004.681.49- Width: 45 cm
- Height: 19 cm
- Length: 58 cm
- Weight: 14.60 kg
- Package(s): 1
PILKÅN
Article Number505.328.50- Width: 18 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 0.90 kg
- Package(s): 1
RÄNNILEN
Article Number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 1
