Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
After cleaning, be sure to wipe dry with a soft cloth.
Remove stains and food residue after each use using a cloth damped with warm water and a mild detergent.
Assembly instructions
SMAKLIG Induction hob504.678.83
Induction hobs are extremely energy efficient, fast and precise as induction technology transfers energy directly into magnetic cookware.
Gives you the flexibility to use larger and different pots for special recipes or occasions as the bridge function allows you to connect 2 cooking zones into 1 large one when needed.
The touch and slide control panel allows you to regulate the heat easily and precisely by sliding your finger across the temperature scale or touching the desired temperature on the display.
You have excellent control when you cook since the individual timers allow you to time each zone separately.

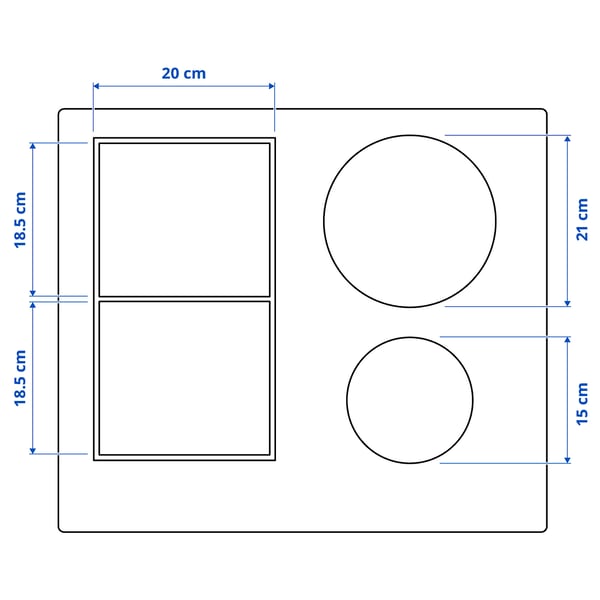

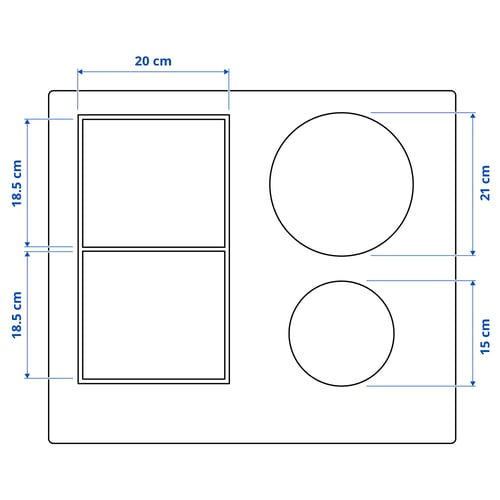

Hob with induction cooking zones:
Left front: 18,5x20 cm - 1750W, booster 2200W.
Left rear: 18,5x20 cm - 1750W booster 2200W.
Right front: 15 cm – 1200W, booster 1600W.
Right rear: 21 cm - 2100W, booster 3000W.
Voltage: 220-240V.
Current: 2x16A or 1x32A.
Connection rating: 7200W.
Number of zones: 4.
Pause.
Child lock.
Booster (4 zones).
Bridge function.
Touch and slide.
Pre-set cooking mode.

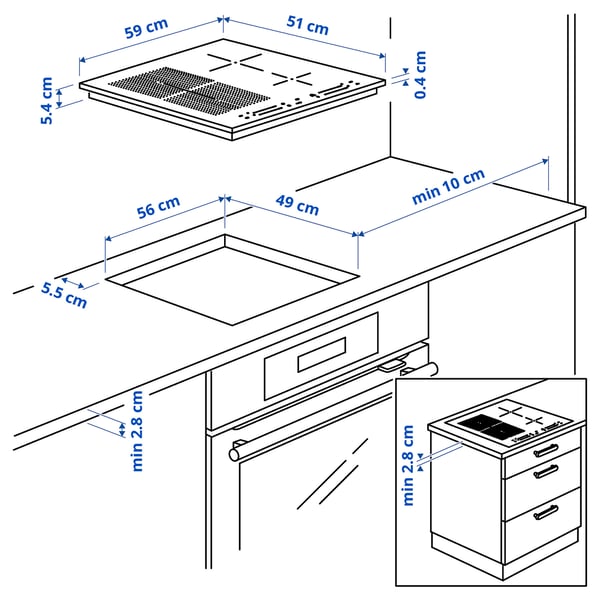

Wired-in installation. Installation to be made by a qualified installer.
When installing your hob in a base cabinet with drawers, complete with NYTTIG hob separator for drawer. The protective barrier prevents reaching the hob from below and getting burned.
Cooking zones are grouped (left or right) and connected to phases, each with a maximum power supply. When using more than one zone connected to the same phase, the hob divides the power between them.
The power setting of the last selected cooking zone is prioritised. Power to the previously activated cooking zone is reduced to match the maximum supply.
You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.
Induction hobs requires cookware with magnetic base.
The hob may produce low humming, whistling or ticking sounds. These sounds are caused by the induction technology and they are completely normal.
Cord/cable included.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
After cleaning, be sure to wipe dry with a soft cloth.
Remove stains and food residue after each use using a cloth damped with warm water and a mild detergent.
- This product bears the UK CA mark.This product bears the CE mark.This product bears the Serbian mark of conformity.
Assembly instructions
SMAKLIG Induction hob504.678.83
- 504.678.83
1 × SMAKLIG
Induction hob- Width: 60 cm
- Height: 10 cm
- Length: 65 cm
- Weight: 12.00 kg
