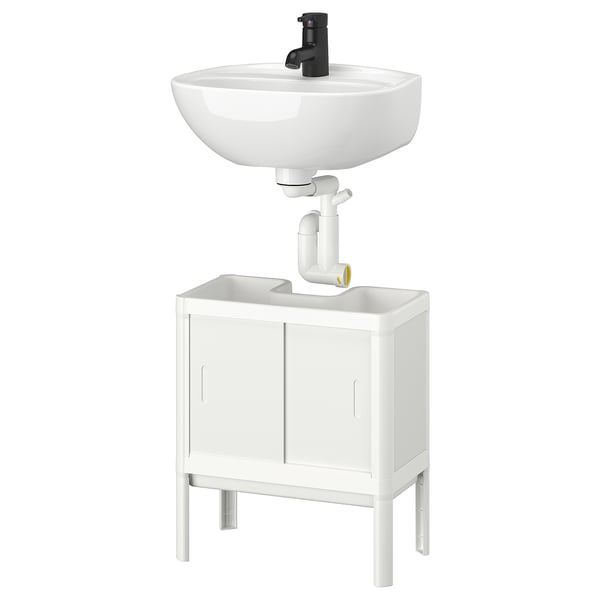

LILLTJÄRN / SKATSJÖN Wash-basin base cabinet w 2 doors, white, 45x35 cm
How to get it

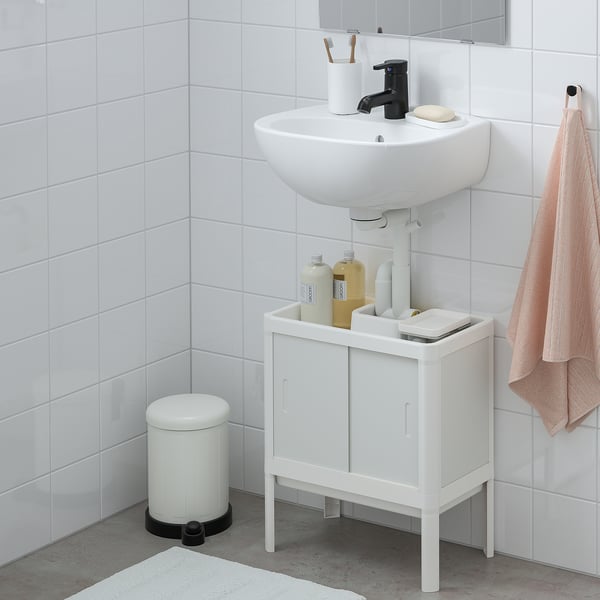

In small-size bathrooms, no space should go to waste. This wash-basin cabinet uses the space under the small rounded wash-basin for storing things like towels, toilet paper and hygiene products.
Product details
The matte surface on the bathroom cabinet creates a sense of calm.

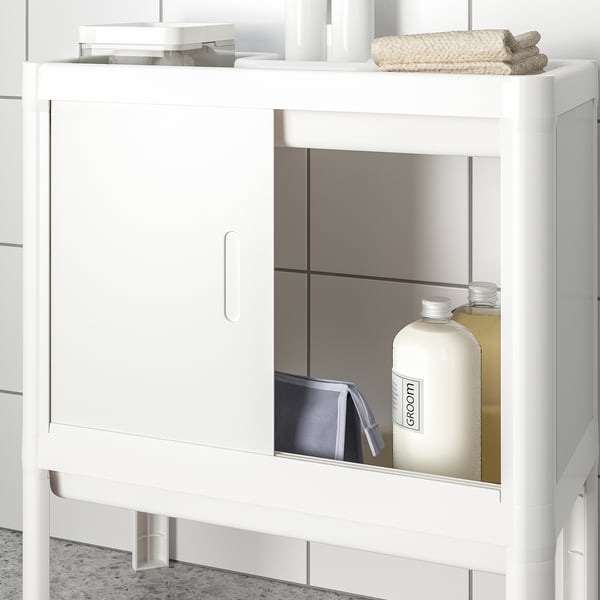

A perfect fit in smaller bathrooms. The wash-basin cabinet takes up little space, but is roomy enough to store things like bottles and towels.
You save water and energy every time you lift the lever of the mixer tap thanks to the aerator device that prevents unnecessary use of water.
No need to drill holes in the walls as the robust construction stands steady on the floor.
Useful information
Ceramic wash-basins are kiln-fired, which makes each one unique and the size may vary slightly from the measurements given.
Mixer tap and strainer are included.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
- Basematerial:
- Polypropylene plastic (min. 20% recycled)
- Door panel/ Side panel:
- ABS plastic (min. 20% recycled)
Vitreous china, Coloured glaze
ABS plastic
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Safety and compliance
Assembly and documents
Assembly instructions
LILLTJÄRN Wash-basin base cabinet w 2 doors805.003.67SKATSJÖN Single wash-basin705.042.57SKATSJÖN Single wash-basin705.042.57SALJEN Wash-basin mixer tap403.854.92SALJEN Wash-basin mixer tap403.854.92SALJEN Wash-basin mixer tap403.854.92SALJEN Wash-basin mixer tap403.854.92RÄNNILEN Water trap w flexible pipe, 1 bowl205.545.32RÄNNILEN Water trap w flexible pipe, 1 bowl205.545.32Technical information

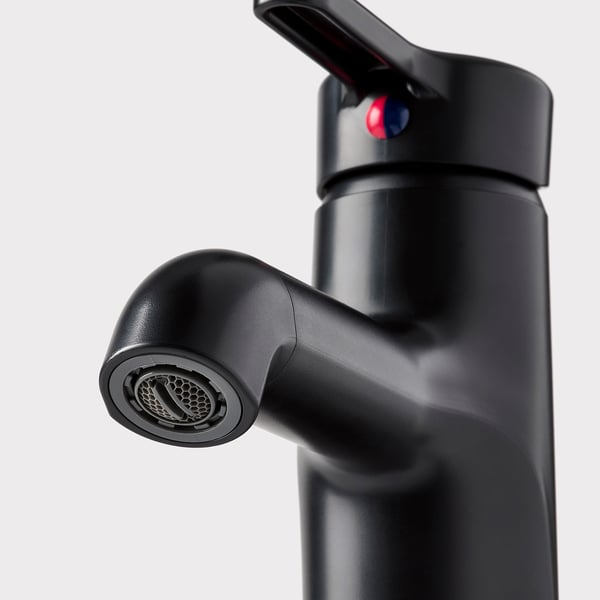

SALJEN
Wash-basin mixer tap, black
Article number403.854.92| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | DVGW, ETA-Danmark, KIWA, PZH, BELGAQUA, ACS, SINTEF |
Measurements
- Depth: 35 cm
- Width: 45 cm
Packaging
LILLTJÄRN
Article number805.003.67- Width: 25 cm
- Height: 12 cm
- Length: 44 cm
- Weight: 1.73 kg
- Package(s): 1
SKATSJÖN
Article number705.042.57- Width: 38 cm
- Height: 22 cm
- Length: 47 cm
- Weight: 12.50 kg
- Package(s): 1
SALJEN
Article number403.854.92- Width: 22 cm
- Height: 6 cm
- Length: 26 cm
- Weight: 0.48 kg
- Package(s): 1
RÄNNILEN
Article number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 1
