- Brand NameIKEA
- Type of tapKitchen mixer tap
- Max. flow rate at 3 bar8.0 l/min
- Annual energy consumption698 kWh/p.a.
- Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
- Min. working pressure0.5 bar (0,05MPa) (7.25 psi)
- Max. static pressure10 bar (1,0MPa) (145.0 psi)
- Max. worktop thickness50 mm (2")
- Mounting hole measurement34-37 mm (1 3/8-1 7/16")
- Connection hoses length450 mm (17 3/4")
- Hose connection sizeG 3/8" (R10)
- Swivel spout360 °
- Recommended cold water temperature10-15˚C (50-59˚F)
- Recommended hot water temperature60-65°C (140-150°F)
- Max. hot water temperature80˚C (176˚F)
- Strainer includedNo
- Third party certified according to local standards byETA-Danmark, KIWA, PZH, BELGAQUA, SINTEF, ACS
How to get it
Checking availability...Available services
You can change your mind
Our products come with a 365-day return policy*. Learn more
JUTTERN
504.280.7110 year guarantee. Read about the terms in the guarantee brochure.
Product features
10 year guarantee
More information
Material
- Body:
- Brass, Chrome-plated
- Spout:
- Chrome-plated, Stainless steel
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
Assembly instructions
JUTTERN Kitchen mixer tap, foldable504.280.71JUTTERN Kitchen mixer tap, foldable504.280.71Advice and care instructions
JUTTERN Kitchen mixer tap, foldable504.280.71

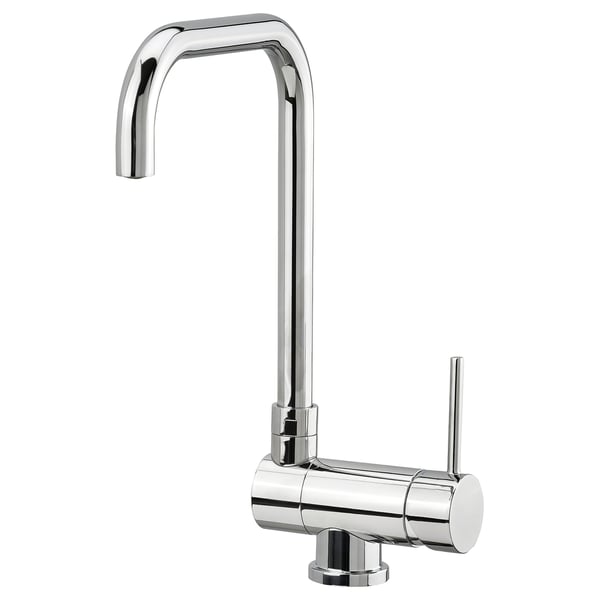

JUTTERN Kitchen mixer tap, foldable, chrome-plated

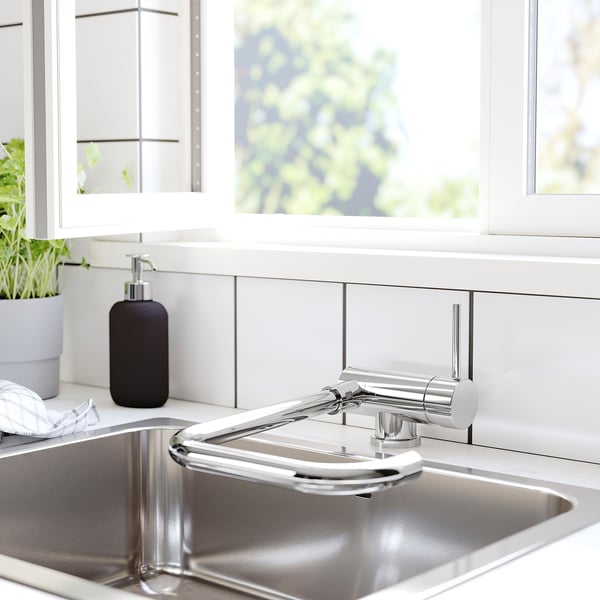

The tap conveniently folds down so that it doesn’t get in the way of inward-opening kitchen windows.
The high spout makes it easier to wash dishes, including large pots.
Chrome-plated brass is a hard and durable surface that is easy to clean.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
Designer
IKEA of Sweden
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.
Connection hoses with 3/8" connection included. Connection length: 50 cm.
A tool is included that makes it easy to install the mixer tap in place.
Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Material
- Body:
- Brass, Chrome-plated
- Spout:
- Chrome-plated, Stainless steel
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
- This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 1.0 – 5.0 bar (100 kPa – 500 kPa).Tested and certified according to relevant mechanical, quality and safety standards.
Assembly instructions
JUTTERN Kitchen mixer tap, foldable504.280.71JUTTERN Kitchen mixer tap, foldable504.280.71Advice and care instructions
JUTTERN Kitchen mixer tap, foldable504.280.71
- 504.280.71
1 × JUTTERN

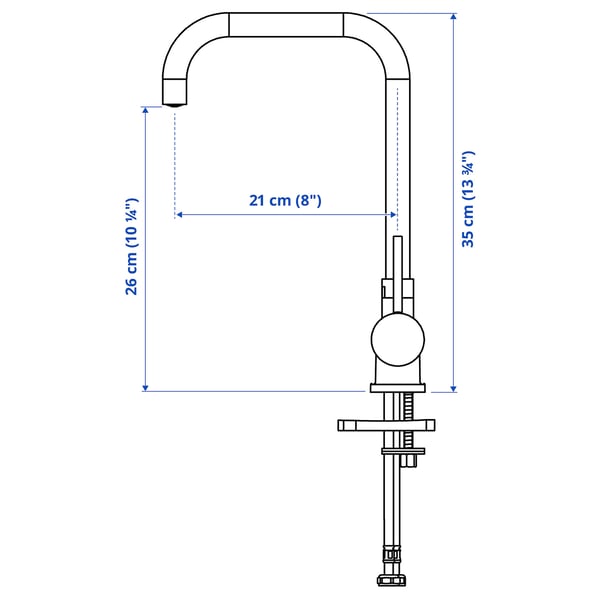

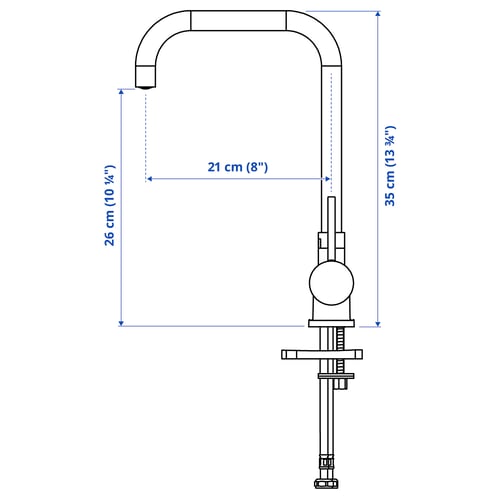

Kitchen mixer tap, foldable- Width: 34 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 2.45 kg
