HAVBÄCK / ORRSJÖN Wash-stnd w drawers/wash-basin/tap, dark grey, 102x49x69 cm
Complete with
How to get it
10 year guarantee
HAVBÄCK bathroom furniture has a clean, straightforward design that is easy to personalise with knobs or handles. This combo has 2 spacious drawers and room on the wash-basin for toothbrush and soap.
Product details

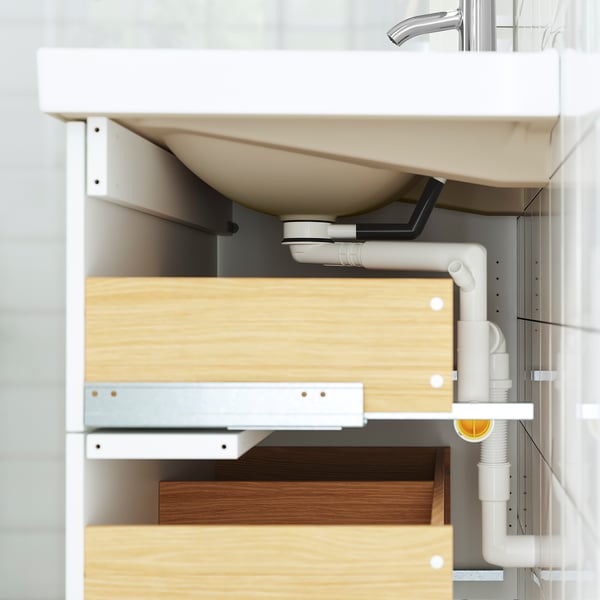

Generous, full drawer storage capacity for all your essentials as piping is led through the back and not via a cut-out in the drawers. Drawers open all the way for a good overview.
Uncomplicated design matched with a matt dark grey finish gives your bathroom a confident expression and a warm sense of calm that is easy to personalise with your choice of knobs or handles.
The ceramic wash-basin with its soft shapes and durable surface is made with the best materials and will outlast many years of wear and tear.
Add knobs or handles to create the spot-on solution for your style and taste. Sold separately.
This cabinet is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
Combine with other cabinets in the HAVBÄCK series to create a coordinated bathroom solution that fits your space and needs.
10 year guarantee. Read about the terms in the guarantee brochure.
Good to know
Comprises: 1 wash-stand with drawers, 1 integrated wash-basin, 1 water trap and 1 mixer tap.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
Knobs and handles are sold separately.
Materials and care
Material
- Frame/ Middle rail/ Drawer front/ Drawer sides/ Drawer divider:
- Particleboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Top rail:
- Fibreboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Drawer back:
- Particleboard, Plastic foil
- Drawer bottom:
- Fibreboard, Plastic foil
- Cover/ Spring:
- Stainless steel
- Cover cap/ Mechanism:
- Acetal plastic
- Sealing ring:
- Synthetic rubber
- Cover cap:
- Polycarbonate/ABS plastic
- Basematerial:
- Ceramics, Coloured glaze
- Zinc, Metallized
- Water trap frame/ Nut/ Outlet pipe/ Waste pipe:
- Polypropylene plastic
- Washer/ Seals:
- Synthetic rubber
- Strainer:
- Stainless steel
- Assembly tool:
- ABS plastic
Care
Wipe clean with a mild soapy solution.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe dry with a clean cloth.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Safety and compliance
Assembly and documents
Assembly instructions
HAVBÄCK Wash-stand with drawers905.352.29ORRSJÖN Wash-basin605.450.79LUNDSKÄR Wash-basin mixer tap205.326.15RÄNNILEN Water trap, 1 bowl304.224.14Advice and care instructions
LUNDSKÄR Wash-basin mixer tap205.326.15Technical Information
LUNDSKÄR
Wash-basin mixer tap, black
Article Number205.326.15| Type of tap | Wash-basin mixer tap |
| WELS rating | 6 stars |
| WELS registration number | T35479 |
| Max. flow rate at 3 bar | 3.5 l/min (1.2 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 1/2" (R15) " |
| Swivel spout | 360 ° |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | Yes |
| Noise level | I |
| Third party certified according to local standards by | IAPMO |

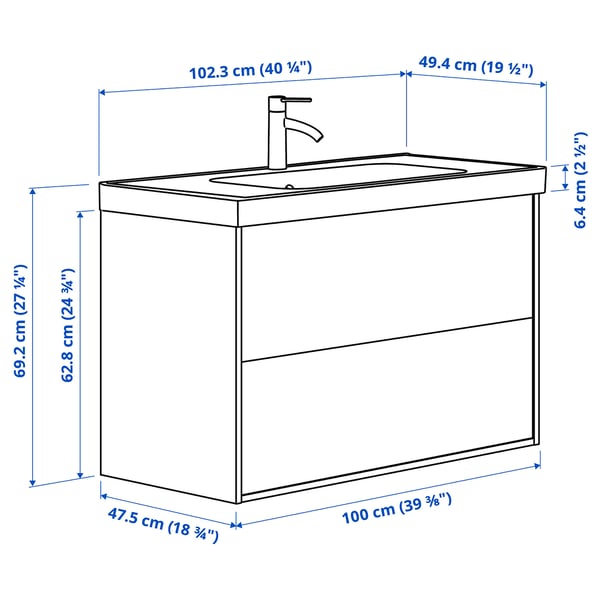

Measurements
- Width: 102.3 cm
- Depth: 49.4 cm
- Height: 69.2 cm
- Drawer front, thickness: 16 mm
Packaging
HAVBÄCK
Article Number905.352.29- Width: 48 cm
- Height: 8 cm
- Length: 114 cm
- Weight: 20.00 kg
- Package(s): 1
- Width: 50 cm
- Height: 7 cm
- Length: 104 cm
- Weight: 16.90 kg
- Package(s): 1
ORRSJÖN
Article Number605.450.79- Width: 55 cm
- Height: 18 cm
- Length: 106 cm
- Weight: 28.56 kg
- Package(s): 1
LUNDSKÄR
Article Number205.326.15- Width: 20 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 1.67 kg
- Package(s): 1
RÄNNILEN
Article Number304.224.14- Width: 27 cm
- Height: 8 cm
- Length: 44 cm
- Weight: 0.39 kg
- Package(s): 1
