UTDRAG Built-in extractor hood, stainless steel, 60 cm
Must be completed with
How to get it
5 year guarantee

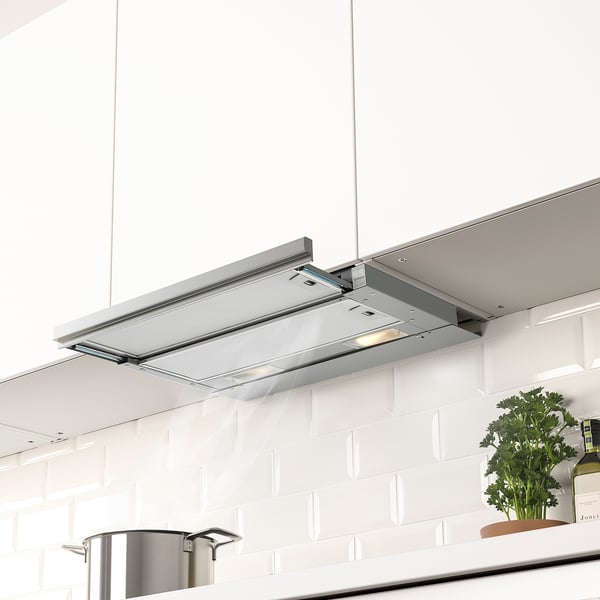

Prefer a hidden hood? UTDRAG built-in extractor hood with LED lighting is mounted almost invisibly in a wall cabinet. You start it and adjust the extraction area by pulling out the hood’s lower part.
Product details
5 year guarantee. Read about the terms in the guarantee brochure.
Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.
3 speed settings allow you to increase or decrease the hood’s power at the push of a button, depending on your cooking needs.
LED light source included; effectively illuminates the cooking surface and provide energy saving.
Pulls out to provide a larger exhaust area.

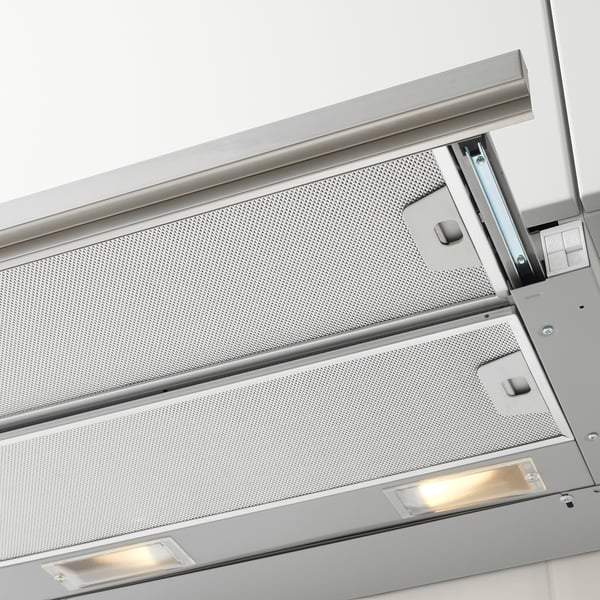

You can easily remove and clean the grease filter in the dishwasher.
IKEA of Sweden
Good to know
Extraction rate in exhausting mode: 340 m³/h.
Noise level at max. exhaust speed: 67 dB (A).
Extraction rate in re-circulation mode: 140 m³/h.
Noise level at max. re-circulation speed: 72 dB (A).
Voltage: 220-230V.

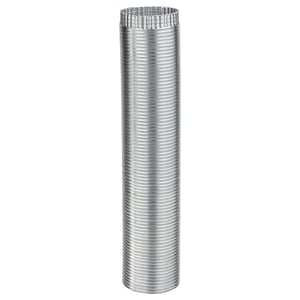

For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.
For recirculation installation: to be completed with NYTTIG TUB 150 flexible pipe and NYTTIG FIL 120 charcoal filter.
You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.
Built in extractor hood with 3 different speeds.
Power supply cable with plug included.
Materials and care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Assembly and documents
Assembly instructions
UTDRAG Built-in extractor hood305.089.69UTDRAG Built-in extractor hood305.089.69Compliance
HW07114-21038A, R-R-ood-LAGAN10509328
Please refer to product description or image
Please refer to Packaging tab
Please refer to Product size tab
Please refer to Packaging tab
Please refer to Materials & care tab
FRANKE MUTFAK VE BANYO SiSTEMLERi SANAYi TiCARET ANONiM SiRKETi
ITALY
IKEA KOREA
Please refer to IKEA Services page
Quality assurance is provided according to IKEA quality assurance policy
IKEA Korea/ 1670-4532
1/1/2022
Please refer to Product details tab
220V, 60Hz, 118W
Manufactured Date : Refer to product package surface e.g) 1246=12(YY)46(WW)

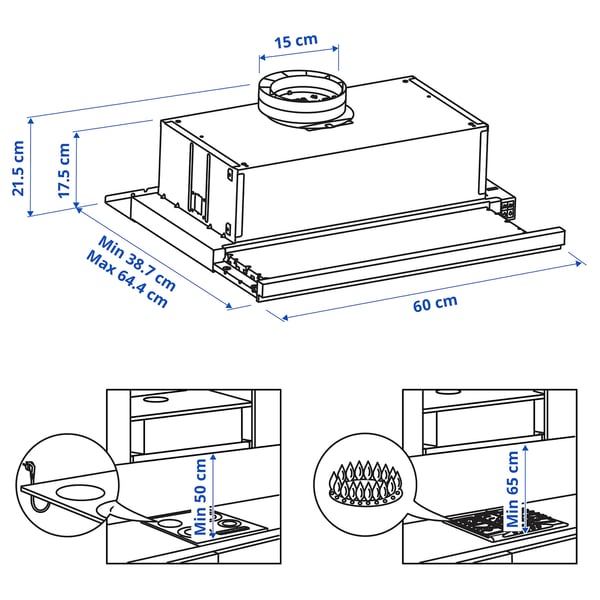

Measurements
- Width: 60.0 cm
- Min. depth: 38.7 cm
- Max. depth: 64.4 cm
- Height: 21.5 cm
- Weight: 9.00 kg
- Cord length: 109.0 cm
- Motor power: 110 W
Packaging
UTDRAG
Article Number305.089.69- Width: 38 cm
- Height: 27 cm
- Length: 68 cm
- Weight: 8.60 kg
- Package(s): 1
Related products
Recommended for you
Quality/durability
Sensitive to noise or have an open-plan home?
For extractor hoods, a noise level below 60 dB is considered low – roughly equivalent to a normal conversation between two people. We measure the noise level of our hoods at max speed, making it easier to compare different models. Note that sound levels decrease at lower speeds, and recirculating hoods are typically louder than those vented outdoors. Noise may also increase if the ducting is long or has several bends, as the air has to work harder to pass through the system.
Function solution
Sound levels
Sound levels for appliances are measured in decibels (dBs). Our extractor hoods have been tested in speed 3 to determine the dB level. The sound level of your extractor hood is affected by: • Type of installation. Exhaust-mode or recirculation-mode. • Length and diameter of the exhaust pipe between extractor and exhaust vent. The longer it is and the smaller the diameter, the louder it gets. • 90° bends. The more bends you have in the exhaust pipe, the greater the sound.
