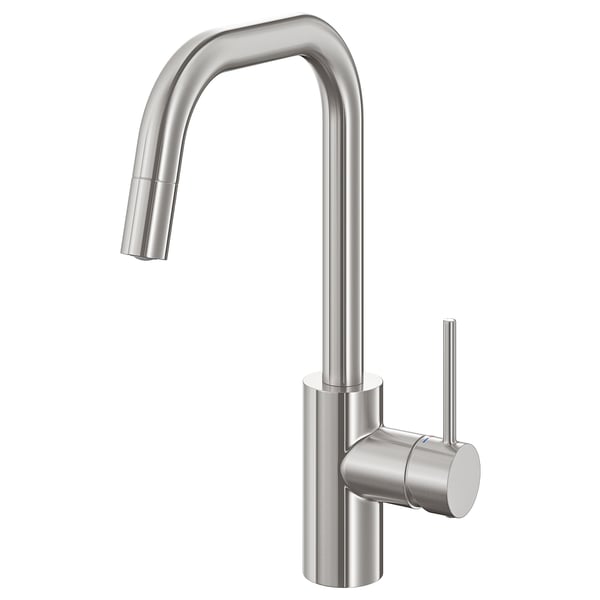

ÄLMAREN Kitchen mixer tap w pull-out spout, stainless steel colour
Bestseller
ÄLMAREN Kitchen mixer tap w pull-out spout, stainless steel colour
ÄLMAREN Kitchen mixer tap w pull-out spout, stainless steel colour
ÄLMAREN Kitchen mixer tap w pull-out spout, stainless steel colour
ÄLMAREN Kitchen mixer tap w pull-out spout, stainless steel colour

ÄLMAREN Kitchen mixer tap w pull-out spout, stainless steel colour

Price ￦ 200000
(601)

How to get it

  • 10 year guarantee

ÄLMAREN tap in stainless steel helps lower water- and energy-use – so you can lower your bills too. The high, pull-out spout is handy for rinsing dirty plates and the quality is guaranteed to outlast many years of washing.

Article Number505.670.00

Product details

10 year guarantee. Read about the terms in the guarantee brochure.

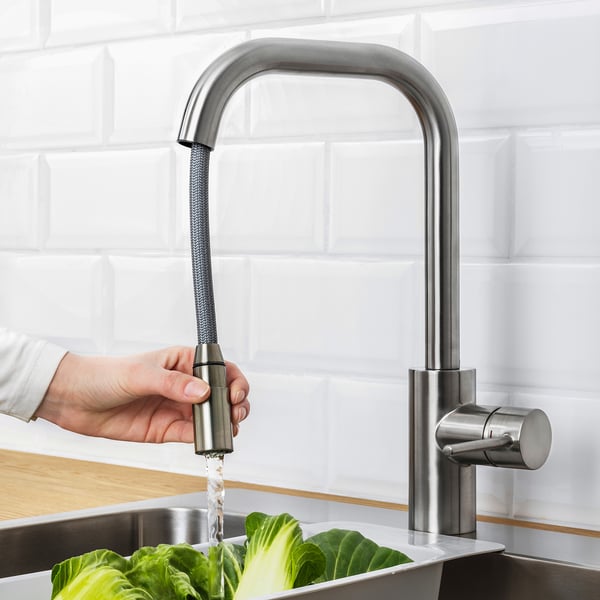

Rinsing dishes is easier with the pull-out spout.

A counterweight makes the hose easily retract back into the kitchen mixer tap.

The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.

Equipped with check valve to prevent back flow.

Designer

Brickstad/Palleschitz/Petersén

  • If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.

    To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.

    Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.

    Connection hoses with 1/2" connection included. Connection length: 50 cm.

    A tool is included that makes it easy to install the mixer tap in place.

    Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.

    Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.

    The spout can be pulled out approx. 30 cm.

    Swivel spout is preset to 120° but can be changed to 90°.

  • Material

    Zinc, Metallized

    Care

    Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.

    Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.

    Wipe dry with a clean cloth.

  • Tested and certified to relevant national and international mechanical, quality, safety and hygienic standards.This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 1.0 – 5.0 bar (100 kPa – 500 kPa).

  • Assembly instructions

    ÄLMAREN Kitchen mixer tap w pull-out spout505.670.00

    Advice and care instructions

    ÄLMAREN Kitchen mixer tap w pull-out spout505.670.00
  • Certification

    KCW-2014-0165

    Colour

    Please refer to product description or image

    Components

    Please refer to Packaging tab

    Size

    Please refer to Product size tab

    Weight

    Please refer to Packaging tab

    Material

    Please refer to Materials & care tab

    Manufacturer

    Xiamen Lota International Co., Ltd.

    Country Of Manufacture

    CHINA

    Importer

    IKEA KOREA

    Shipping And Installation Costs

    Please refer to IKEA Services page

    Warranty Information

    Quality assurance is provided according to IKEA quality assurance policy

    Exchange & Return Service

    IKEA Korea/ 1670-4532

    Launch Date Of Same Model

    10/1/2023

    User Instruction

    Please refer to Product details tab

    Food Sanitation Act Import Declaration

    Manufacture Date

    Manufactured Date : Refer to product package surface e.g) 1246=12(YY)46(WW)

TECHNICAL INFORMATION

ÄLMAREN

Kitchen mixer tap w pull-out spout, stainless steel colour

Article Number505.670.00
Type of tapKitchen mixer tap with pull-out spout
WELS rating1: Q ≤5 l/min
Max. flow rate at 3 bar5.7 l/min (1.5 gpm)
Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
Min. working pressure0.5 bar (0,05MPa) (7.25 psi)
Max. static pressure10 bar (1,0MPa) (145.0 psi)
Max. worktop thickness50 mm (2")
Mounting hole measurement34-37 mm (1 3/8-1 7/16")
Connection hoses length525 mm (20 3/4")
Hose connection sizeG 1/2" (R15) "
Swivel spout120 °
Recommended cold water temperature10-15˚C (50-59˚F)
Recommended hot water temperature60-65°C (140-150°F)
Max. hot water temperature80˚C (176˚F)
Strainer includedNo
Third party certified according to local standards byKC

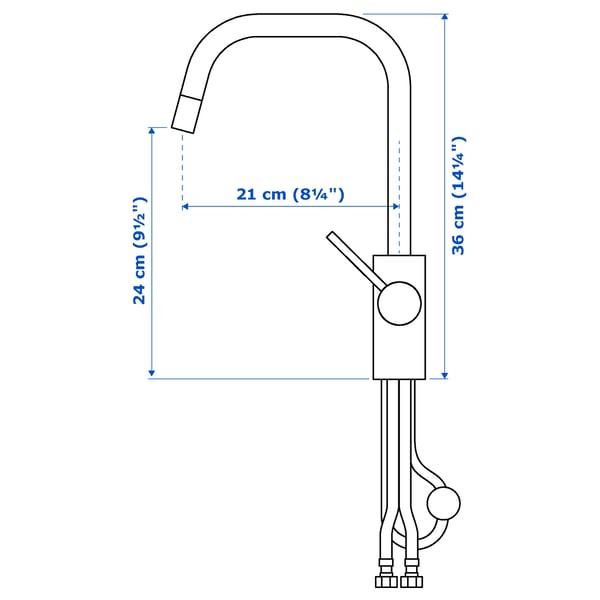

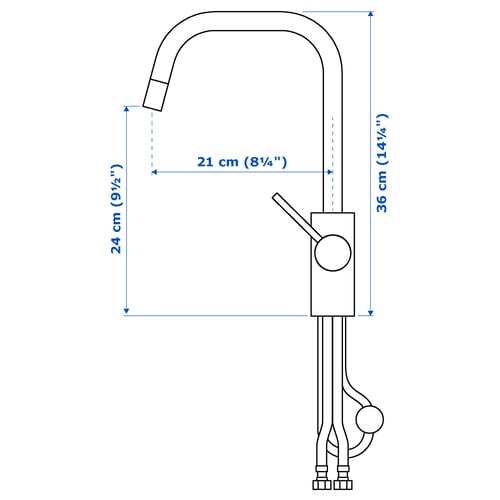

Measurements

  • Height: 36 cm

  • ÄLMAREN

    Article Number505.670.00
    • Width: 29 cm
    • Height: 7 cm
    • Length: 55 cm
    • Weight: 2.96 kg
    • Package(s): 1
