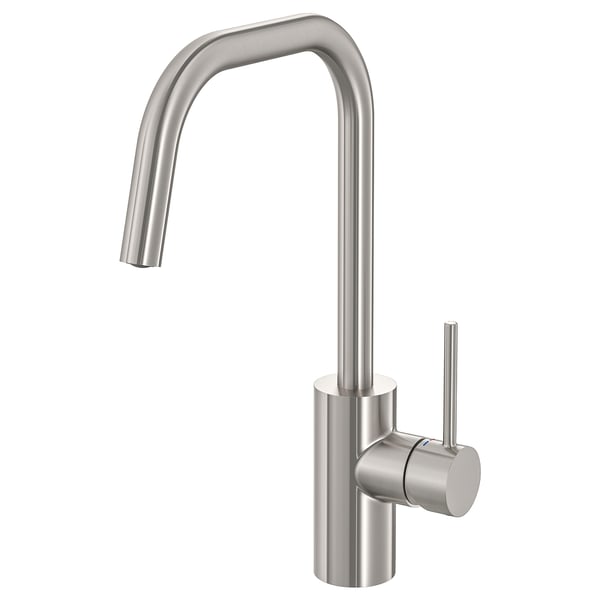

ÄLMAREN Kitchen mixer tap, stainless steel colour
How to get it
10 year guarantee
ÄLMAREN tap in stainless steel helps lower water- and energy-use – so you can lower your bills too. The high spout is practical for cleaning big pots and the quality is guaranteed to outlast many years of washing and rinsing.
Product details
10 year guarantee. Read about the terms in the guarantee brochure.
The high spout makes it easier to wash dishes, including large pots.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
Brickstad/Palleschitz/Petersén
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.
Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.
Connection hoses with 1/2" connection included. Connection length: 50 cm.
A tool is included that makes it easy to install the mixer tap in place.
Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Swivel spout is preset to 360° but can be changed to 120°.
Materials and care
Material
Zinc, Metallized
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
Safety and compliance
Assembly and documents
Assembly instructions
ÄLMAREN Kitchen mixer tap305.670.01Advice and care instructions
ÄLMAREN Kitchen mixer tap305.670.01Compliance
KCW-2014-0165
Please refer to product description or image
Please refer to Packaging tab
Please refer to Product size tab
Please refer to Packaging tab
Please refer to Materials & care tab
Xiamen Lota International Co., Ltd.
CHINA
IKEA KOREA
Please refer to IKEA Services page
Quality assurance is provided according to IKEA quality assurance policy
IKEA Korea/ 1670-4532
10/1/2023
Please refer to Product details tab
Manufactured Date : Refer to product package surface e.g) 1246=12(YY)46(WW)
TECHNICAL INFORMATION
ÄLMAREN
Kitchen mixer tap, stainless steel colour
Article Number305.670.01| Type of tap | Kitchen mixer tap |
| WELS rating | 1: Q ≤5 l/min |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 550 mm (21 3/4") |
| Hose connection size | G 1/2" (R15) " |
| Swivel spout | Swivel spout is preset to 360° but can be changed to 120°. |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | KC |

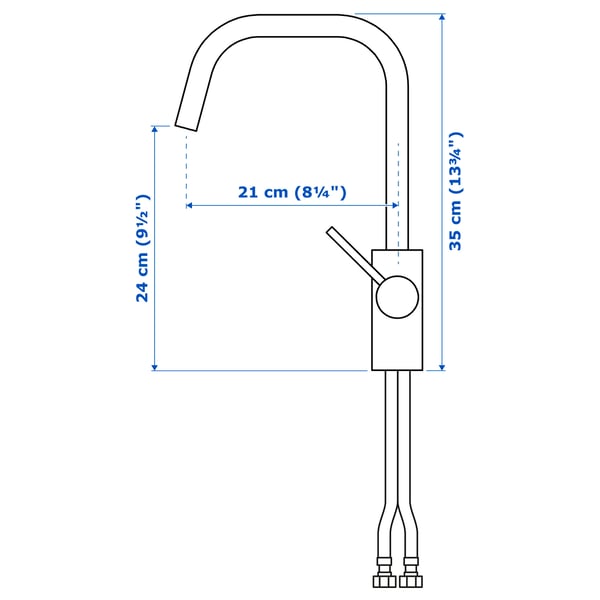

Measurements
- Height: 36 cm
Packaging
ÄLMAREN
Article Number305.670.01- Width: 29 cm
- Height: 6 cm
- Length: 50 cm
- Weight: 1.99 kg
- Package(s): 1
