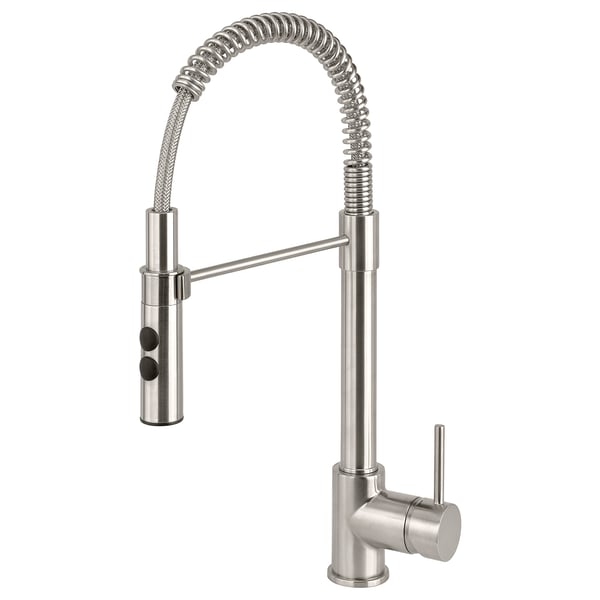

VIMMERN Kitchen faucet with handspray, stainless steel color
How to get it
10 year limited warranty
VIMMERN modern faucet in stainless steel helps lower water- and energy-use – so you can lower your bills too. The handspray is practical for cleaning veggies and the quality is guaranteed to outlast many years of washing and rinsing.
Product details
10-year Limited Warranty. Read about the terms in the Limited Warranty brochure.
The faucet insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
The faucet functions two ways, so you can switch between a concentrated stream and hand shower just by pushing the buttons on the handle.
The handle holder is magnetic making it very easy to detach and attach the hand spray with only one hand. Washing and rinsing becomes very flexible and convenient.
Equipped with check valve to prevent back flow.
IKEA of Sweden
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 1⅜" hole in a max. 2" thick sink/countertop.
Water and energy saving aerator (1.5 gal/min.) for high-pressure systems included.
Connection hoses with 9/16" connection included. Length: 13¾".
A tool is included that makes it easy to install the faucet in place.
Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Swivel spout is present to 360° but can be changed to 90° or 120°.
Materials and care
Material
- Body:
- Zinc, Metallized
- Inner body:
- Reinforced polyamide
- Spout:
- Stainless steel, Metallized
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened with water and a mild dish detergent or soap, if necessary.
Wipe dry with a clean cloth.
Safety and compliance
Assembly and documents
Assembly instructions
VIMMERN Kitchen faucet with handspray405.199.48Advice and care instructions
VIMMERN Kitchen faucet with handspray405.199.48TECHNICAL INFORMATION
VIMMERN
Kitchen faucet with handspray, stainless steel color
Article Number405.199.48| Type of faucet | Kitchen faucet/handspray |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 525 mm (20 3/4") |
| Hose connection size | 9/16" x 24UNEF |
| Swivel spout | Swivel spout is preset to 360° but can be changed to 120°. |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | IAPMO |
Measurements
- Height: 47 cm (18 1/2 ")
Packaging
VIMMERN
Article Number405.199.48- Width: 29 cm (11 ¼ ")
- Height: 6 cm (2 ¼ ")
- Length: 53 cm (20 ¾ ")
- Weight: 2.33 kg (5 lb 2 oz)
- Package(s): 1
