TOLLSJÖN Kitchen faucet with handspray, black polished metal
How to get it
10 year limited warranty
TOLLSJÖN faucet in black helps lower water- and energy-use – so you can lower your bills too. The handspray is practical for cleaning veggies and the quality is guaranteed to outlast many years of washing and rinsing.
Product details
10-year Limited Warranty. Read about the terms in the Limited Warranty brochure.
The faucet insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
The tap functions two ways, so you can switch between a concentrated stream and a shower function.
Washing and rinsing are easier thanks to the detachable hand sprayer.
Equipped with check valve to prevent back flow.
Brickstad/Palleschitz/Petersén
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 1⅜" hole in a max. 2" thick sink/countertop.
To have sufficient room to use the handspray there must be at least 21⅝" of space between your countertop and wall cabinet.
A tool is included that makes it easy to install the faucet in place.
Water and energy saving aerator (1.5 gal/min.) for high-pressure systems included.
Connection hoses with 9/16" connection included. Length: 13¾".
Max. temperature hot water system 176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Flow rate: 1.2 gal./min. (4.5 l/min.)
Materials and care
Material
- Spout:
- Metallized, Brass
- Body:
- Brass, Metallized
Care
Wipe clean with a soft cloth dampened with water and a mild dish detergent or soap, if necessary.
Wipe clean with a dry cloth.
Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
Safety and compliance
Assembly and documents
Assembly instructions
TOLLSJÖN Kitchen faucet with handspray403.416.91Advice and care instructions
TOLLSJÖN Kitchen faucet with handspray403.416.91TECHNICAL INFORMATION
TOLLSJÖN
Kitchen faucet with handspray, black polished metal
Article Number403.416.91| Type of faucet | Kitchen faucet/sep handspray |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 350 mm (13 3/4") |
| Hose connection size | 9/16" x 24UNEF |
| Swivel spout | Swivel spout is preset to 360° but can be changed to 120°. |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | IAPMO |

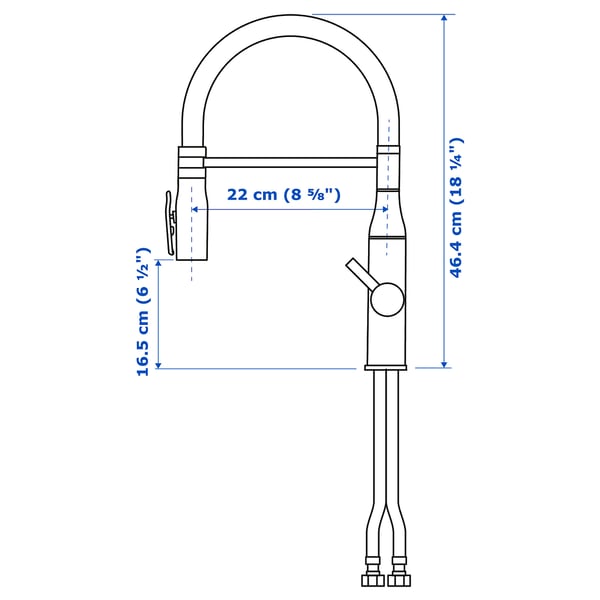

Measurements
- Length: 22 cm (8 ¾ ")
- Height: 46 cm (18 ")
Packaging
TOLLSJÖN
Article Number403.416.91- Width: 29 cm (11 ¼ ")
- Height: 6 cm (2 ¼ ")
- Length: 53 cm (21 ")
- Weight: 3.09 kg (6 lb 13 oz)
- Package(s): 1
Ratings and reviews
Customer reviews
#IKEAInspo at Home
Material
What is brass?
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA, we use brass for things like knobs, handles, frames and taps.
