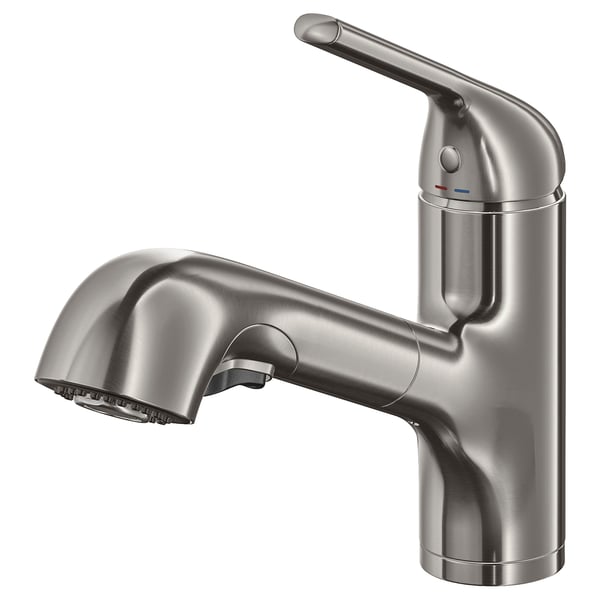

MACKSJÖN Kitchen faucet pull out w spray, stainless steel color
How to get it
10 year limited warranty
- Pull-out spout
- Swivel spout 120°
- Shower-spray
- Aerator
Ergonomically designed two-function spray head for comfortable grip.
Product details
Dual-function spray head switches between aerated stream and full spray.
Flexible hose allows for easy movement, pivoting and reaching every corner of the sink.
Premium spout hose for high reliability and outstanding performance.
Smooth and fast spout hose retraction thanks to a snap-on weight under the sink/countertop.
PVD coating offers exceptional hardness, wear resistance, and a visually pleasing finish.
Ceramic disc cartridge to ensure long-term drip-free operation.
360° rotating spout for enhanced versatility.
IKEA of Sweden
Good to know
Max. 6 l/min water flow at 3 bar pressure.
Connection hoses with 9/16" X UNEF connection included.
Deck plate to cover existing holes included.
The spout can be pulled out approx. 12".
Swivel spout 120°.
To be mounted in a 34-37 mm hole in a max. 55 mm thick sink/countertop.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Materials and care
Material
- Body/ Handle:
- Zinc, Metallized
- Inner body:
- Brass
- Spout:
- ABS plastic, Metallized
Care
Wipe dry with a clean cloth.
Clean with a soft cloth dampened with water and a mild dish detergent or soap. Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Safety and compliance
Assembly and documents
Assembly instructions
MACKSJÖN Kitchen faucet pull out w spray406.013.73Advice and care instructions
MACKSJÖN Kitchen faucet pull out w spray406.013.73TECHNICAL INFORMATION
MACKSJÖN
Kitchen faucet pull out w spray, stainless steel color
Article Number406.013.73| Type of faucet | Kitchen faucet with pull-out spout |
| Max. flow rate at 3 bar | 5.9 l/min (1.6 gpm) |
| Min. working pressure | 1.4 bar (0,14MPa) (20.3 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 600 mm (23 3/4") |
| Hose connection size | 9/16" x 24UNEF |
| Swivel spout | 120 ° |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | IAPMO |

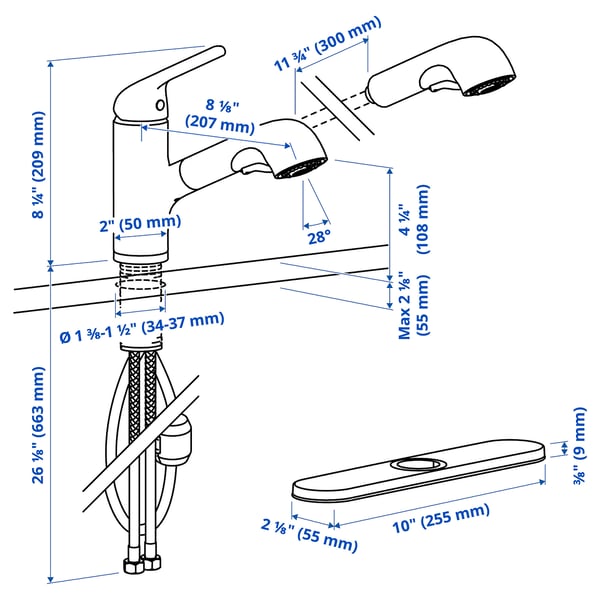

Measurements
- Height: 22 cm (8 5/8 ")
Packaging
MACKSJÖN
Article Number406.013.73- Width: 28 cm (11 ")
- Height: 7 cm (2 ½ ")
- Length: 42 cm (16 ½ ")
- Weight: 2.57 kg (5 lb 11 oz)
- Package(s): 1
