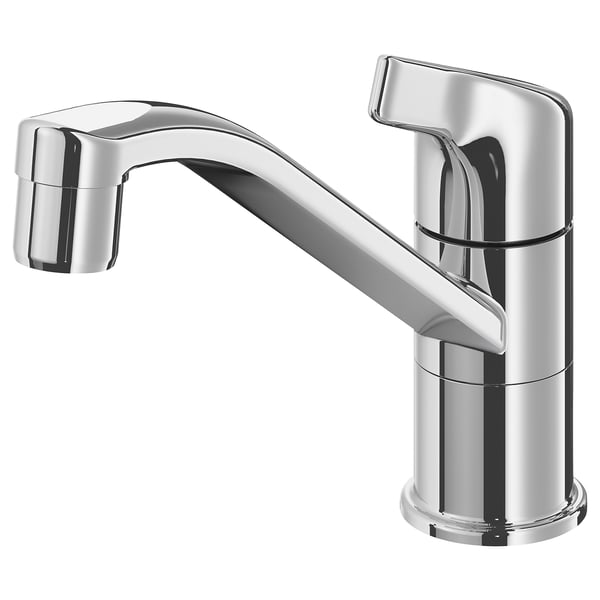

KALLSJÖN Single pillar faucet, chrome plated
How to get it
2 year limited warranty
KALLSJÖN tap is a perfect addition to complete your outdoor kitchen in a modern design. It’s easy to connect to your garden water supply using the quick connector that comes included with the tap.
Product details
An aerator integrated in the tap keeps the water flow just right while less water and energy is used.
The handle sits on top of the faucet, making it easy for you to reach when turning the water on or off.
2-year warranty. Read about the terms in the warranty brochure.
Developed for outdoor use and works perfectly together with GRILLSKÄR outdoor sink unit.
Suitable for indoor use as a cold water tap with swivel spout.
Good to know
For outdoor use.
To be stored in a frost-free space.
When outdoor temperatures are below freezing and it is time to turn off the water supply to KALLSJÖN outdoor pillar faucet, click off the water hose and leave the faucet in open position.
Quick-connect hose fitting for easy attachment included.
Materials and care
Material
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
Care
For outdoor use.
Never use a steel scourer, scourer pad or similar products as they can scratch the surface.
To protect the tap from frost damage, completely drain the tap from all water by disconnecting the water supply, then opening the tap (max. 1 minute) to allow all remaining water to drain.
Safety and compliance
Assembly and documents
Assembly instructions
KALLSJÖN Single pillar faucet004.863.51Advice and care instructions
KALLSJÖN Single pillar faucet004.863.51TECHNICAL INFORMATION
KALLSJÖN
Single pillar faucet, chrome plated
Article Number004.863.51| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 23-37 mm (7/8-1 7/16") |
| Swivel spout | 360 ° |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Third party certified according to local standards by | IAPMO |

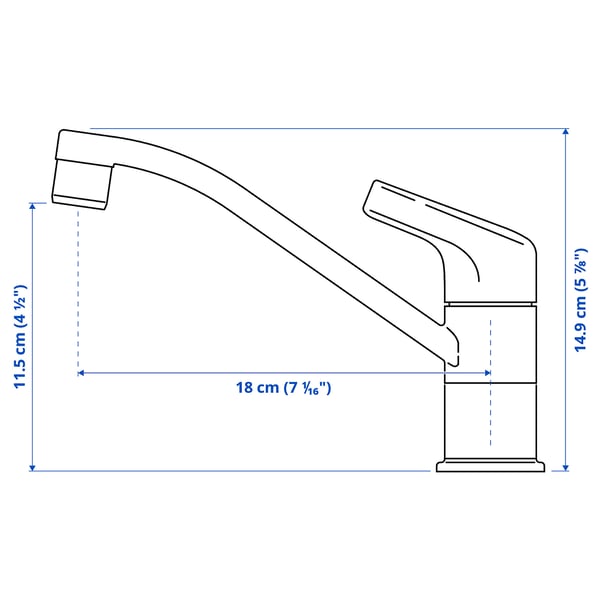

Measurements
- Length: 18 cm (7 ")
- Height: 15 cm (6 ")
Packaging
KALLSJÖN
Article Number004.863.51- Width: 23 cm (9 ")
- Height: 6 cm (2 ¼ ")
- Length: 25 cm (9 ¾ ")
- Weight: 0.80 kg (1 lb 12 oz)
- Package(s): 1
Ratings and reviews
Customer reviews
Material
What is brass?
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA, we use brass for things like knobs, handles, frames and taps.
