- Brand NameIKEA
- Hose connection sizeG 1/2" (R15)
- Max. flow rate at 3 bar4.5 l/min (1.2 gpm)
- Max. hot water temperature80˚C (176˚F)
- Recommended hot water temperature60°C (140°F)
- Max. static pressure10 bar (1,0MPa) (145.0 psi)
- Min. working pressure1 bar (0,1MPa) (14.5 psi)
- Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
- WELS rating6 stars
- WELS registration numberT48490
How to get it
Checking availability...Available services
Collect 25 points with
You have 365 days to return your purchase
For unopened, unused items in their original packaging and in resaleable condition. Learn more
MAJSJÖN
506.103.86The cold start prevents unnecessary release of hot water when the lever is in the middle position. Hot water is activated by turning the lever to the left.
Product features
10 year guarantee
More information
Material
- Handle:
- Zinc
- Body:
- Stainless steel
Care
Wipe dry with a clean cloth.
Clean with a soft cloth dampened with water and a mild washing-up detergent or soap. Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Assembly instructions

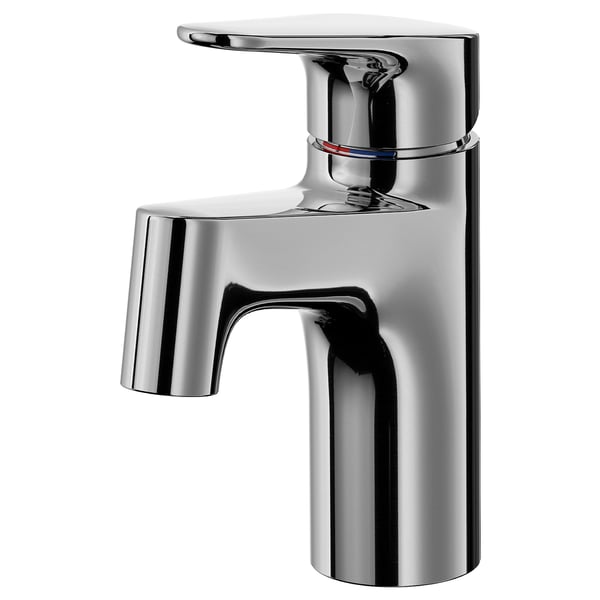

MAJSJÖN Bathroom mixer tap top lever506.103.86Advice and care instructions
MAJSJÖN Bathroom mixer tap top lever506.103.86MAJSJÖN Bathroom mixer tap top lever506.103.86
Easy removal aerator for easy disassembly and cleaning.
Trivalent chrome plating provides enhanced corrosion resistance, exceptional hardness and wear resistance and a visually pleasing finish.
Soft handle and spout shapes are easy to clean.
Designed for easy installation.
Connection hoses with G1/2" connection included.
Fitted with a pressure-compensating aerator that regulates water for a consistent flow and softens the stream.
Fits IKEA integrated and semi-recessed wash-basins, and other standard wash-basins.
Recommended hot water temperature is 60°C. Max. temperature hot water connection 80°C.
Spare parts are available. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.

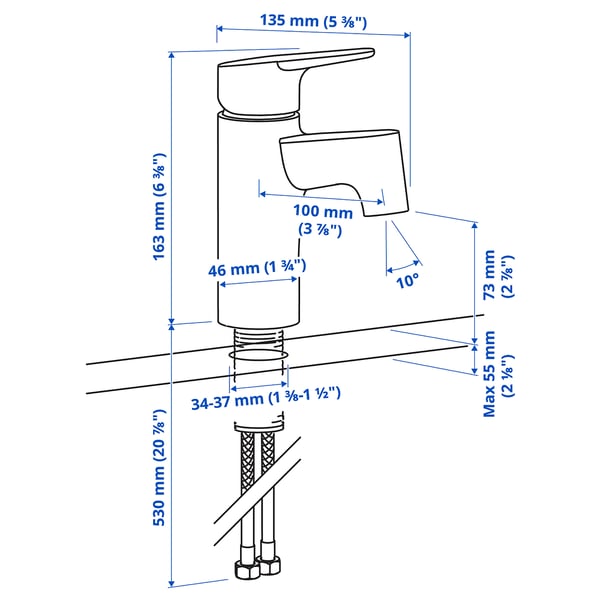

To be mounted in a 34-37 mm hole in a wash-basin or countertop max. 55 mm thick.
Material
- Handle:
- Zinc
- Body:
- Stainless steel
Care
Wipe dry with a clean cloth.
Clean with a soft cloth dampened with water and a mild washing-up detergent or soap. Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
- WaterMark certified according to AS/NZS 3718 and WELS registered according to AS/NZS 6400.This mixer tap is designed for high-pressure water systems with a recommended pressure range of 1.0 – 5.0 bar (0.1 – 0.5 MPa). It has been tested to work with a max. pressure of 10 bar (1 MPa).
Assembly instructions
MAJSJÖN Bathroom mixer tap top lever506.103.86Advice and care instructions
MAJSJÖN Bathroom mixer tap top lever506.103.86MAJSJÖN Bathroom mixer tap top lever506.103.86
- 506.103.86
1 × MAJSJÖN
Bathroom mixer tap top lever- Width: 21 cm
- Height: 6 cm
- Length: 39 cm
- Weight: 1.39 kg
