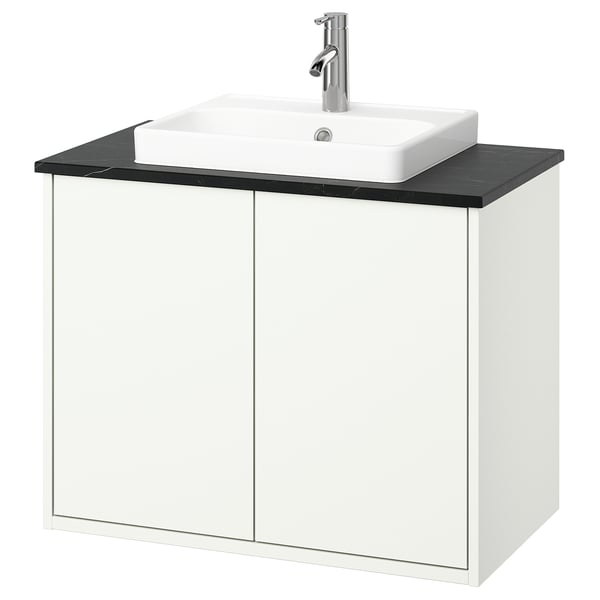

HAVBÄCK / ORRSJÖN Wash-stnd w doors/wash-basin/tap, white/black marble effect, 82x49x71 cm

Price $ 607
Silicone is needed for installation, not included. Knobs and handles are sold separately.
HAVBÄCK / ORRSJÖN Wash-stnd w doors/wash-basin/tap, white/black marble effect, 82x49x71 cm
HAVBÄCK / ORRSJÖN Wash-stnd w doors/wash-basin/tap, white/white marble effect, 82x49x71 cm
HAVBÄCK / ORRSJÖN Wash-stnd w doors/wash-basin/tap, dark grey/black marble effect, 82x49x71 cm
HAVBÄCK / ORRSJÖN Wash-stnd w doors/wash-basin/tap, white/black marble effect, 82x49x71 cm

How to get it

Available services
Product features
  • 10 year guarantee

HAVBÄCK bathroom furniture has a clean, straightforward design. This wash-stand with doors, semi-recessed wash-basin and countertop becomes a personal centrepiece with your choice of knobs or handles.

Article Number995.674.33

Product details

Closed storage with capacity for bulkier or taller items, like bottles and baskets, keeping them dust-free and out of sight.

What’s not to like? The clean, straight lines and a matt white finish give your bathroom a fresh and appealing character that is easy to personalise with your choice of knobs or handles.

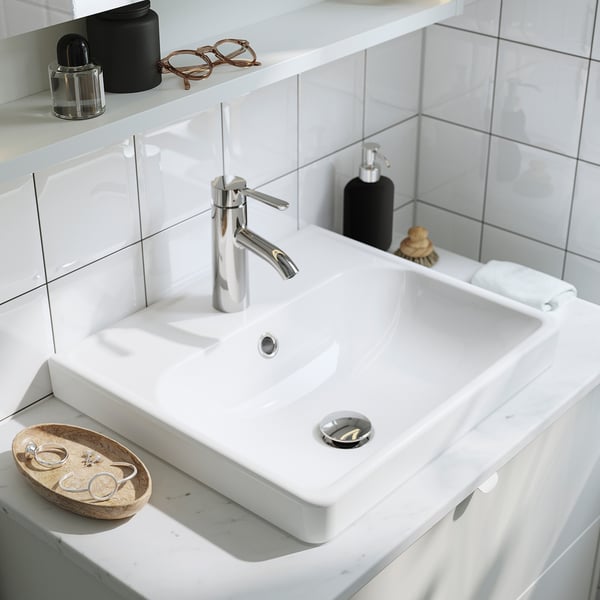

The ceramic wash-basin with its soft shapes and durable surface is made with the best materials and will outlast many years of wear and tear.

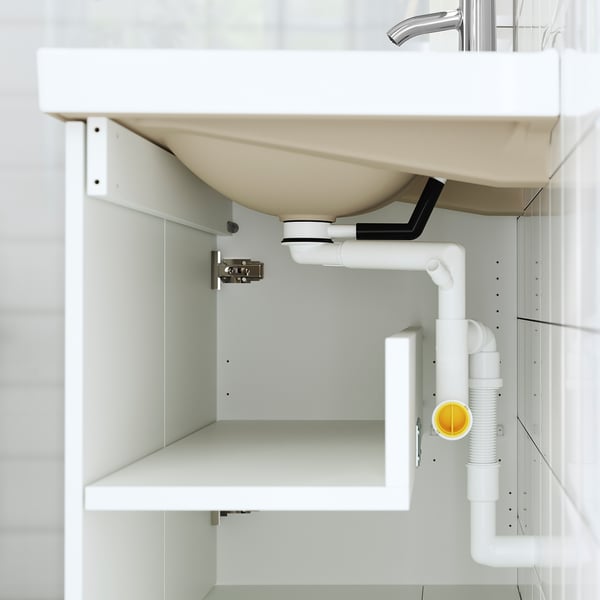

Utilise the full depth of the shelf for storage or fold ¾ of the shelf to make space for piping.

Add knobs or handles to create the spot-on solution for your style and taste. Sold separately.

To make it simpler for you, the countertop is available as pre-cut. You need to cut holes for wash-basin and mixer tap on your own.

This cabinet is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.

Combine with other cabinets in the HAVBÄCK series to create a coordinated bathroom solution that fits your space and needs.

10 year guarantee. Read about the terms in the guarantee brochure.

Article Number995.674.33

Good to know

Comprises: 1 wash-stand with doors, 1 countertop, 1 semi-recessed wash-basin, 1 water trap and 1 mixer tap.

If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.

Silicone is needed for installation, not included.

Knobs and handles are sold separately.

Materials and care

Material

Wash-stand with doors
Frame/ Door/ Shelf/ Bottom panel/ Bottom rail:
Particleboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
Top rail:
Fibreboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)

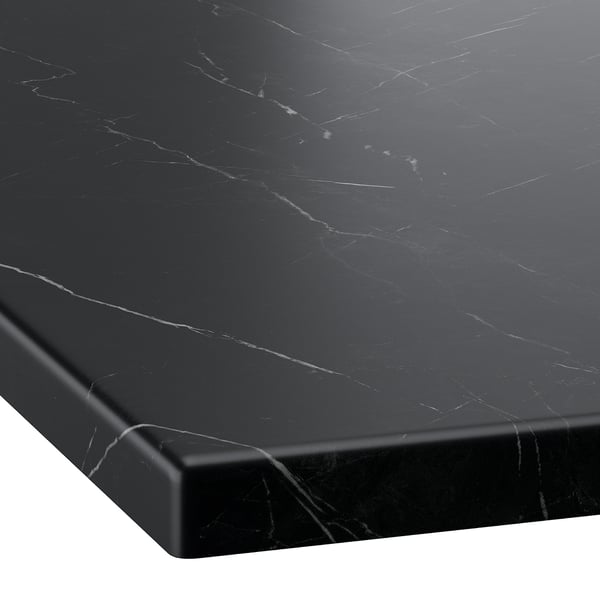

Countertop
Fibreboard, Plastic foil, Melamine foil
Semi-recessed wash-basin
Cover/ Spring:
Stainless steel
Cover cap/ Mechanism:
Acetal plastic
Sealing ring:
Synthetic rubber
Cover cap:
Polycarbonate/ABS plastic
Basematerial:
Ceramics, Coloured glaze
Wash-basin mixer tap
Body:
Brass, Metallized
Spout:
Brass, Brass, Metallized
Water trap, 1 bowl
Water trap frame/ Nut/ Outlet pipe/ Waste pipe:
Polypropylene plastic
Washer/ Seals:
Synthetic rubber
Strainer:
Stainless steel
Assembly tool:
ABS plastic

Care

Countertop

Wipe clean with a mild soapy solution.

Wipe dry with a clean cloth.

Wash-stand with doors

Wipe dry with a clean cloth.

Wash-stnd w doors/wash-basin/tap

Wet marks should always be dried off as soon as possible to stop moisture penetration.

Semi-recessed wash-basin

Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.

Safety and compliance

The washbasin should not come in contact with ammonia, acids, strong detergents, hair dye or chlorine.Must be secured to the wall for a safe installation. Different wall materials require different types of fixing devices. Use fixing devices suitable for the walls in your home, sold separately.This product bears the CE mark.

Technical Information

DALSKÄR

Wash-basin mixer tap, chrome-plated

Article Number705.321.37
Type of tapWash-basin mixer tap
WELS rating6 stars
WELS registration numberT28364
Max. flow rate at 3 bar4.5 l/min (1.2 gpm)
Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
Min. working pressure0.5 bar (0,05MPa) (7.25 psi)
Max. static pressure10 bar (1,0MPa) (145.0 psi)
Max. countertop thickness50 mm (2")
Mounting hole measurement34-37 mm (1 3/8-1 7/16")
Connection hoses length475 mm (18 3/4")
Hose connection sizeG 1/2" (R15) "
Recommended cold water temperature10-15˚C (50-59˚F)
Recommended hot water temperature60-65°C (140-150°F)
Max. hot water temperature80˚C (176˚F)
Noise levelI
Third party certified according to local standards byIAPMO

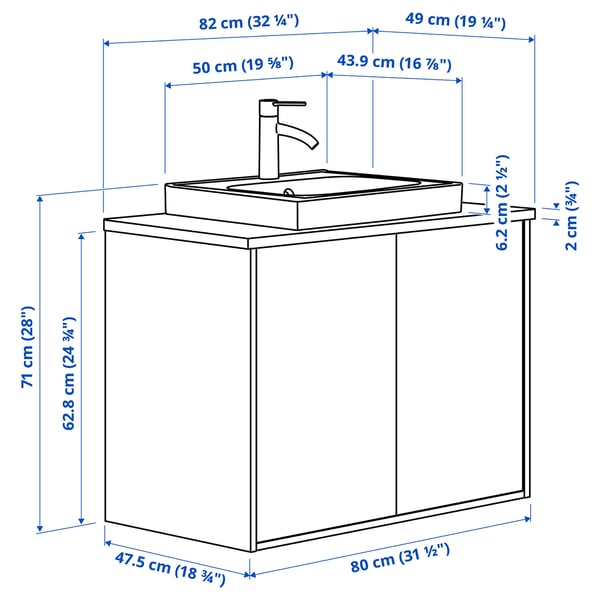

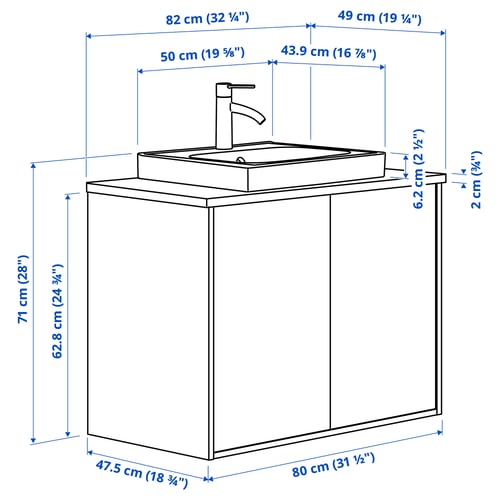

Measurements

  • Width: 82.0 cm
  • Depth: 49.0 cm
  • Height: 71.0 cm
  • Door thickness: 16 mm

Packaging

This product comes as 6 packages.

HAVBÄCK

Article Number205.352.42
This product has multiple packages.
  • Width: 61 cm
  • Height: 7 cm
  • Length: 84 cm
  • Weight: 15.20 kg
  • Package(s): 1
  • Width: 61 cm
  • Height: 7 cm
  • Length: 84 cm
  • Weight: 15.10 kg
  • Package(s): 1

TOLKEN

Article Number905.061.99
  • Width: 50 cm
  • Height: 3 cm
  • Length: 94 cm
  • Weight: 6.33 kg
  • Package(s): 1

ORRSJÖN

Article Number605.450.84
  • Width: 49 cm
  • Height: 18 cm
  • Length: 53 cm
  • Weight: 12.00 kg
  • Package(s): 1

DALSKÄR

Article Number705.321.37
  • Width: 18 cm
  • Height: 6 cm
  • Length: 35 cm
  • Weight: 1.39 kg
  • Package(s): 1

RÄNNILEN

Article Number304.224.14
  • Width: 27 cm
  • Height: 8 cm
  • Length: 44 cm
  • Weight: 0.39 kg
  • Package(s): 1
