10 year guarantee
How to get it
GLITTRAN traditional tap in black helps lower water- and energy-use – so you can lower your bills too. The quality is guaranteed to outlast many years of pouring, washing and rinsing.
Article Number505.670.57Product details
10 year guarantee. Read about the terms in the guarantee brochure.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
An aerator integrated in the tap keeps the water flow just right while less water and energy is used.
IKEA of Sweden
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.
Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.
Connection hoses with 1/2" connection included. Connection length: 50 cm.
A tool is included that makes it easy to install the mixer tap in place.
Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Swivel spout is preset to 360° but can be changed to 120°.
- MaterialCare
- Body:
- Zinc, Metallized
- Spout:
- Stainless steel, Metallized
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
- Tested and certified according to relevant mechanical, quality and safety standards.This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 1.0 – 5.0 bar (100 kPa – 500 kPa).
- Assembly instructionsGLITTRAN Kitchen mixer tap505.670.57Other documentsGLITTRAN Kitchen mixer tap505.670.57
Technical Information
GLITTRAN
Kitchen mixer tap
| Type of tap | Kitchen mixer tap |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Hose connection size | G 1/2" (R15) " |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| WELS rating | 5 stars |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Strainer included | No |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| WELS registration number | T41553 |
| Connection hoses length | 375 mm (14 3/4") |
| Swivel spout | Swivel spout is preset to 360° but can be changed to 120°. |
| Third party certified according to local standards by | SAI global |

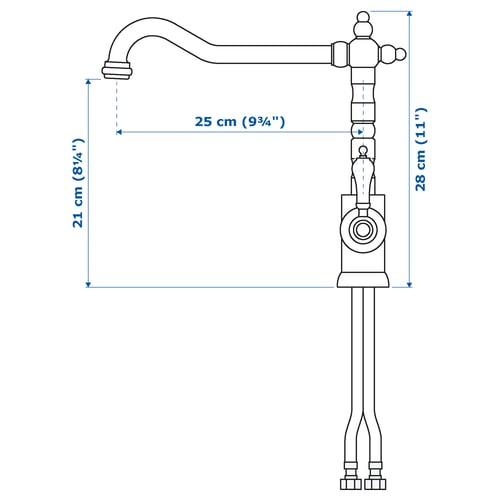

Measurements
Height: 28 cm
- GLITTRANArticle Number505.670.57
Width: 34 cm
Height: 5 cm
Length: 39 cm
Weight: 2.05 kg
Package(s): 1
