EDSVIK Dual-control kitchen mixer tap, chrome-plated
How to get it
10 year guarantee
EDSVIK traditional chrome tap helps lower water- and energy-use – so you can lower your bills too. The quality is guaranteed to outlast many years of pouring, washing and rinsing.
Product details
10 year guarantee. Read about the terms in the guarantee brochure.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
Chrome-plated brass is a hard and durable surface that is easy to clean.
An aerator integrated in the tap keeps the water flow just right while less water and energy is used.
IKEA of Sweden
Good to know
WELS 5 star rating, 5.0 l/min.
Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.
Water and energy saving aerator (8 l/min.) for high-pressure systems included.
Connection hoses with dia. 10 mm (3/8") connection included. Connection length: 35 cm.
A tool is included that makes it easy to install the mixer tap in place.
Swivel spout: 360°.
Materials and care
Material
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
Safety and compliance
Assembly and documents
Assembly instructions
EDSVIK Dual-control kitchen mixer tap604.942.25Advice and care instructions
EDSVIK Dual-control kitchen mixer tap604.942.25Technical Information
EDSVIK
Dual-control kitchen mixer tap, chrome-plated
Article Number604.942.25| Type of tap | Dual-control kitchen mixer tap |
| WELS rating | 5 stars |
| WELS registration number | T36447 |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 425 mm (16 3/4") |
| Hose connection size | G 1/2" (R15) " |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | IAPMO OCEANA |

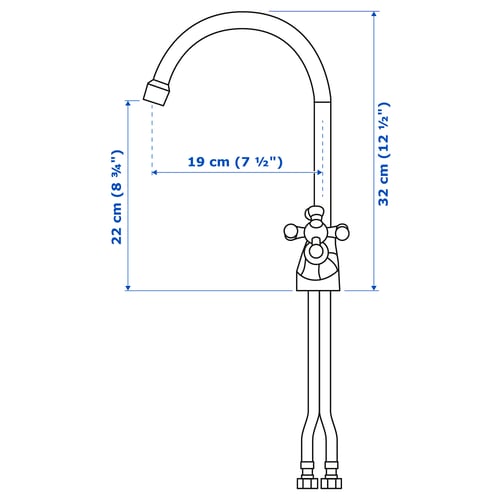

Measurements
- Height: 32 cm
Packaging
EDSVIK
Article Number604.942.25- Width: 25 cm
- Height: 6 cm
- Length: 41 cm
- Weight: 1.55 kg
- Package(s): 1
Reviews
Customer reviews
Related products
Recommended for you
Material
What is brass?
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.
