DELSJÖN Kitchen mixer tap, pewter effect
How to get it
10 year guarantee
DELSJÖN pewter effect mixer tap’s high spout makes it easier to wash things like large pots. We’ve given it durable parts and put it through some of the toughest tests, so we can give you a guarantee of quality.
Product details
10 year guarantee. Read about the terms in the guarantee brochure.
An aerator integrated in the tap keeps the water flow just right while less water and energy is used.

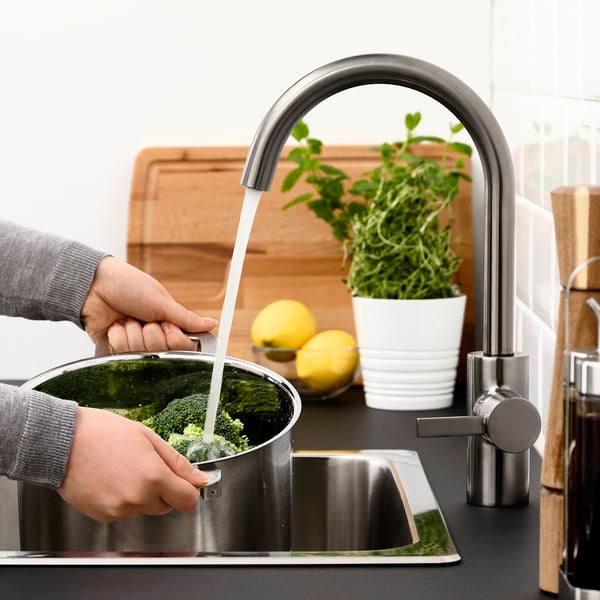

The high spout makes it easier to wash dishes, including large pots.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
IKEA of Sweden
Good to know
WELS 5 star rating, 5.0 l/min.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.
A tool is included that makes it easy to install the mixer tap in place.
Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.
Connection hoses with 1/2" connection included. Length: 35 cm.
Swivel spout is preset to 360° but can be changed to 120°.
Materials and care
Material
- Body:
- Zinc, Metallized
- Inner body:
- Reinforced polyamide plastic
- Spout:
- Brass, Metallized
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe dry with a clean cloth.
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Safety and compliance
Assembly and documents
Assembly instructions
DELSJÖN Kitchen mixer tap204.887.83Advice and care instructions
DELSJÖN Kitchen mixer tap204.887.83Technical Information
DELSJÖN
Kitchen mixer tap, pewter effect
Article Number204.887.83| Type of tap | Kitchen mixer tap |
| WELS rating | 5 stars |
| WELS registration number | T36602 |
| Max. flow rate at 3 bar | 5 l/min (1.3 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 400 mm (15 3/4") |
| Hose connection size | G 1/2" (R15) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | IAPMO OCEANA |

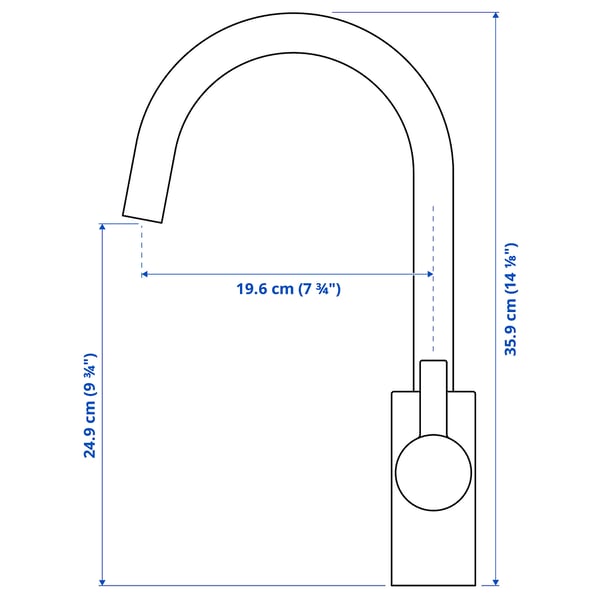

Measurements
- Length: 26 cm
- Height: 36 cm
Packaging
DELSJÖN
Article Number204.887.83- Width: 29 cm
- Height: 6 cm
- Length: 50 cm
- Weight: 1.83 kg
- Package(s): 1
