BYASJÖN / TVÄLLEN Wash-stnd w doors/wash-basin/tap, high-gloss white, 66x37x59 cm
How to get it
10 year guarantee
Space optimising combo – the cabinet slides in under the wash-basin, concealing pipes and providing precious shelf space in an instant. The white high-gloss finish brings a fresh feel to your bathroom.
Product details
There is plenty of shelf space inside and on top of the cabinet and space for piping in the back of the cabinet.
Soft-closing doors close quietly without slamming.
Durable and stable metal leg frame.
A perfect place to hide toilet paper or hygiene products that tend to clutter.
No need to drill holes in the walls as the robust construction stands steady on the floor.
10 year guarantee. Read about the terms in the guarantee brochure.
Good to know
May be attached to the wall but not necessary.
1 fixed shelf included.
All parts have protective edge bands fixed with humidity-resistant glue to prevent moisture and humidity from penetrating.
Adjustable feet ensure the cabinets stand steady on uneven floors.
Coordinates with ÄNGSJÖN bathroom furniture.
Materials and care
Material
- Frame:
- Particleboard, Plastic foil (min. 70% recycled), Plastic foil, Plastic edging
- Door:
- Fibreboard, Plastic foil (min. 70% recycled), Plastic foil, Plastic edging
- Shelf:
- Particleboard, Plastic foil, Plastic edging
- Back panel:
- Fibreboard, Plastic foil, Plastic foil
- Leg frame:
- Steel, Epoxy/Acrylic coating, Powder coating
Ceramics, Coloured glaze
- Water trap frame/ Nut/ Outlet pipe/ Waste pipe:
- Polypropylene plastic
- Washer/ Seals:
- Synthetic rubber
- Strainer:
- Stainless steel
- Assembly tool:
- ABS plastic
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
Care
Wipe clean with a mild soapy solution.
Wipe clean with a dry cloth.
Assembly and documents
Assembly instructions
BYASJÖN Wash-basin base cabinet106.021.09TVÄLLEN Single wash-basin904.816.36RÄNNILEN Water trap, 1 bowl304.224.14Advice and care instructions
DALSKÄR Wash-basin mixer tap705.321.37DALSKÄR Wash-basin mixer tap705.321.37Technical Information
DALSKÄR
Wash-basin mixer tap, chrome-plated
Article Number705.321.37| Type of tap | Wash-basin mixer tap |
| WELS rating | 6 stars |
| WELS registration number | T28364 |
| Max. flow rate at 3 bar | 4.5 l/min (1.2 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 475 mm (18 3/4") |
| Hose connection size | G 1/2" (R15) " |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Noise level | I |
| Third party certified according to local standards by | IAPMO |

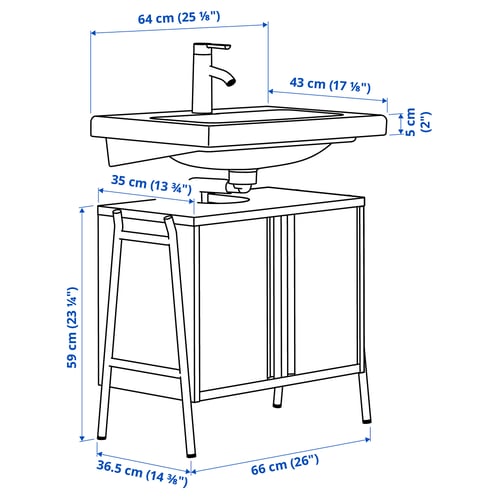

Measurements
- Width: 66.0 cm
- Depth: 36.5 cm
- Height: 59.0 cm
Packaging
BYASJÖN
Article Number106.021.09- Width: 45 cm
- Height: 17 cm
- Length: 66 cm
- Weight: 18.37 kg
- Package(s): 1
TVÄLLEN
Article Number904.816.36- Width: 48 cm
- Height: 20 cm
- Length: 68 cm
- Weight: 18.60 kg
- Package(s): 1
RÄNNILEN
Article Number304.224.14- Width: 27 cm
- Height: 8 cm
- Length: 44 cm
- Weight: 0.39 kg
- Package(s): 1
DALSKÄR
Article Number705.321.37- Width: 18 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 1.39 kg
- Package(s): 1
