VOXNAN Faucet, tall, chrome plated
How to get it
10 year limited warranty
You save hot water and energy every time you lift the lever. The cold start function avoids the unnecessary use of hot water for daily rituals like washing your hands or brushing your teeth.
Product details
10-year Limited Warranty. Read about the terms in the Limited Warranty brochure.
The cold-start function prevents hot water waste and saves energy. When you lift the lever straight up, only cold water is released. The function restricts opening the lever fully to the right.
Hot water is released by turning the lever to the left. It is only then that hot water is consumed.
This is a durable faucet that you can use for many years, since the hard, ceramic discs withstand the friction that always occurs when you change the temperature of the water.
Chrome-plated brass is a hard and durable surface that is easy to clean.

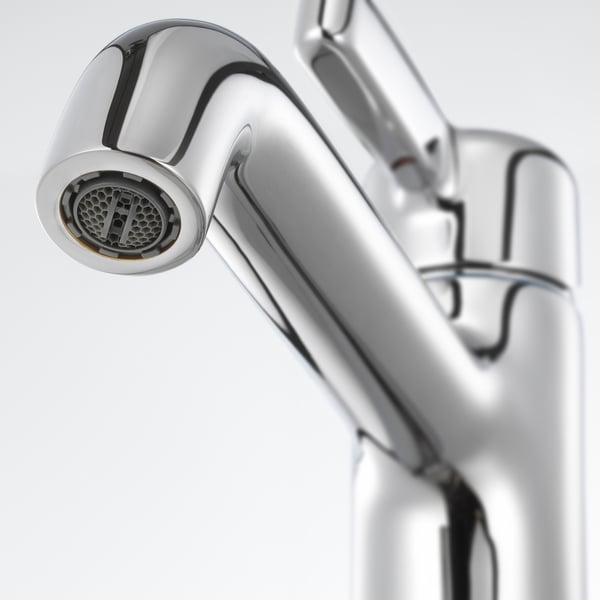

An aerator integrated in the tap keeps the water flow just right while less water and energy is used.
H Preutz/N Karlsson
Good to know
Water and energy saving aerator (1.2 gal/min.) for high-pressure systems included.
Connection hoses with 9/16" connection included. Length: 13¾".
A tool is included that makes it easy to install the faucet in place.
Flow rate: 1.2 gal./min. (4.5 l/min.)
Max. temperature hot water system 176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Suitable for bathroom countertops only. For mounting behind or to the side of the sink according to assembly instructions.
Materials and care
Material
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
Care
Wipe clean with a water dampened soft cloth and a mild non-abrasive dish detergent or soap, if necessary.
Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
Safety and compliance
Assembly and documents
Assembly instructions
VOXNAN Faucet, tall605.332.55TECHNICAL INFORMATION
VOXNAN
Faucet, tall, chrome plated
Article Number605.332.55| Type of faucet | Sink faucet, tall |
| Max. flow rate at 3 bar | 4.5 l/min (1.2 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | 9/16" x 24UNEF |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Third party certified according to local standards by |

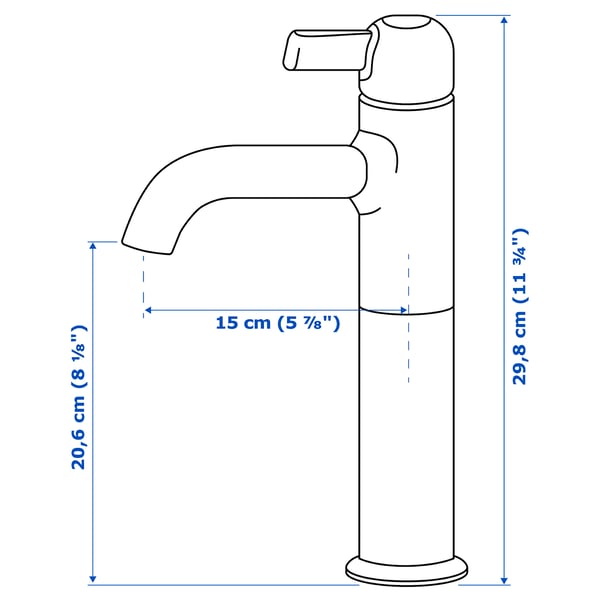

Measurements
- Height: 30 cm (11 3/4 ")
Packaging
VOXNAN
Article Number605.332.55- Width: 23 cm (8 ¾ ")
- Height: 7 cm (2 ¾ ")
- Length: 41 cm (16 ¼ ")
- Weight: 1.83 kg (4 lb 1 oz)
- Package(s): 1
