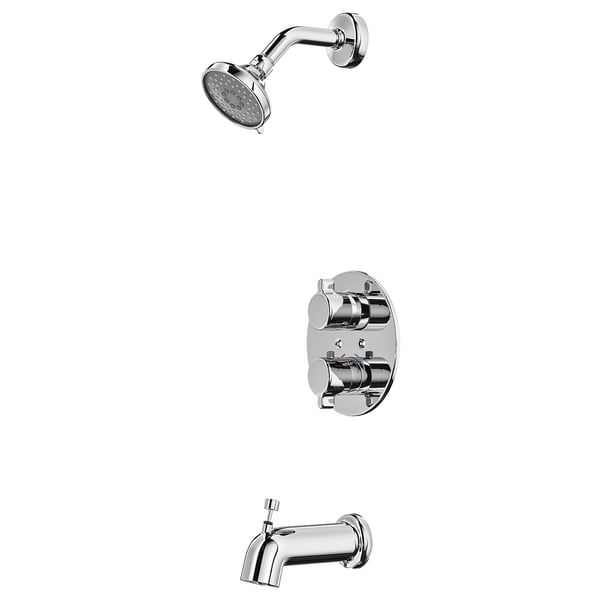

VOXNAN Bath/shower set thermostatic faucet, chrome plated
How to get it
Collect 35 points with

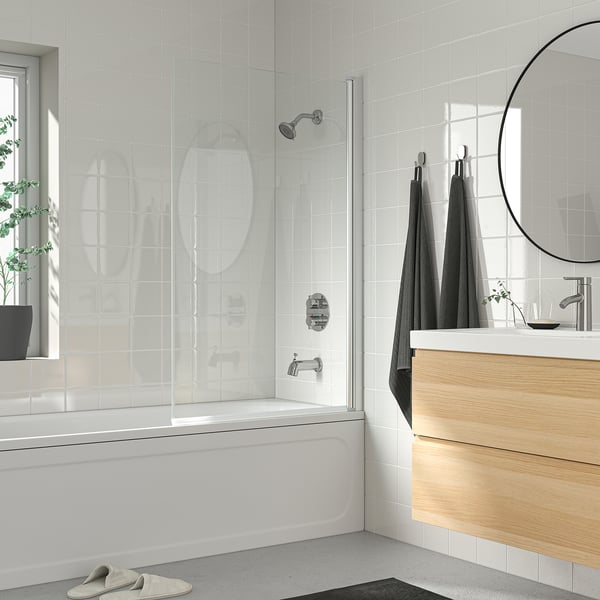

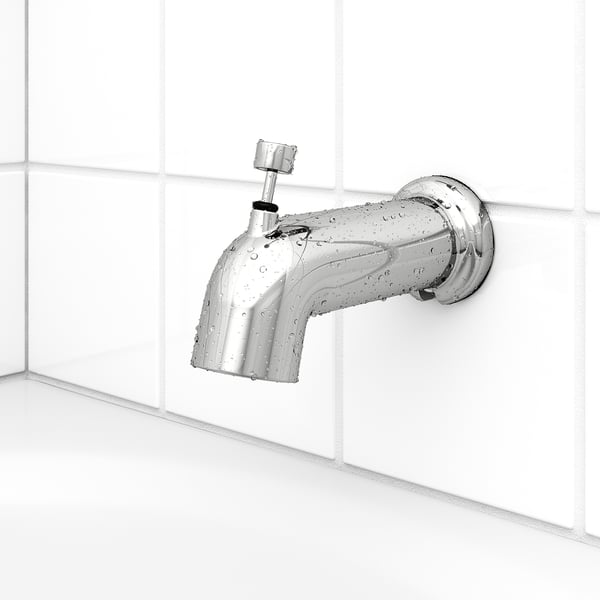

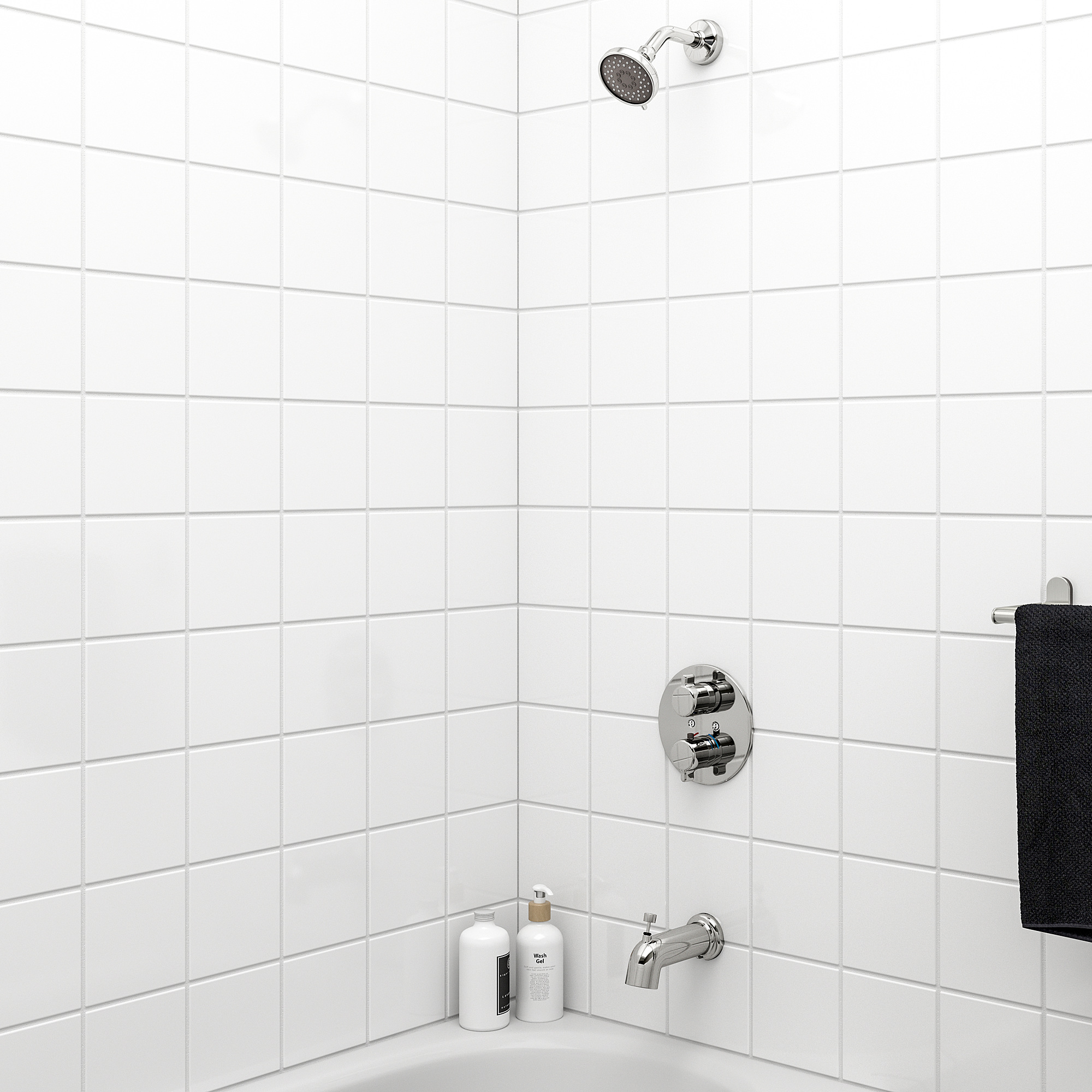

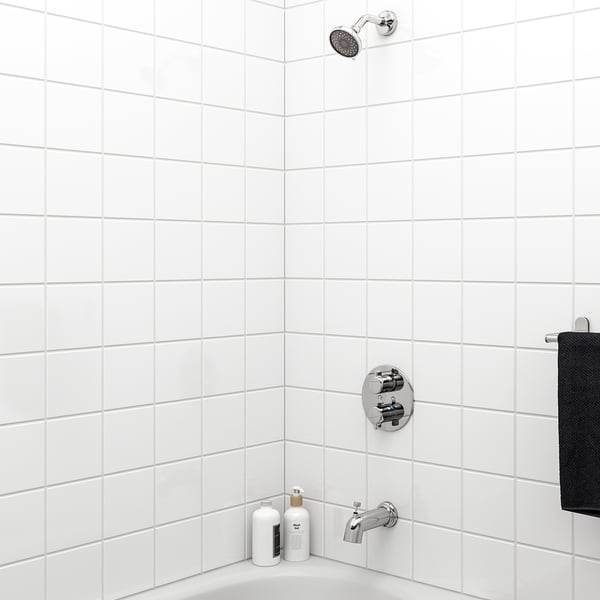

Perfect for the tub as you can easily switch between shower mixer and bath spout. The 38°C safety stop button prevents water from getting too hot.
Product details
10 year limited warranty on the faucet and 3 year limited warranty on other parts. Read about the terms in the limited warranty brochure.

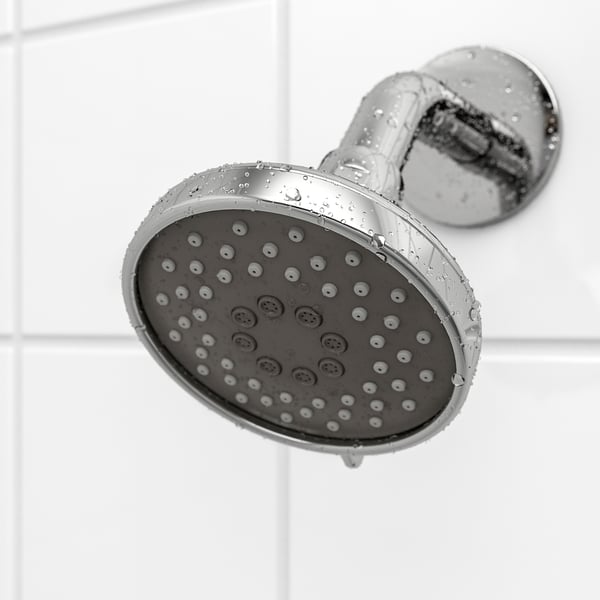

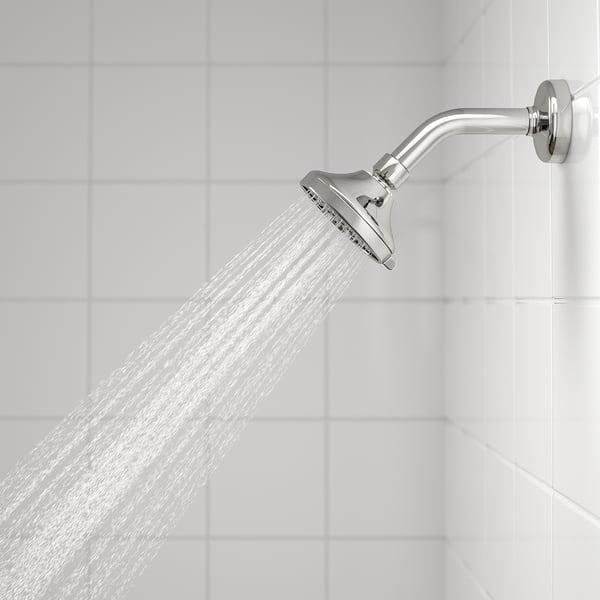

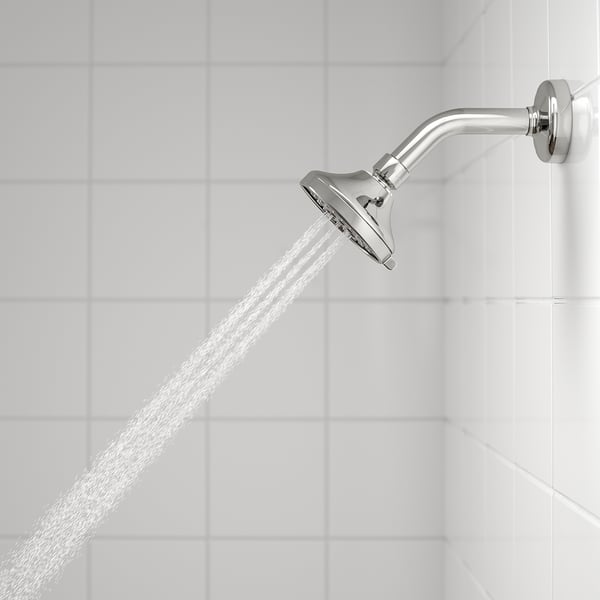

This showerhead with full spray function gives a wide and even coverage for a relaxing shower experience.

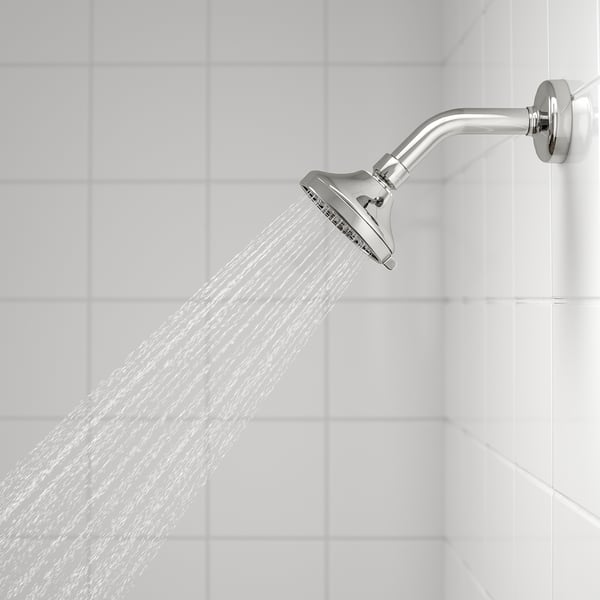

The mesh spray function boosts the force of the water spray which is perfect for rinsing thick hair.
You can choose between full spray or mesh spray or you can combine the two, giving you the best of both worlds.

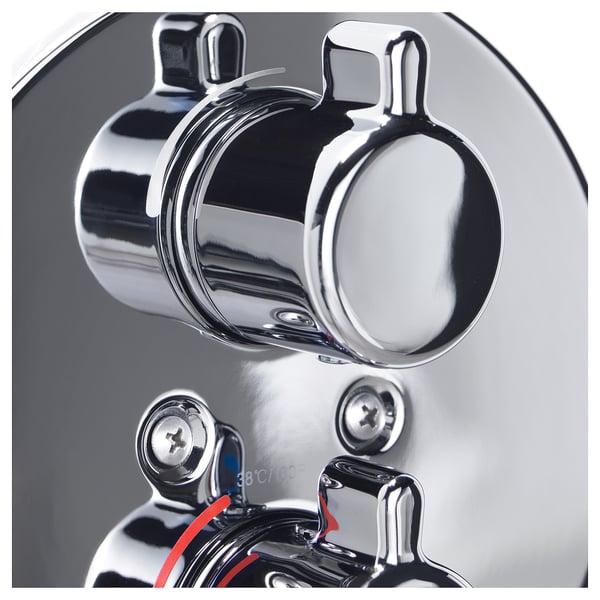

A 100°F safety stop button prevents water from getting too hot and accidentally causing burns. Hotter temperatures can be reached by pressing the override button on the temperature control.
Easy to clean by rubbing the rubber nozzles on the showerhead.
H Preutz/N Karlsson
Good to know
Comes with full, mist, full/mist spray functions.
Separate flow and temperature controls.
You can override the safety stop temperature by pressing the override button.
Wall fittings included.
Pressure compensating flow regulator included.
The thermostatic faucet is pre-set to a safety stop temperature of 100°F. Since operating conditions in each supply system varies, it might be necessary to calibrate the faucet according to the service and installation instructions.
Max. temperature hot water system 176°F.
Recommended hot water temperature: 140°F-149°F.
Recommended cold water temperature: 50°-59°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Materials and care
Material
- Handheld showerhead inner housing/ Overhead showerhead inner housing/ Faceplate:
- Acetal plastic
- Handheld showerhead outer housing/ Overhead showerhead outer housing:
- ABS plastic, Chrome plated
- Nozzle:
- Synthetic rubber
- Pipe:
- Stainless steel
- Body:
- Brass
- Thermostat faceplate:
- Brass, Chrome plated
- Handle:
- Zinc, Chrome plated
Care
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Rub away limescale deposits with your hands.
Turn the thermostat from full cold to full hot from time to time.
Check the temperature control on a regular basis, adjust if necessary according to the assembly instructions.
Check the washers on a regular basis.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
Safety and compliance
Assembly and documents
Assembly instructions
VOXNAN Bath/shower set thermostatic faucet003.426.21Advice and care instructions
VOXNAN Bath/shower set thermostatic faucet003.426.21VOXNAN Bath/shower set thermostatic faucet003.426.21TECHNICAL INFORMATION
VOXNAN
Bath/shower set thermostatic faucet, chrome plated
Article Number003.426.21| Type of shower | Built in thermostatic mixer, Shower Set |
|---|---|
| Max. flow rate at 3 bar,head shower | 6.6 l/min (1.75 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Number of spray functions | 4 |
| Third party certified according to local standards by |

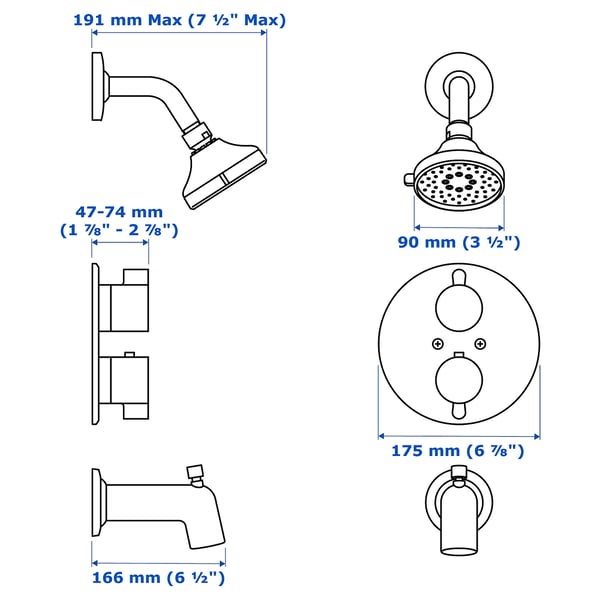

Measurements
- Thermostatic faucet diameter: 175 mm (7 ")
- Spout, depth: 166 mm (6 ½ ")
- Shower head diameter: 90 mm (3 ½ ")
Packaging
VOXNAN
Article Number003.426.21- Width: 21 cm (8 ")
- Height: 16 cm (6 ¼ ")
- Length: 36 cm (14 ¼ ")
- Weight: 4.14 kg (9 lb 2 oz)
- Package(s): 1
Ratings and reviews
Customer reviews
Related products
Explore more options
We recommend
Material
What is brass?
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA, we use brass for things like knobs, handles, frames and taps.
Function solution
Designed with safety in mind NA
IKEA thermostatic shower faucets have a 100°F safety button that must be deliberately pressed to reach higher temperatures, but will never exceed 110°F – which is safe for human skin. Another smart feature is the “cold touch", anti-scald technology which ensures that the shower faucets will never heat up or cause burns. Whether the preference is modern or more traditional style, IKEA shower faucets offer a great shower experience with the highest safety in mind.
