VINSTGIVANDE Wall mounted range hood, Stainless steel
Best Seller
VINSTGIVANDE Wall mounted range hood, Stainless steel
VINSTGIVANDE Wall mounted range hood, Stainless steel
VINSTGIVANDE Wall mounted range hood, Stainless steel
VINSTGIVANDE Wall mounted range hood, Stainless steel
VINSTGIVANDE Wall mounted range hood, Stainless steel
VINSTGIVANDE Wall mounted range hood, Stainless steel
VINSTGIVANDE Wall mounted range hood, Stainless steel
VINSTGIVANDE Wall mounted range hood, Stainless steel
VINSTGIVANDE Wall mounted range hood, Stainless steel

VINSTGIVANDE Wall mounted range hood, Stainless steel

Price $ 799.00
(19)

How to get it

  • 5 year limited warranty

Classic hood with all the basic functions needed. The timeless stainless steel design fits most kitchens and all of our other stainless steel appliances. A LED light source gives even work lighting.

Article Number504.660.01

Product details

5 year limited warranty. Read about the terms in the limited warranty brochure.

2 LED bulbs included; effectively illuminate the cooking surface.

You can easily remove and clean the grease filter. 2 grease filters included.

Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.

Designer

IKEA of Sweden

  • 7.0 sones.

    360 CFM.

    Motor power: 240W.

    Voltage: 120V.

    Wall-mounted range hood with 3 speeds.

    For optimal performance when using your range hood on a daily basis, it is recommended that you replace your filter every 6 months.

    For recirculation installation: to be completed with NYTTIG FIL 01 and NYTTIG FIL 10 charcoal filter with conversion kit.

    You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.

    Two grease filters included.

  • Care

    Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.

    Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.

  • Assembly instructions

    VINSTGIVANDE Wall mounted range hood504.660.01

    Advice and care instructions

    VINSTGIVANDE Wall mounted range hood504.660.01

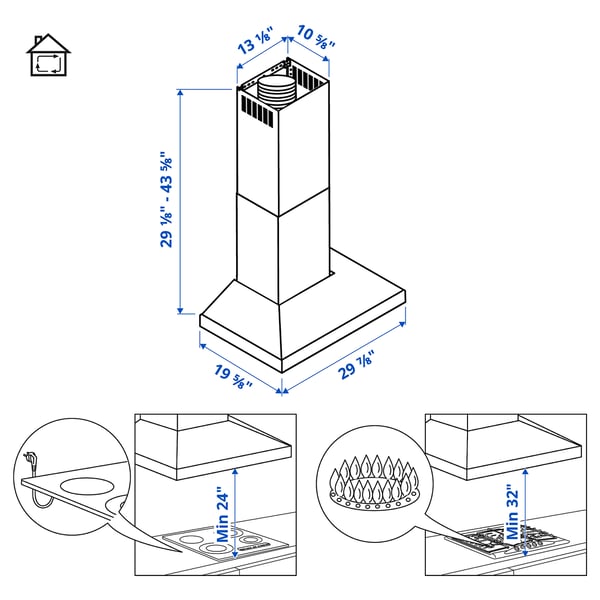

Measurements

  • Max. height extraction: 99.7 cm (39 1/4 ")
  • Min. height extraction: 62.7 cm (24 5/8 ")
  • Max. height recirculation: 110.8 cm (43 5/8 ")
  • Min. height recirculation: 74.1 cm (29 1/8 ")
  • Width: 76.0 cm (29 7/8 ")
  • Depth: 50.0 cm (19 5/8 ")
  • Height: 49.3 cm (19 3/8 ")
  • Weight: 17.20 kg (38 lb)
  • Width of chimney: 33.3 cm (13 1/8 ")
  • Depth of chimney: 26.9 cm (10 5/8 ")

  • VINSTGIVANDE

    Article Number504.660.01
    • Width: 67 cm (26 ½ ")
    • Height: 46 cm (18 ")
    • Length: 87 cm (34 ¼ ")
    • Weight: 23.70 kg (52 lb 4 oz)
    • Package(s): 1

Ratings and reviews

Rusted Range Hood KathyAfter 3 years, the metal looks rusted in some parts. Do not recommend. 1
I has decent quality for the significantly reduced price I paidAnonymous reviewerOverall I am happy with this purchase given its performance for the significantly reduced price I paid for it. I would rate it between 3 and 4 stars. Its power is adequate at the maximum fan speed. The fan has 3 speed level, level 1 and 2 are quiet but level 3 (maximum fan speed) is very loud. I usually need to use level 3 to clear the smoke and steam from cooking. The slide switch for fan speed is rather rigid - if I want to switch from level 1 to level 2, I often overshoot to level 3 because I feel like I have to force the switch to slide over. The look is pleasing and relatively easy to clean. On the whole, I am satisfied with the performance of this rangehood given the significantly reduced price I paid for it, but for its original price, I probably could find a better alternative.3
GoodMireilleGood5
Does exactly as advertisedShaneBright lights, fast fan, reasonably quiet, no vibration.4
Looks niceJosephEasy to install and looks good, but the top and bottom section of the vertical panels don’t match, the grain / finish on the steel is slightly off. Still looks good, but not perfect.4
wife is happy, I'm happyEricRelatively easy to install but there's no margin for error drilling holes for the hood hanger and supporting screws on the wall. If holes are not horizontal it will be difficult to keep the hood horizontal, The lower screws are right besides the "trunk" - not easy to put in unless you have a very long screwdriver. Have to leave the chimney bracket 1/4" from ceiling because there's not much room, again, for screwdriver. Just a reminder - it does not come with any wall screws, duct and electric wire strain relief. Suction is good. Although CFM not specified, it holds paper towel in the lowest setting. The lights are so bright. Wish it comes with a dimmer.4
Good value.BethGood value.4
Looks greatJanetLooks great5
not sure yet ... stillAnonymous reviewernot sure yet ... still awaiting the rest of my kitchen cabinets to come in ... but I do like the look and sleek look4
Loved this product of easeDianneLoved this product of ease to setup and stability would buy again.4
Looks nice, quiet, but difficult installAnonymousOverall very happy. Hard to beat the quality at this price! I like how the undercount switches give the hood nice clean lines. Reasonably quiet at levels 1 & 2 and good extraction at 2 & 3. My only gripe is the installation could’ve been easier. The two lower mounting brackets were recessed and very difficult to screw into. A minimum height for the exhaust vent hole would’ve been nice in the specs.4

Customer reviews

3.8Average rating
19Reviews

Function solution

Sound levels

Sound levels for appliances are measured in decibels (dBs). Our extractor hoods have been tested in speed 3 to determine the dB level. The sound level of your extractor hood is affected by: • Type of installation. Exhaust-mode or recirculation-mode. • Length and diameter of the exhaust pipe between extractor and exhaust vent. The longer it is and the smaller the diameter, the louder it gets. • 90° bends. The more bends you have in the exhaust pipe, the greater the sound.
