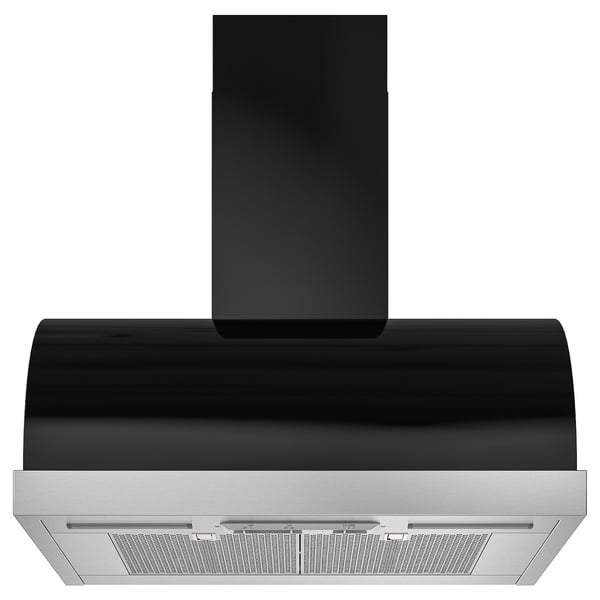

UNGDOMLIG Wall mounted range hood, black
How to get it
5 year limited warranty
This hood has a different design that gives character to any kitchen. And it still fits almost everywhere. A LED lighting strip gives even lighting ‒ making cooking more comfortable.
Product details
5 year limited warranty. Read about the terms in the limited warranty brochure.

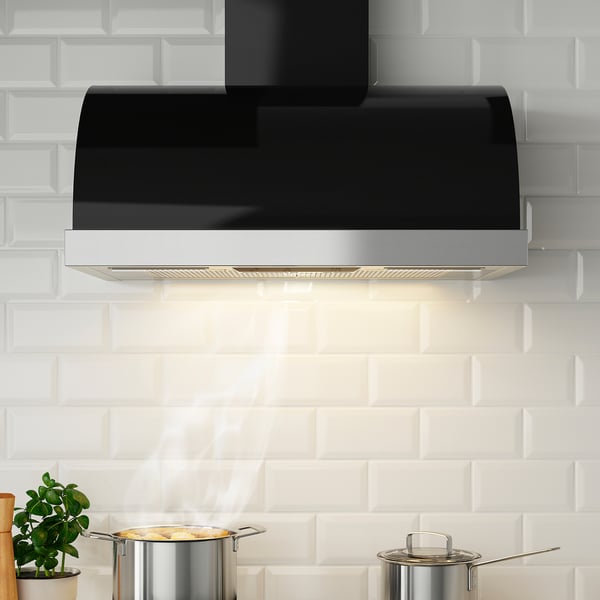

The included LED strip effectively illuminates the cooking surface.
Eliminates cooking fumes and odors quickly and effectively thanks to the large extraction area.

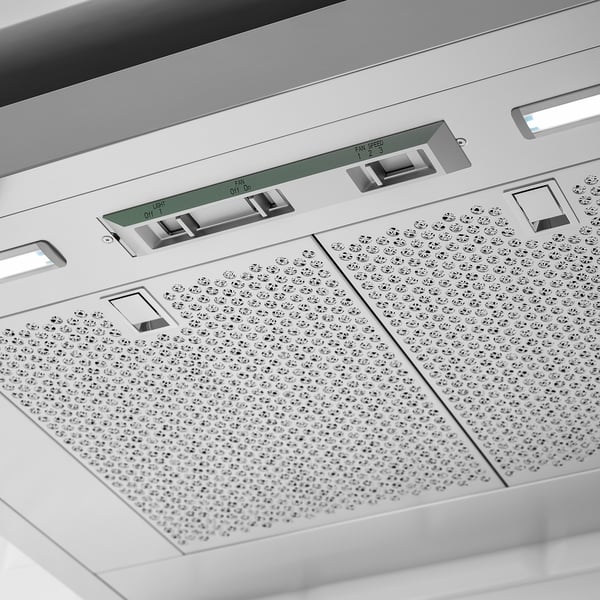

You can easily remove and clean the grease filter. 2 grease filters included.
Can be installed in two ways: ducted to the outside or in recirculation mode fitted with charcoal filter.
IKEA of Sweden
Good to know
7.5 sones.
340 CFM.
Motor power: 240W.
Voltage: 120V.
Wall-mounted range hood with 3 speeds.
For optimal performance when using your range hood on a daily basis, it is recommended that you replace your filter every 6 months.
For recirculation installation: to be completed with NYTTIG FIL 01 and NYTTIG FIL 20 charcoal filter with conversion kit.
You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.
Two grease filters included.
Materials and care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Assembly and documents
Assembly instructions
UNGDOMLIG Wall mounted range hood504.621.40Advice and care instructions

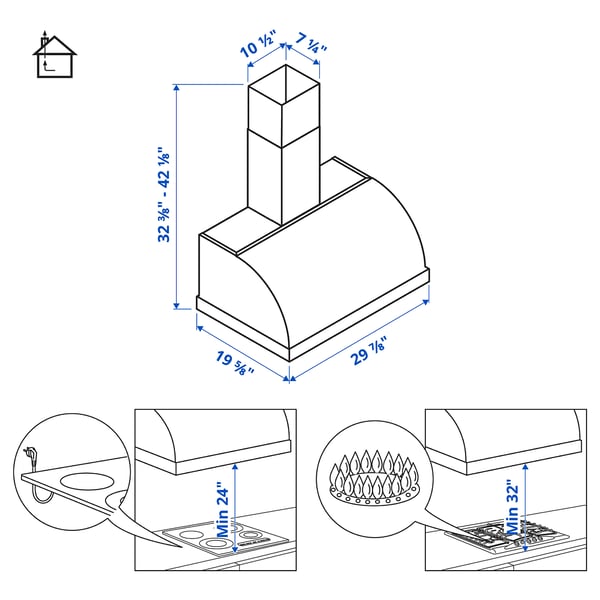

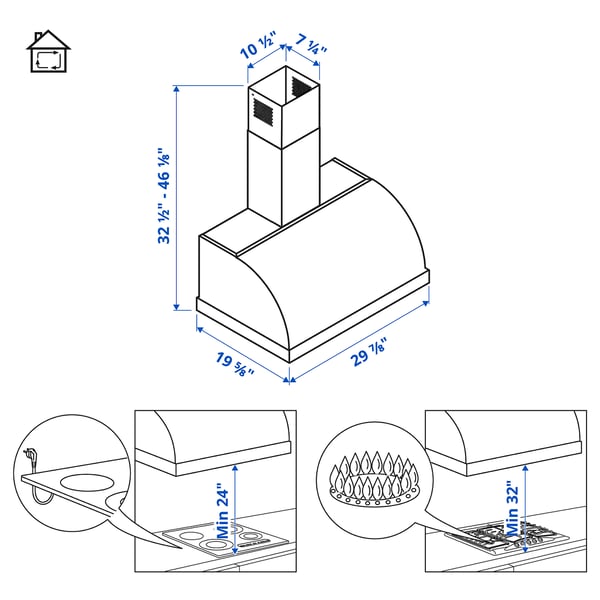

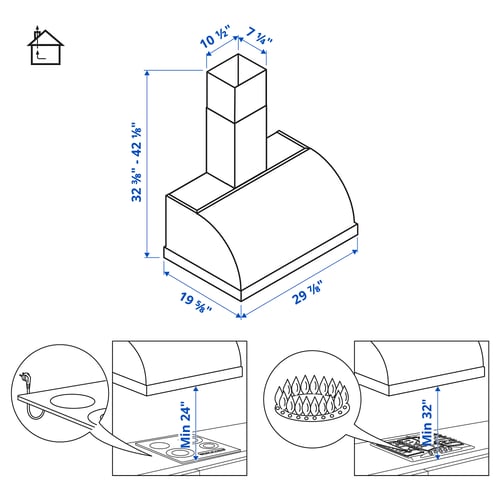

UNGDOMLIG Wall mounted range hood504.621.40Measurements
- Max. height extraction: 107.1 cm (42 1/8 ")
- Min. height extraction: 82.1 cm (32 3/8 ")
- Max. height recirculation: 117.0 cm (46 1/8 ")
- Min. height recirculation: 82.6 cm (32 1/2 ")
- Width: 76.0 cm (29 7/8 ")
- Depth: 50.0 cm (19 5/8 ")
- Height: 47.2 cm (18 5/8 ")
- Width of chimney: 26.7 cm (10 1/2 ")
- Depth of chimney: 18.4 cm (7 1/4 ")
Packaging
UNGDOMLIG
Article Number504.621.40- Width: 78 cm (30 ½ ")
- Height: 48 cm (19 ")
- Length: 89 cm (34 ¾ ")
- Weight: 25.67 kg (56 lb 9 oz)
- Package(s): 1
Ratings and reviews
Customer reviews
Related products
We recommend
Function solution
Sound levels
Sound levels for appliances are measured in decibels (dBs). Our extractor hoods have been tested in speed 3 to determine the dB level. The sound level of your extractor hood is affected by: • Type of installation. Exhaust-mode or recirculation-mode. • Length and diameter of the exhaust pipe between extractor and exhaust vent. The longer it is and the smaller the diameter, the louder it gets. • 90° bends. The more bends you have in the exhaust pipe, the greater the sound.
