UNDANTAG Wall mounted range hood, Stainless steel/glass
How to get it
5 year limited warranty

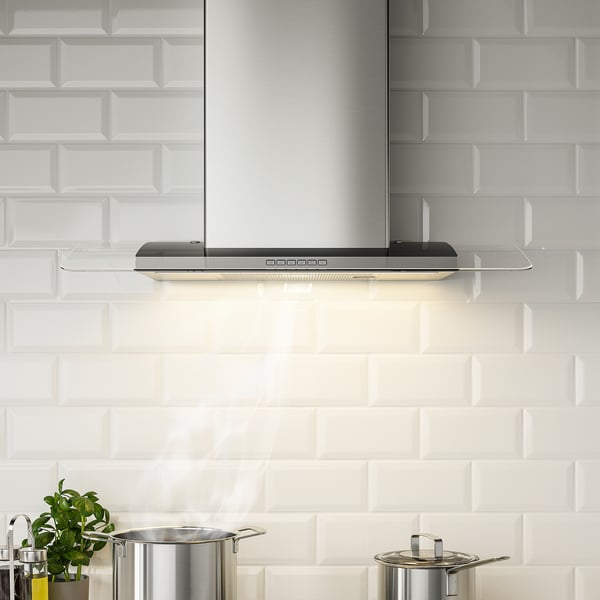

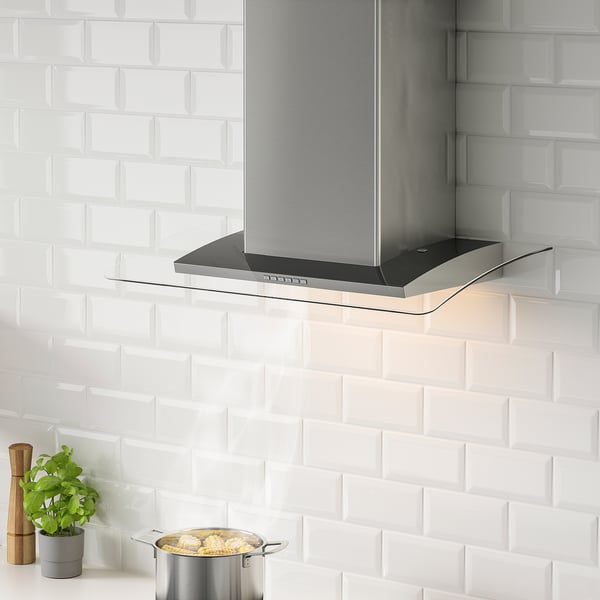

Shiny stainless steel is combined with glass for a light and airy expression. Easy access to the controls in front, and the energy-efficient LED lighting strip spreads an even light over the cooking area.
Product details
5 year limited warranty. Read about the terms in the limited warranty brochure.
Can be installed in two ways: ducted to the outside or in recirculation mode fitted with charcoal filter.
The included LED strip effectively illuminates the cooking surface.

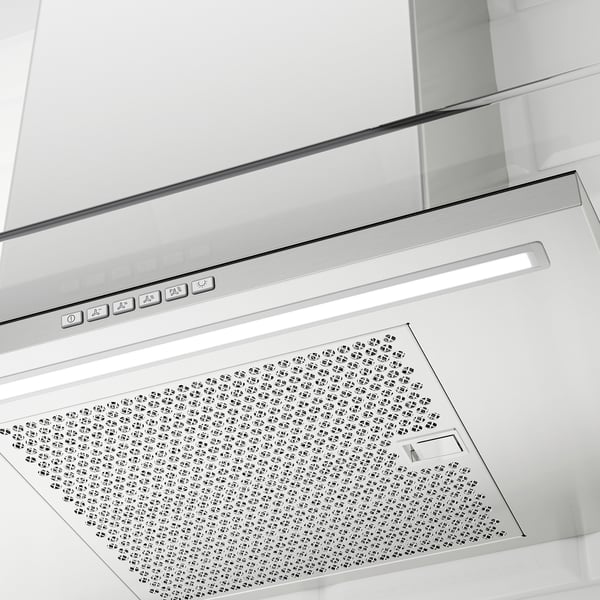

Control panel placed at front for easy access and use.

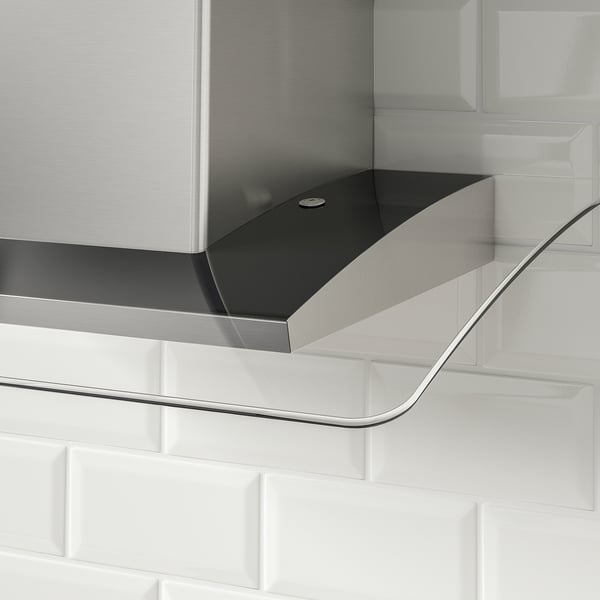

The tempered glass surface is easy to clean.
You can easily remove and clean the grease filter in the dishwasher.
IKEA of Sweden
Good to know
4.5 sones.
250 CFM.
Motor power: 260W.
Voltage: 120V.
Wall-mounted range hood with 4 speeds.
For optimal performance when using your range hood on a daily basis, it is recommended that you replace your filter every 6 months.
For recirculation installation: to be completed with NYTTIG FIL 01 and NYTTIG FIL 10 charcoal filter with conversion kit.
You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.
One grease filter included.
Materials and care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Assembly and documents
Assembly instructions
UNDANTAG Wall mounted range hood904.621.43Advice and care instructions

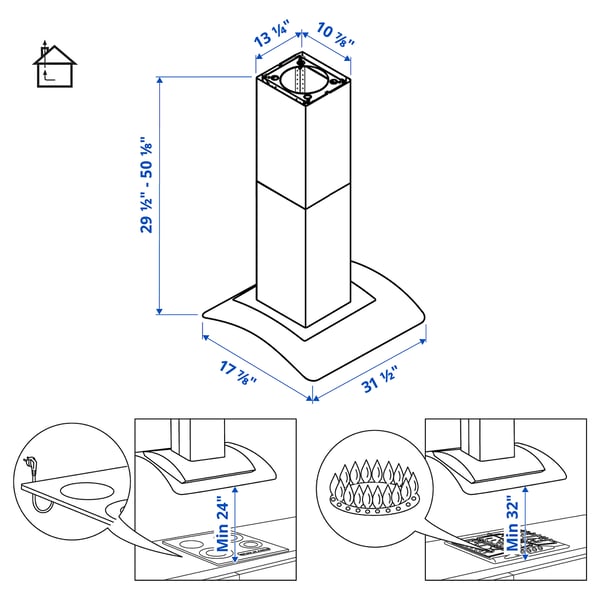

UNDANTAG Wall mounted range hood904.621.43Measurements
- Max. height extraction: 127.3 cm (50 1/8 ")
- Min. height extraction: 75.0 cm (29 1/2 ")
- Max. height recirculation: 137.6 cm (54 1/8 ")
- Min. height recirculation: 84.4 cm (33 1/4 ")
- Width: 80.0 cm (31 1/2 ")
- Depth: 45.3 cm (17 7/8 ")
- Height: 39.5 cm (15 1/2 ")
- Weight: 18.00 kg (39 lb 11 oz)
- Width of chimney: 33.5 cm (13 1/4 ")
- Depth of chimney: 27.5 cm (10 7/8 ")
Packaging
UNDANTAG
Article Number904.621.43- Width: 67 cm (26 ½ ")
- Height: 46 cm (18 ")
- Length: 87 cm (34 ¼ ")
- Weight: 25.20 kg (55 lb 9 oz)
- Package(s): 1
Ratings and reviews
Customer reviews
Function solution
Sound levels
Sound levels for appliances are measured in decibels (dBs). Our extractor hoods have been tested in speed 3 to determine the dB level. The sound level of your extractor hood is affected by: • Type of installation. Exhaust-mode or recirculation-mode. • Length and diameter of the exhaust pipe between extractor and exhaust vent. The longer it is and the smaller the diameter, the louder it gets. • 90° bends. The more bends you have in the exhaust pipe, the greater the sound.
