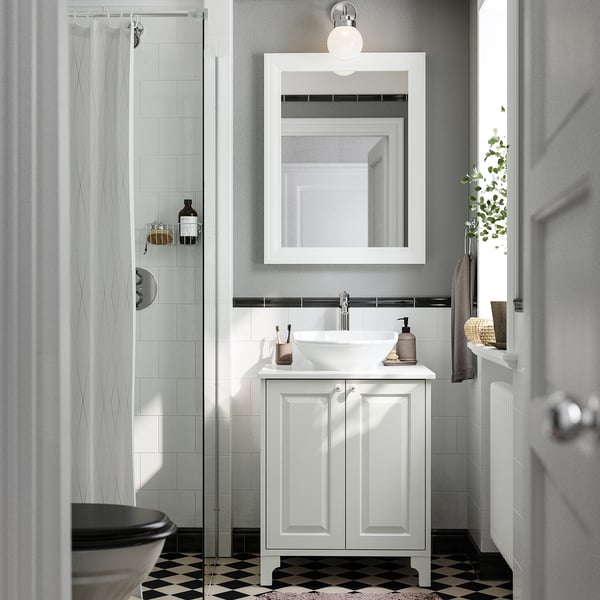

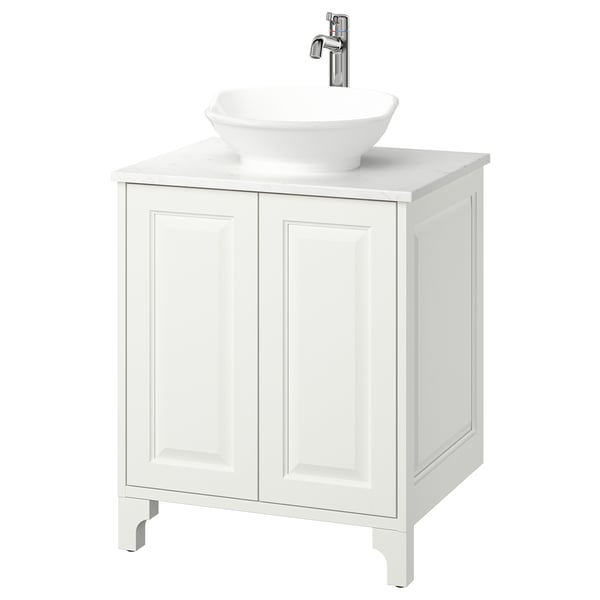

TÄNNFORSEN / VÄSTERSJÖN Sink cab w doors/sink/tap, white/white marble effect, 64x55x91 cm (25x21 1/2x35 7/8 ")
How to get it
10 year limited warranty
TÄNNFORSEN bathroom furniture expresses classic elegance with bevelled edges. This combo with countertop and round sink with raised back forms a beautiful centrepiece with a crafted look.
Product details
A truly classic look in white that is enhanced by beautiful details such as bevelled panels. An expression that breathes tradition and will never become outdated.
Closed storage with capacity for bulkier or taller items, like bottles and baskets, keeping them dust-free and out of sight.

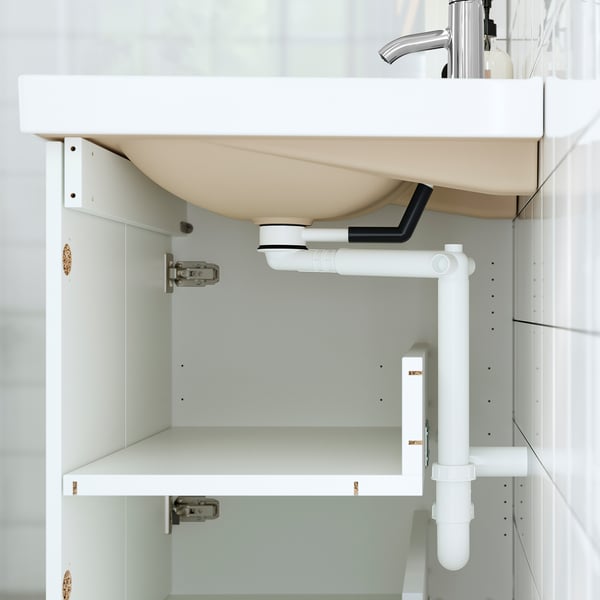

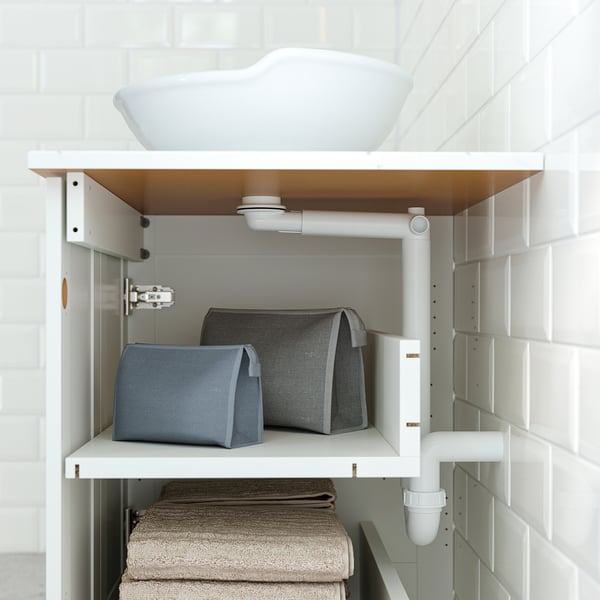

Utilize the full depth of the shelf for storage or fold ¾ of the shelf to make space for piping.
Add knobs or handles to create the spot-on solution for your style and taste. Sold separately.

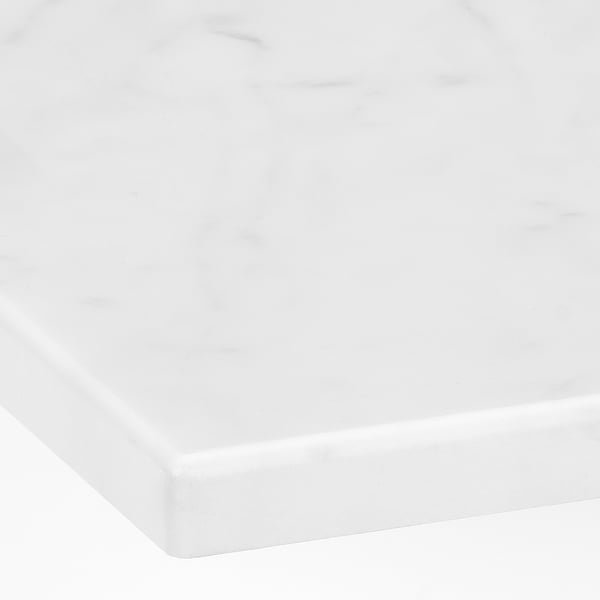

To make it simpler for you, the countertop is available as pre-cut. You need to cut holes for sink and faucet on your own.
This cabinet is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
Combine with other cabinets in the TÄNNFORSEN series to create a coordinated bathroom solution that fits your space and needs.
10-year Limited Warranty. Read about the terms in the Limited Warranty brochure.

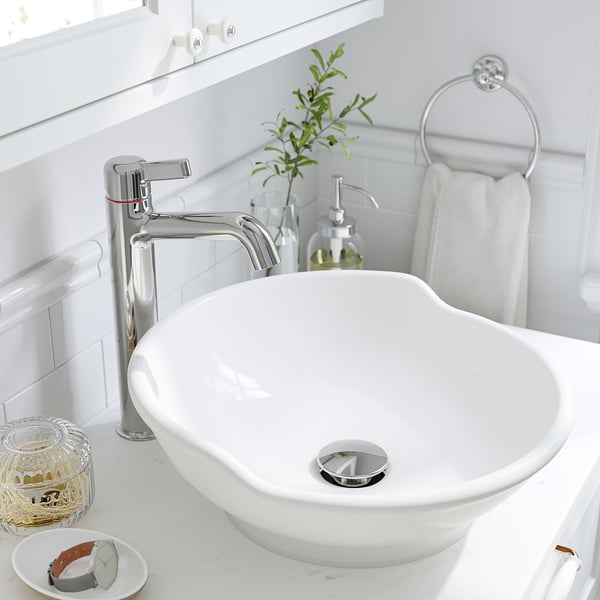

Ceramic countertop sink with round bowl, softly rounded edges and raised back creates traditional expression that feels harmonious and inviting.
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
Knobs and handles are sold separately.
Includes: 1 vanity with doors, 1 countertop, 2 legs, 1 countertop sink, 1 water trap and 1 faucet.
Materials and care
Material
- Side frame/ Support rail/ Door frame:
- Fiberboard, Plastic foil (min. 70% recycled), Plastic edging, Plastic edging (min. 50% recycled)
- Inner side filling/ Door filling:
- Fiberboard, Plastic foil (min. 70% recycled), Melamine foil
- Bottom panel:
- Particleboard, Plastic foil (min. 70% recycled), Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Shelf/ Bottom rail:
- Particleboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
Fiberboard, Plastic foil, Melamine foil
Ceramic, Colored glaze
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
- Leg:
- Solid beech, Acrylic paint
- Plate:
- Stainless steel
- Water trap frame/ Nut/ Outlet pipe:
- Polypropylene
- Washer/ Seals:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene
- Strainer:
- Stainless steel
- Assembly tool:
- ABS plastic
Care
Wipe clean with a mild soapy solution.
Wipe dry with a clean cloth.
Wipe dry with a clean cloth.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the sink.
Safety and compliance
TECHNICAL INFORMATION
VOXNAN
Faucet, tall, chrome plated
Article Number605.332.55| Type of faucet | Sink faucet, tall |
| Max. flow rate at 3 bar | 4.5 l/min (1.2 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | 9/16" x 24UNEF |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Third party certified according to local standards by |

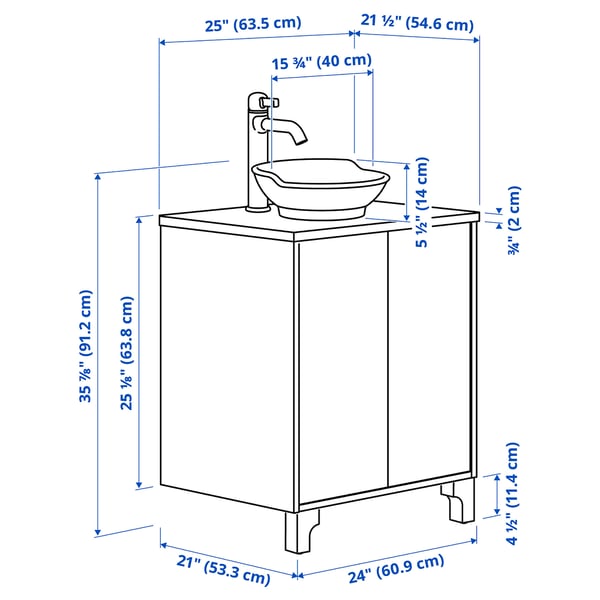

Measurements
- Width: 63.5 cm (25 ")
- Depth: 54.6 cm (21 1/2 ")
- Height: 91.2 cm (35 7/8 ")
Packaging
TÄNNFORSEN
Article Number605.354.62- Width: 63 cm (24 ½ ")
- Height: 10 cm (4 ")
- Length: 69 cm (27 ¼ ")
- Weight: 24.06 kg (53 lb 1 oz)
- Package(s): 1
TOLKEN
Article Number205.553.86- Width: 55 cm (21 ¾ ")
- Height: 3 cm (1 ")
- Length: 76 cm (29 ¾ ")
- Weight: 5.51 kg (12 lb 2 oz)
- Package(s): 1
VÄSTERSJÖN
Article Number005.810.08- Width: 43 cm (16 ¾ ")
- Height: 18 cm (7 ")
- Length: 43 cm (16 ¾ ")
- Weight: 8.07 kg (17 lb 13 oz)
- Package(s): 1
VOXNAN
Article Number605.332.55- Width: 23 cm (8 ¾ ")
- Height: 7 cm (2 ¾ ")
- Length: 41 cm (16 ¼ ")
- Weight: 1.83 kg (4 lb 1 oz)
- Package(s): 1
ALMAÅN
Article Number905.355.40- Width: 11 cm (4 ¼ ")
- Height: 8 cm (3 ¼ ")
- Length: 12 cm (4 ¾ ")
- Weight: 0.53 kg (1 lb 3 oz)
- Package(s): 1
RÄNNILEN
Article Number504.224.13- Width: 27 cm (10 ¾ ")
- Height: 8 cm (3 ¼ ")
- Length: 44 cm (17 ¼ ")
- Weight: 0.39 kg (14 oz)
- Package(s): 1
