IVÖSJÖN / SKATSJÖN Vanity w slid drs/sink/faucet, green, 50x35 cm (19 5/8x13 3/4 ")
How to get it
Made for small bathrooms. This solution gives you a deep wash-basin that minimizes splashes, a mixer tap with aerator and a base cabinet with both open and closed storage for towels and bottles.
Product details
Fits perfectly in small bathrooms since the sink base is only 50 cm wide and has sliding doors that don’t take up any extra space when you open them.
You get plenty of shelf space and space for piping in the back of the cabinet.
Display the things you love in the open area to add a personal touch – and hide the things that often get cluttered behind the sliding doors.
No corners to bump into as the sink is softly rounded.
This is a durable faucet that you can use for many years, since the hard, ceramic discs withstand the friction that always occurs when you change the temperature of the water.
Goes nicely with the other bathroom furniture in the IVÖSJÖN series.
Good to know
Sink, faucet, water trap and sink base cabinet with 2 doors included.
Ceramic sinks are kiln-fired, which makes each one unique and the size may vary slightly from the measurements given.
Materials and care
Material
- Panel/ Door panel:
- ABS plastic (min. 50% recycled)
- Main parts:
- Polypropylene [min. 50% recycled]
- Feet:
- Polyamide
- China, Colored glaze
- Water trap frame/ Nut/ Outlet pipe:
- Polypropylene
- Washer/ Seals:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene
- Strainer:
- Stainless steel
- Assembly tool:
- ABS plastic
- ABS plastic
Safety and compliance
Assembly and documents
Assembly instructions
IVÖSJÖN Sink base cabinet205.972.92SKATSJÖN Sink505.042.63RÄNNILEN Water trap, 1 bowl504.224.13SALJEN Bath faucet204.003.23Advice and care instructions
IVÖSJÖN Sink base cabinet205.972.92SALJEN Bath faucet204.003.23SALJEN Bath faucet204.003.23TECHNICAL INFORMATION
SALJEN
Bath faucet, black
Article Number204.003.23| Type of faucet | Sink faucet, |
| Max. flow rate at 3 bar | 4.5 l/min (1.2 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | 9/16" x 24UNEF |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | Yes |
| Third party certified according to local standards by |

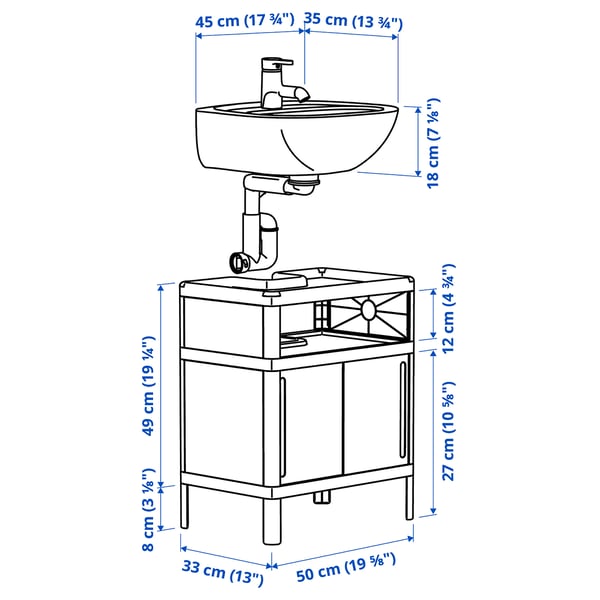

Measurements
- Width: 50.0 cm (19 5/8 ")
- Depth: 35.0 cm (13 3/4 ")
Packaging
IVÖSJÖN
Article Number205.972.92- Width: 33 cm (13 ")
- Height: 9 cm (3 ½ ")
- Length: 50 cm (19 ¾ ")
- Weight: 2.91 kg (6 lb 7 oz)
- Package(s): 1
SKATSJÖN
Article Number505.042.63- Width: 38 cm (14 ¾ ")
- Height: 22 cm (8 ¾ ")
- Length: 49 cm (19 ")
- Weight: 12.50 kg (27 lb 9 oz)
- Package(s): 1
RÄNNILEN
Article Number504.224.13- Width: 27 cm (10 ¾ ")
- Height: 8 cm (3 ¼ ")
- Length: 44 cm (17 ¼ ")
- Weight: 0.39 kg (14 oz)
- Package(s): 1
SALJEN
Article Number204.003.23- Width: 22 cm (8 ¾ ")
- Height: 6 cm (2 ¼ ")
- Length: 26 cm (10 ")
- Weight: 0.48 kg (1 lb 1 oz)
- Package(s): 1
