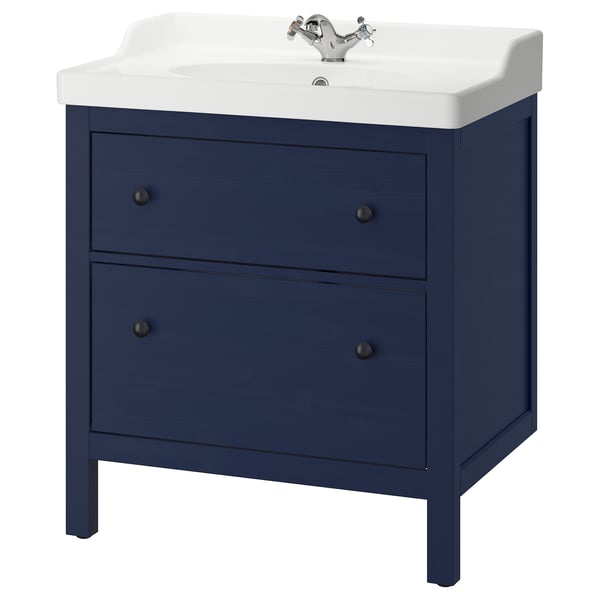

HEMNES / RUTSJÖN Sink cab w drawers/sink/tap, blue, 80x56x94 cm (31 3/8x21 7/8x37 ")
How to get it
A crafted Scandinavian expression with clean lines combined with smooth-running drawers and a water-saving faucet. The gray finish feels warm and timeless.
Product details
Smooth-running and soft-closing drawers with pull-out stop.
You can easily see and reach your things because the drawers pull out fully.
The included water trap is easy to connect to the drain, washing machine and dryer because it is flexible.
Unique water trap design gives room for a full sized drawer.
Good to know
Knobs included.
Strainer and water-trap included.
Secure that the material in your bathroom walls can support the weight of the furniture. If you are uncertain about the installation, contact a professional.
Two people are needed to assemble this furniture.
Please note that the sink may be up to ¾" wider than the sink cabinet to protect it from water leakage.
Materials and care
Material
- Main parts/ Drawer front:
- Solid pine, Adhesive, Stain, Clear acrylic lacquer
- Drawer sides/ Drawer back/ Drawer divider:
- Solid pine, Adhesive, Clear acrylic lacquer
- Drawer bottom:
- Particleboard, High-pressure melamine laminate, High-pressure melamine laminate, Plastic edging
- Cover/ Spring:
- Stainless steel
- Cover cap/ Mechanism:
- Acetal plastic
- Sealing ring:
- Synthetic rubber
- Cover cap:
- Polycarbonate/ABS plastic
- Main parts:
- Ceramic, Colored glaze
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
- Water trap frame/ Nut/ Outlet pipe:
- Polypropylene
- Washer/ Seals:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene
- Strainer:
- Stainless steel
- Assembly tool:
- ABS plastic
Care
Wipe clean using a damp cloth and a mild cleaner.
Wipe dry with a clean cloth.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe clean with a water dampened soft cloth and a mild non-abrasive dish detergent or soap, if necessary.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the sink.
Wipe clean with a water dampened soft cloth and a mild non-abrasive dish detergent or soap, if necessary.
Safety and compliance
Assembly and documents
TECHNICAL INFORMATION
RUNSKÄR
Sink faucet, chrome plated
Article Number305.331.53| Type of faucet | Sink faucet, |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 1 bar (0,1MPa) (14.5 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | 9/16" x 24UNEF |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Third party certified according to local standards by |

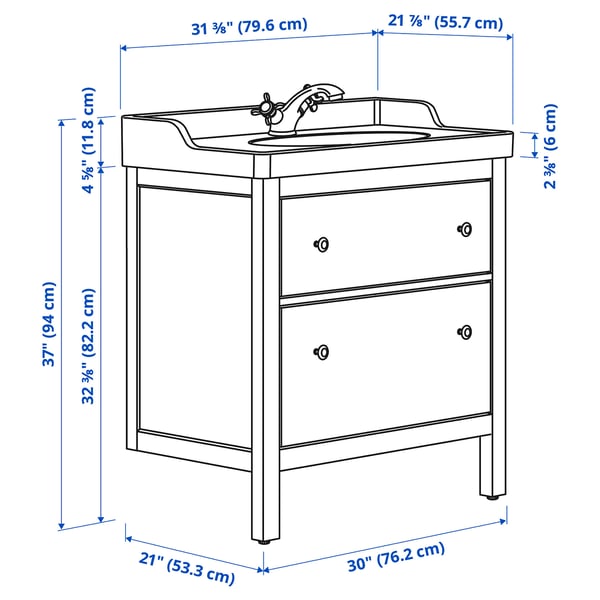

Measurements
- Width: 79.6 cm (31 3/8 ")
- Sink cabinet width: 76.2 cm (30 ")
- Depth: 55.7 cm (21 7/8 ")
- Height: 94.0 cm (37 ")
Packaging
This product comes as 4 packages.
HEMNES
Article Number606.053.08- Width: 74 cm (29 ")
- Height: 10 cm (3 ¾ ")
- Length: 87 cm (34 ¼ ")
- Weight: 21.45 kg (47 lb 5 oz)
- Package(s): 1
RUTSJÖN
Article Number705.454.13- Width: 60 cm (23 ½ ")
- Height: 24 cm (9 ½ ")
- Length: 84 cm (32 ¾ ")
- Weight: 28.77 kg (63 lb 7 oz)
- Package(s): 1
RUNSKÄR
Article Number305.331.53- Width: 24 cm (9 ½ ")
- Height: 11 cm (4 ¼ ")
- Length: 28 cm (10 ¾ ")
- Weight: 1.52 kg (3 lb 5 oz)
- Package(s): 1
RÄNNILEN
Article Number504.224.13- Width: 27 cm (10 ¾ ")
- Height: 8 cm (3 ¼ ")
- Length: 44 cm (17 ¼ ")
- Weight: 0.39 kg (14 oz)
- Package(s): 1
