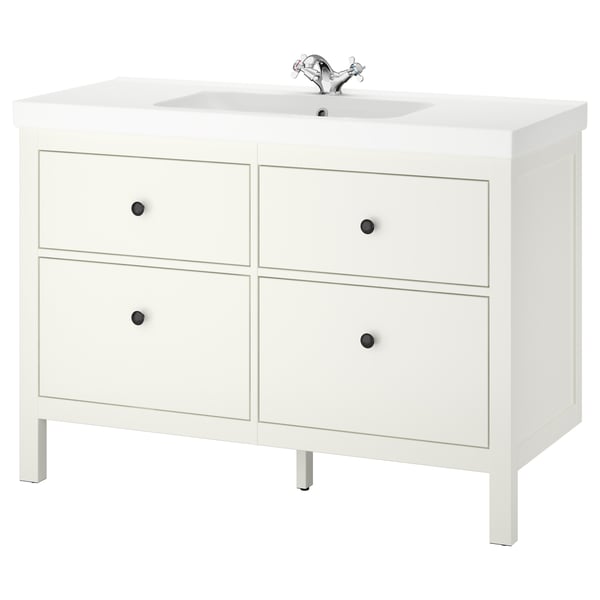

HEMNES / ORRSJÖN Sink cab w drawers/sink/tap, white, 125x55x89 cm (49x21 3/4x34 7/8 ")
How to get it
A simple, crafted look with Scandinavian appeal combined with modern function like smooth-running drawers. 4 spacious drawers for all your things or why not give each family member their own drawer?
Product details
Coordinates nicely with other products in the HEMNES series.
The straightforward, crafted look of the drawer and knobs enhances the Scandinavian expression.
1 large bowl and 4 spacious drawers make this solution perfect for sharing.

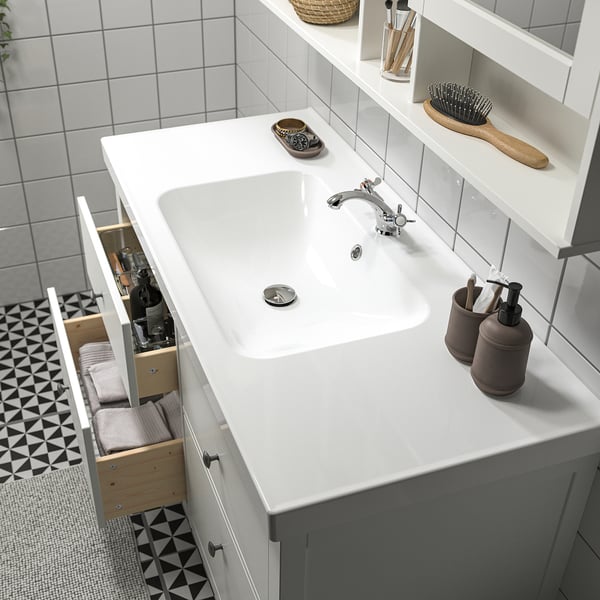

Smooth, durable and easy-to-clean ceramic sink with space for toothbrushes, soap dispenser and other smaller things on the wide edges.
The drawers are rigorously tested to make sure they can be opened and closed over many years of morning rush hour.
The smooth-running drawers with pull-out stop, open all the way for a good overview without falling out.
You can sense the calm every time you close the drawers thanks to the soft-closing mechanism. No worries about fingers getting trapped.
The deep bottom drawer has space for larger things like towels and hairdryer. The top drawer is suitable for smaller items like brushes, creams, sprays and accessories.
You can make good use of the space inside the drawers thanks to the smart design of the water trap that leads the piping into the far back of the cabinet.
Good to know
Knobs included.
Strainer and water-trap included.
Secure that the material in your bathroom walls can support the weight of the furniture. If you are uncertain about the installation, contact a professional.
Two people are needed to assemble this furniture.
Materials and care
Material
- Frame:
- Fiberboard, Pigmented epoxy/polyester powder coating
- Filling, side:
- Particleboard, Melamine foil, Acrylic paint, Melamine foil
- Support rail:
- Fiberboard, Acrylic paint
- Drawer sides/ Drawer back/ Drawer divider:
- Solid pine, Clear acrylic lacquer
- Drawer bottom:
- Particleboard, Melamine foil, Melamine foil, Plastic edging
- Drawer front:
- Fiberboard, Pigmented epoxy/polyester powder coating, Pigmented epoxy/polyester powder coating
- Cover/ Spring:
- Stainless steel
- Cover cap/ Mechanism:
- Acetal plastic
- Sealing ring:
- Synthetic rubber
- Cover cap:
- Polycarbonate/ABS plastic
- Main parts:
- Ceramic, Colored glaze
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
- Water trap frame/ Nut/ Outlet pipe:
- Polypropylene
- Washer/ Seals:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene
- Strainer:
- Stainless steel
- Assembly tool:
- ABS plastic
Care
Wipe clean using a damp cloth and a mild cleaner.
Wipe dry with a clean cloth.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the sink.
Safety and compliance
Assembly and documents
TECHNICAL INFORMATION
RUNSKÄR
Sink faucet, chrome plated
Article Number305.331.53| Type of faucet | Sink faucet, |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 1 bar (0,1MPa) (14.5 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | 9/16" x 24UNEF |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Third party certified according to local standards by |

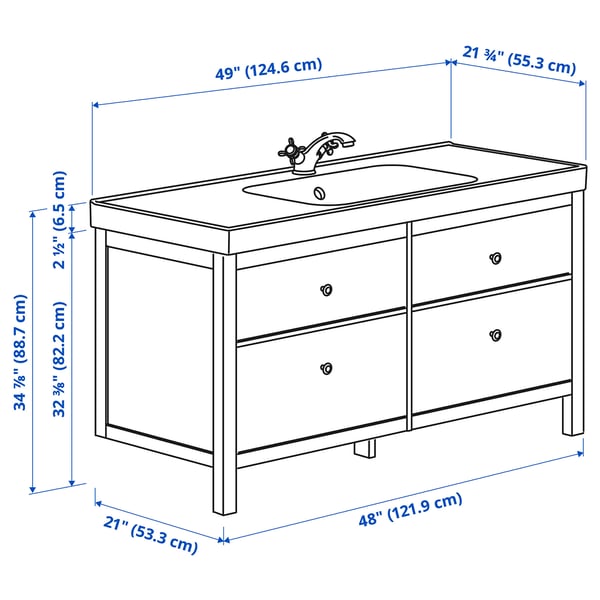

Measurements
- Width: 124.6 cm (49 ")
- Depth: 55.3 cm (21 3/4 ")
- Height: 88.7 cm (34 7/8 ")
Packaging
HEMNES
Article Number406.053.14- Width: 60 cm (23 ¾ ")
- Height: 7 cm (2 ¾ ")
- Length: 93 cm (36 ¾ ")
- Weight: 22.12 kg (48 lb 12 oz)
- Package(s): 1
- Width: 62 cm (24 ½ ")
- Height: 9 cm (3 ¾ ")
- Length: 87 cm (34 ¼ ")
- Weight: 23.40 kg (51 lb 9 oz)
- Package(s): 1
ORRSJÖN
Article Number305.451.08- Width: 60 cm (23 ½ ")
- Height: 19 cm (7 ¼ ")
- Length: 129 cm (50 ½ ")
- Weight: 39.80 kg (87 lb 12 oz)
- Package(s): 1
RUNSKÄR
Article Number305.331.53- Width: 24 cm (9 ½ ")
- Height: 11 cm (4 ¼ ")
- Length: 28 cm (10 ¾ ")
- Weight: 1.52 kg (3 lb 5 oz)
- Package(s): 1
RÄNNILEN
Article Number504.224.13- Width: 27 cm (10 ¾ ")
- Height: 8 cm (3 ¼ ")
- Length: 44 cm (17 ¼ ")
- Weight: 0.39 kg (14 oz)
- Package(s): 1
