HAVBÄCK / ORRSJÖN Sink cab w drawers/sink/tap, beige/black marble effect, 94.0x54.6x72.1 cm (37x21 1/2x28 3/8 ")
How to get it
10 year limited warranty

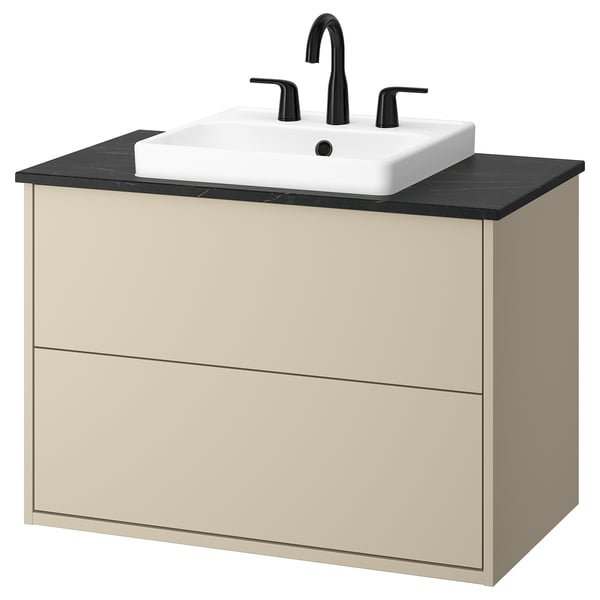

HAVBÄCK bathroom furniture has a clean, straightforward design. This sink cabinet with semi-recessed sink and countertop becomes a personal centrepiece with your choice of knobs or handles.
Product details
The matt beige finish serves as the perfect base for creating a relaxing bathroom retreat. It has a clean and straightforward expression that is easy to personalize with your choice of knobs or handles.

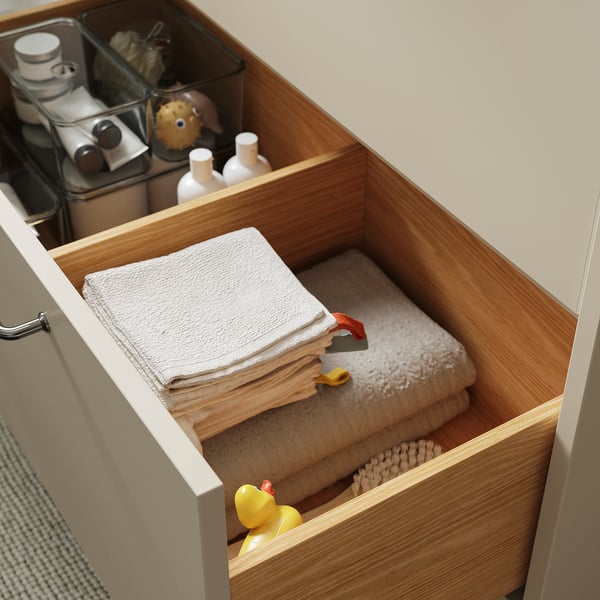

Generous, full drawer storage capacity for all your essentials as piping is led through the back and not via a cut-out in the drawers. Drawers open all the way for a good overview.

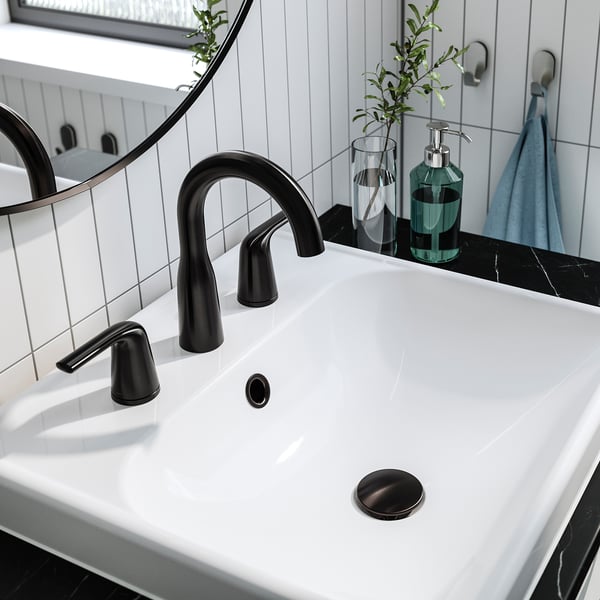

The ceramic sink with its soft shapes and durable surface is made with the best materials and will outlast many years of wear and tear.
Add knobs or handles to create the spot-on solution for your style and taste. Sold separately.
To make it simpler for you, the countertop is available as pre-cut. You need to cut holes for sink and faucet on your own.
This cabinet is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
Combine with other cabinets in the HAVBÄCK series to create a coordinated bathroom solution that fits your space and needs.
10-year Limited Warranty. Read about the terms in the Limited Warranty brochure.
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
Knobs and handles are sold separately.
Materials and care
Material
- Frame/ Middle rail/ Drawer front/ Drawer sides/ Drawer divider:
- Particleboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Top rail:
- Fiberboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Drawer back:
- Particleboard, Plastic foil
- Drawer bottom:
- Fiberboard, Plastic foil
Fiberboard, Plastic foil, Melamine foil
- Cover/ Spring:
- Stainless steel
- Cover cap/ Mechanism:
- Acetal plastic
- Sealing ring:
- Synthetic rubber
- Cover cap:
- Polycarbonate/ABS plastic
- Main parts:
- Ceramic, Colored glaze
- Spout:
- Stainless steel, Metallized
- Handle:
- Zinc, Metallized
- Water trap frame/ Nut/ Outlet pipe:
- Polypropylene
- Washer/ Seals:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene
- Strainer:
- Stainless steel
- Assembly tool:
- ABS plastic
Care
Wipe clean with a mild soapy solution.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe dry with a clean cloth.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the sink.
Safety and compliance
TECHNICAL INFORMATION
MACKSJÖN
Widespread sink faucet, black, 20 cm (8 ")
Article Number306.013.64| Type of faucet | Sink faucet, |
| Max. flow rate at 3 bar | 4.5 l/min (1.2 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Hose connection size | 9/16" x 24UNEF |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Third party certified according to local standards by |

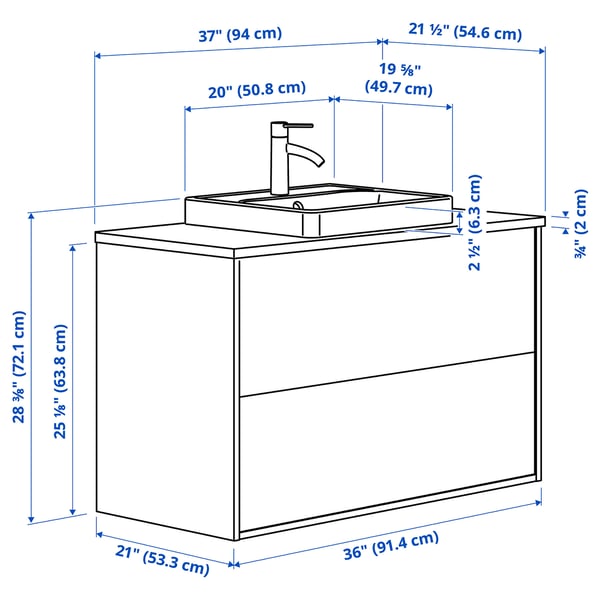

Measurements
- Width: 94.0 cm (37 ")
- Depth: 54.6 cm (21 1/2 ")
- Height: 72.1 cm (28 3/8 ")
Packaging
HAVBÄCK
Article Number305.740.11- Width: 57 cm (22 ¼ ")
- Height: 8 cm (3 ")
- Length: 92 cm (36 ¼ ")
- Weight: 19.62 kg (43 lb 4 oz)
- Package(s): 1
- Width: 56 cm (22 ")
- Height: 6 cm (2 ½ ")
- Length: 95 cm (37 ½ ")
- Weight: 17.40 kg (38 lb 6 oz)
- Package(s): 1
TOLKEN
Article Number505.553.80- Width: 55 cm (21 ¾ ")
- Height: 3 cm (1 ")
- Length: 106 cm (41 ¾ ")
- Weight: 8.00 kg (17 lb 10 oz)
- Package(s): 1
ORRSJÖN
Article Number306.054.42- Width: 54 cm (21 ")
- Height: 18 cm (7 ")
- Length: 55 cm (21 ½ ")
- Weight: 13.40 kg (29 lb 9 oz)
- Package(s): 1
MACKSJÖN
Article Number306.013.64- Width: 33 cm (12 ¾ ")
- Height: 6 cm (2 ¼ ")
- Length: 44 cm (17 ¼ ")
- Weight: 2.17 kg (4 lb 13 oz)
- Package(s): 1
RÄNNILEN
Article Number504.224.13- Width: 27 cm (10 ¾ ")
- Height: 8 cm (3 ¼ ")
- Length: 44 cm (17 ¼ ")
- Weight: 0.39 kg (14 oz)
- Package(s): 1
