ALLMÄNBILDAD Wall mounted range hood, Stainless steel
How to get it
5 year limited warranty

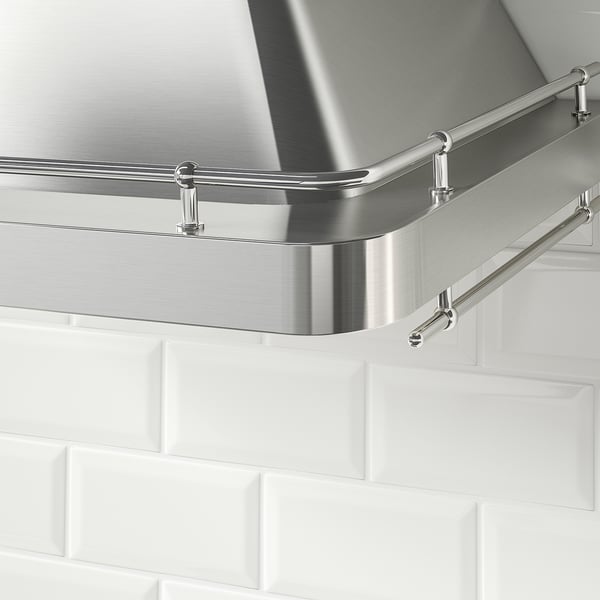

The spice rack and rails for hanging utensils clears up space on your countertop and enhances the traditional look in your kitchen. A LED lighting strip gives even light – making it more convenient to cook.
Product details
5 year limited warranty. Read about the terms in the limited warranty brochure.

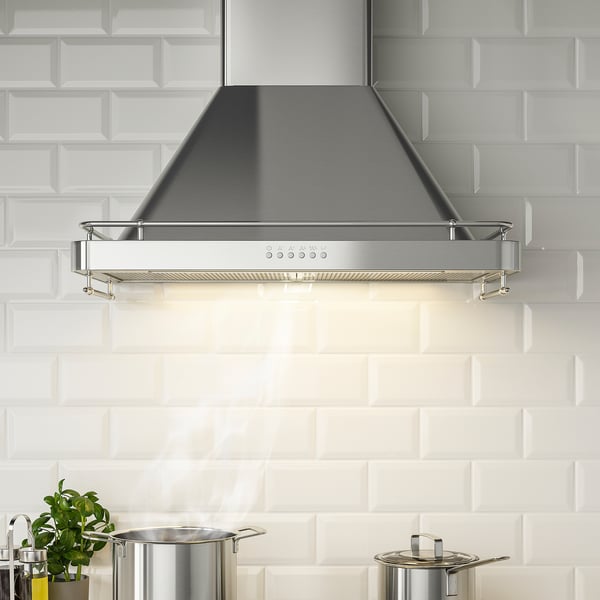

The included LED strip effectively illuminates the cooking surface.

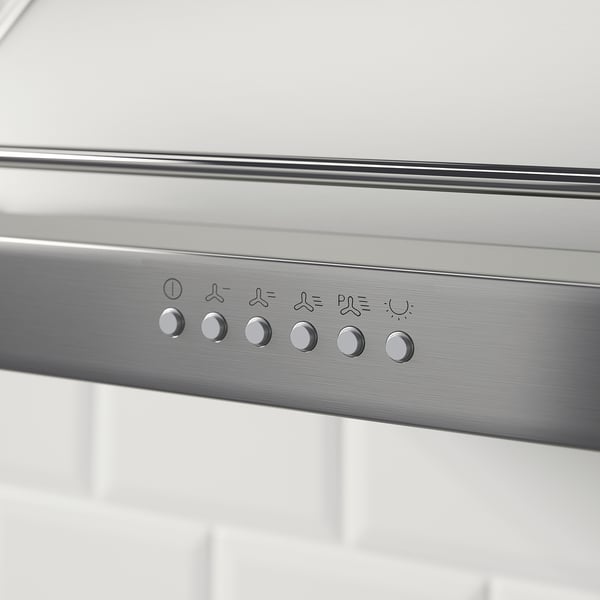

Control panel placed at front for easy access and use.
Integrated, easily accessible spice rack; clears work space on the countertop.

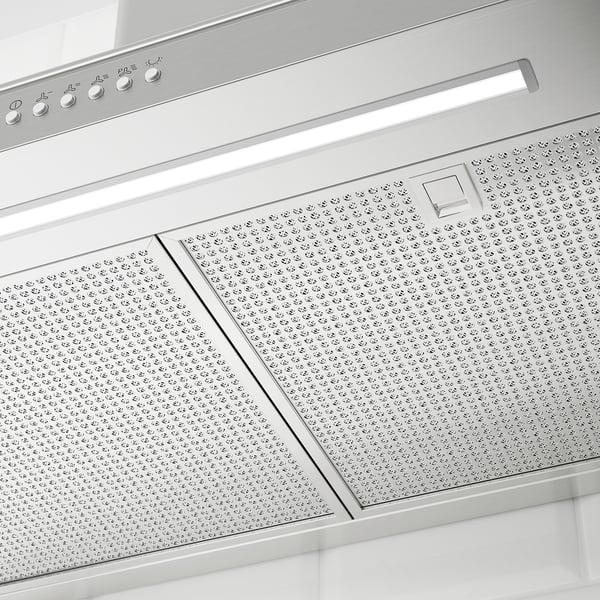

You can easily remove and clean the grease filter. 2 grease filters included.
Can be installed in two ways: ducted to the outside or in recirculation mode fitted with charcoal filter.
IKEA of Sweden
Good to know
5 sones.
260 CFM.
Motor power: 240W.
Voltage: 120V.
Wall-mounted range hood with 4 speeds.
For optimal performance when using your range hood on a daily basis, it is recommended that you replace your filter every 6 months.
For recirculation installation: to be completed with NYTTIG FIL 01 and NYTTIG FIL 20 charcoal filter with conversion kit.
You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.
Two grease filters included.
Materials and care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Assembly and documents
Assembly instructions
ALLMÄNBILDAD Wall mounted range hood704.621.44Advice and care instructions

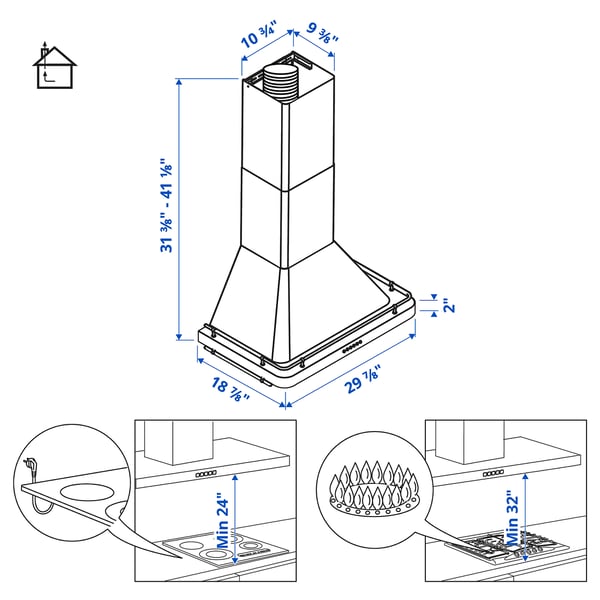

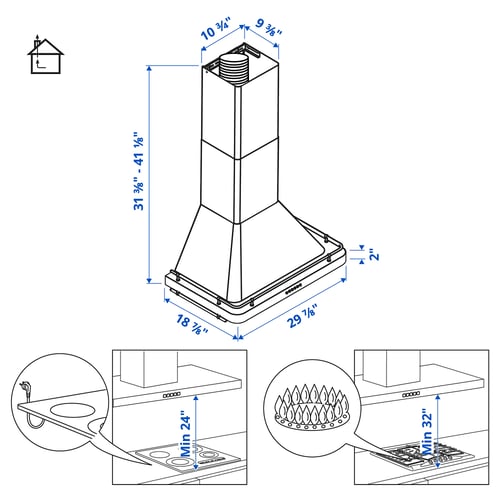

ALLMÄNBILDAD Wall mounted range hood704.621.44Measurements
- Max. height extraction: 104.5 cm (41 1/8 ")
- Min. height extraction: 79.7 cm (31 3/8 ")
- Max. height recirculation: 114.6 cm (45 1/8 ")
- Min. height recirculation: 81.7 cm (32 1/8 ")
- Width: 76.0 cm (29 7/8 ")
- Depth: 48.0 cm (18 7/8 ")
- Weight: 17.60 kg (38.80 lb)
- Width of chimney: 27.2 cm (10 3/4 ")
- Depth of chimney: 23.8 cm (9 3/8 ")
Packaging
ALLMÄNBILDAD
Article Number704.621.44- Width: 64 cm (25 ¼ ")
- Height: 59 cm (23 ¼ ")
- Length: 86 cm (33 ¾ ")
- Weight: 25.40 kg (55 lb 16 oz)
- Package(s): 1
Ratings and reviews
Customer reviews
Function solution
Sound levels
Sound levels for appliances are measured in decibels (dBs). Our extractor hoods have been tested in speed 3 to determine the dB level. The sound level of your extractor hood is affected by: • Type of installation. Exhaust-mode or recirculation-mode. • Length and diameter of the exhaust pipe between extractor and exhaust vent. The longer it is and the smaller the diameter, the louder it gets. • 90° bends. The more bends you have in the exhaust pipe, the greater the sound.
