How to get it
10 year limited warranty

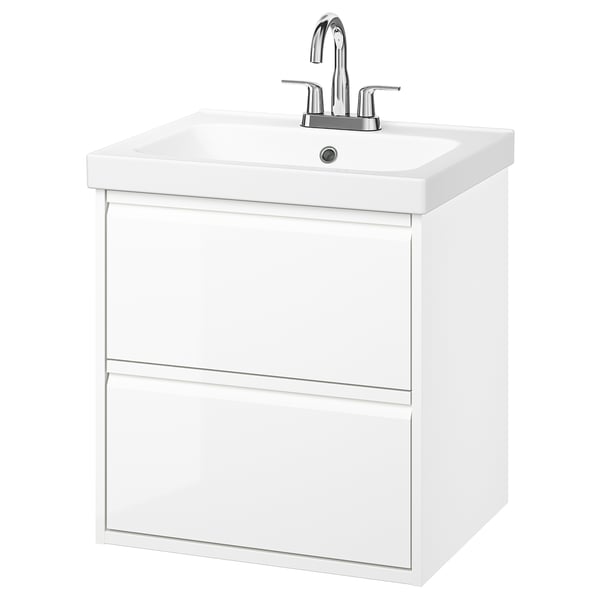

ÄNGSJÖN bathroom furniture has a modern appeal with minimal details so you can start each day with a clean slate. This combo has 2 spacious drawers and room on the sink for toothbrush and soap.
Product details
The high gloss finish in white creates a sleek and contemporary expression emphasised with integrated handles for a refined look.

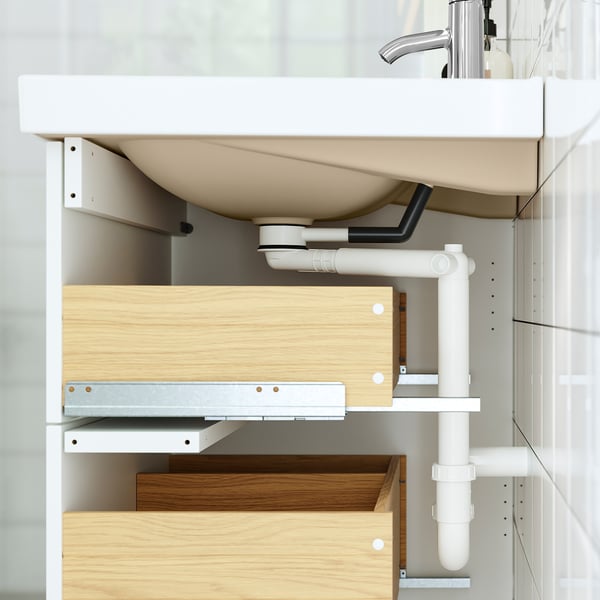

Generous, full drawer storage capacity for all your essentials as piping is led through the back and not via a cut-out in the drawers. Drawers open all the way for a good overview.

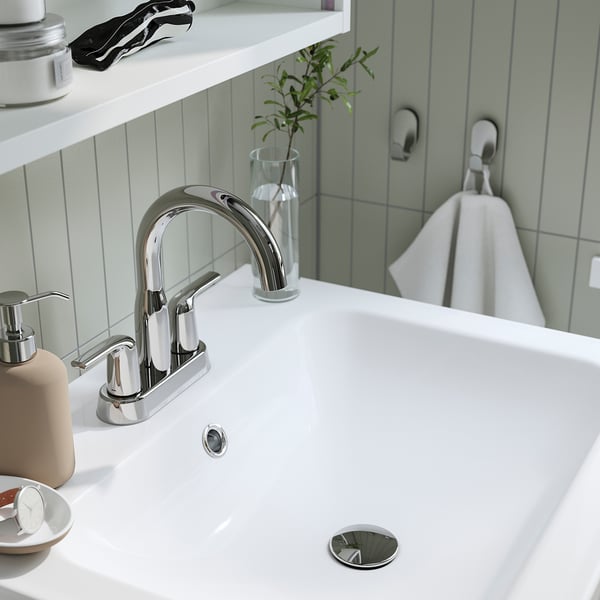

The ceramic sink with its soft shapes and durable surface is made with the best materials and will outlast many years of wear and tear.

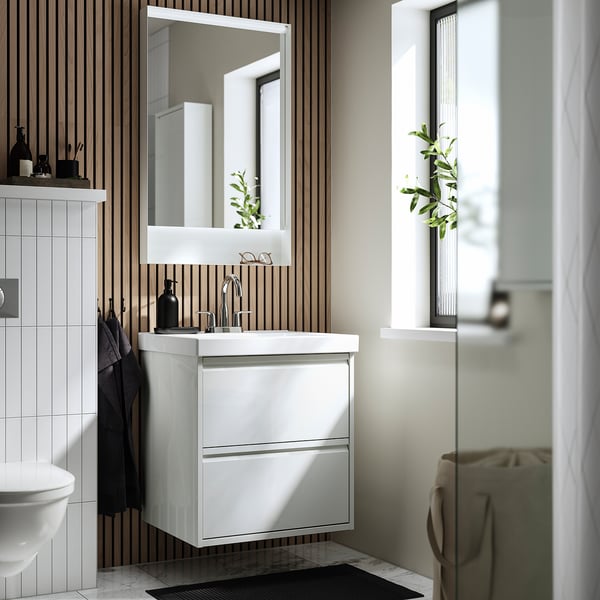

This cabinet is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
Combine with other cabinets in the ÄNGSJÖN series to create a coordinated bathroom solution that fits your space and needs.
10-year Limited Warranty. Read about the terms in the Limited Warranty brochure.
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
Materials and care
Material
- Frame/ Bottom panel:
- Particleboard, Plastic foil (min. 50% recycled), Plastic foil, Plastic edging, Plastic edging
- Top rail:
- Fiberboard, Plastic foil (min. 50% recycled), Plastic edging, Plastic edging
- Middle rail/ Drawer divider/ Drawer sides/ Drawer back:
- Particleboard, Plastic foil, Plastic edging, Plastic edging
- Drawer front:
- Fiberboard, Plastic foil (min. 50% recycled), Plastic foil, Plastic edging, Plastic edging
- Drawer bottom:
- Fiberboard, Plastic foil, Plastic foil
- Cover/ Spring:
- Stainless steel
- Cover cap/ Mechanism:
- Acetal plastic
- Sealing ring:
- Synthetic rubber
- Cover cap:
- Polycarbonate/ABS plastic
- Main parts:
- Ceramic, Colored glaze
- Spout:
- Chrome plated, Stainless steel
- Handle:
- Zinc, Chrome plated
- Water trap frame/ Nut/ Outlet pipe:
- Polypropylene
- Washer/ Seals:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene
- Strainer:
- Stainless steel
- Assembly tool:
- ABS plastic
Care
Wipe clean with a mild soapy solution.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe dry with a clean cloth.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the sink.
Safety and compliance
Assembly and documents
Assembly instructions
ÄNGSJÖN Sink cabinet with drawers705.353.34ORRSJÖN Sink106.060.32ORRSJÖN Sink106.060.32MACKSJÖN Center set sink faucet006.008.32RÄNNILEN Water trap, 1 bowl504.224.13Advice and care instructions
ÄNGSJÖN Sink cabinet with drawers705.353.34MACKSJÖN Center set sink faucet006.008.32TECHNICAL INFORMATION
MACKSJÖN
Center set sink faucet, chrome plated, 10 cm (4 ")
Article Number006.008.32| Type of faucet | Sink faucet, |
| Max. flow rate at 3 bar | 4.5 l/min (1.2 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Hose connection size | 9/16" x 24UNEF |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Third party certified according to local standards by |

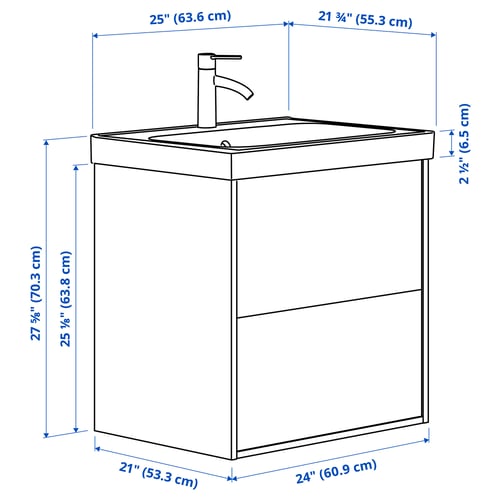

Measurements
- Width: 63.6 cm (25 ")
- Depth: 55.3 cm (21 3/4 ")
- Height: 70.3 cm (27 5/8 ")
Packaging
ÄNGSJÖN
Article Number705.353.34- Width: 63 cm (24 ¾ ")
- Height: 6 cm (2 ½ ")
- Length: 82 cm (32 ¼ ")
- Weight: 17.40 kg (38 lb 6 oz)
- Package(s): 1
- Width: 35 cm (13 ¾ ")
- Height: 10 cm (3 ¾ ")
- Length: 61 cm (23 ¾ ")
- Weight: 11.00 kg (24 lb 4 oz)
- Package(s): 1
ORRSJÖN
Article Number106.060.32- Width: 59 cm (23 ¼ ")
- Height: 18 cm (7 ")
- Length: 67 cm (26 ½ ")
- Weight: 19.97 kg (43 lb 16 oz)
- Package(s): 1
MACKSJÖN
Article Number006.008.32- Width: 22 cm (8 ½ ")
- Height: 16 cm (6 ¼ ")
- Length: 34 cm (13 ¼ ")
- Weight: 1.50 kg (3 lb 5 oz)
- Package(s): 1
RÄNNILEN
Article Number504.224.13- Width: 27 cm (10 ¾ ")
- Height: 8 cm (3 ¼ ")
- Length: 44 cm (17 ¼ ")
- Weight: 0.39 kg (14 oz)
- Package(s): 1
