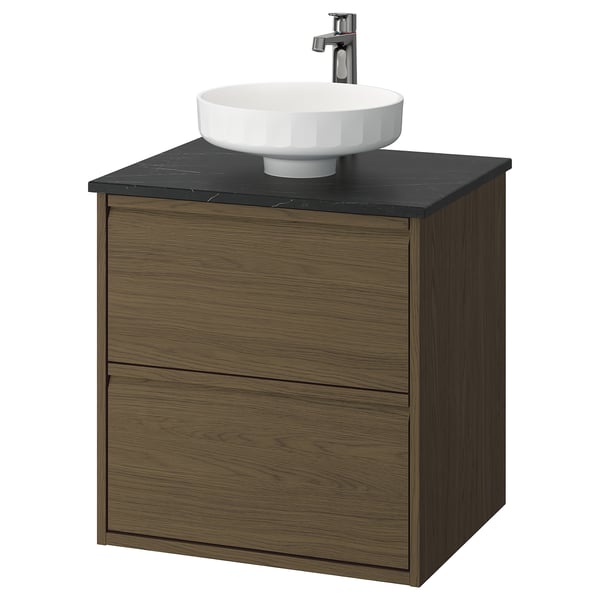

ÄNGSJÖN / LERSJÖN Sink cab w drawers/sink/tap, brown oak effect/black marble effect, 64x55x80 cm (25x21 1/2x31 3/8 ")
How to get it
ÄNGSJÖN bathroom furniture has a modern appeal with minimal details. This sink cabinet with countertop and a round countertop sink creates a personal and stylish centrepiece in your bathroom.
Product details
Generous, full drawer storage capacity for all your essentials as piping is led through the back and not via a cut-out in the drawers. Drawers open all the way for a good overview.
The brown oak effect finish with a dark wooden look gives your space a warm and welcoming vibe. A contemporary expression with integrated handles that underline the minimalist look.
This cabinet is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
To make it simpler for you, the countertop is available as pre-cut. You need to cut holes for sink and faucet on your own.
Combine with other cabinets in the ÄNGSJÖN series to create a coordinated bathroom solution that fits your space and needs.
The sink is made of crushed marble which enables sharp, crisp edges with a scratch-resistant surface. This gives a clean and modern look.
Good to know
Includes: 1 bathroom vanity with drawers, 1 countertop, 1 countertop sink, 1 water trap and 1 faucet.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
Materials and care
Material
- Frame/ Middle rail/ Bottom panel/ Drawer divider/ Drawer sides/ Drawer back:
- Particleboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Top rail:
- Fiberboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Drawer front:
- Particleboard, Fiberboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Drawer bottom:
- Fiberboard, Plastic foil
Fiberboard, Plastic foil, Melamine foil
Polyester/crushed marble, Polyester
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
- Water trap frame/ Nut/ Outlet pipe:
- Polypropylene
- Washer/ Seals:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene
- Strainer:
- Stainless steel
- Assembly tool:
- ABS plastic
Care
Wipe clean with a mild soapy solution.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe dry with a clean cloth.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the sink.
Safety and compliance
Assembly and documents
TECHNICAL INFORMATION
BROGRUND
Faucet, tall, chrome plated
Article Number005.320.94| Type of faucet | Sink faucet, tall |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 500 mm (19 3/4") |
| Hose connection size | 9/16" x 24UNEF |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Third party certified according to local standards by |

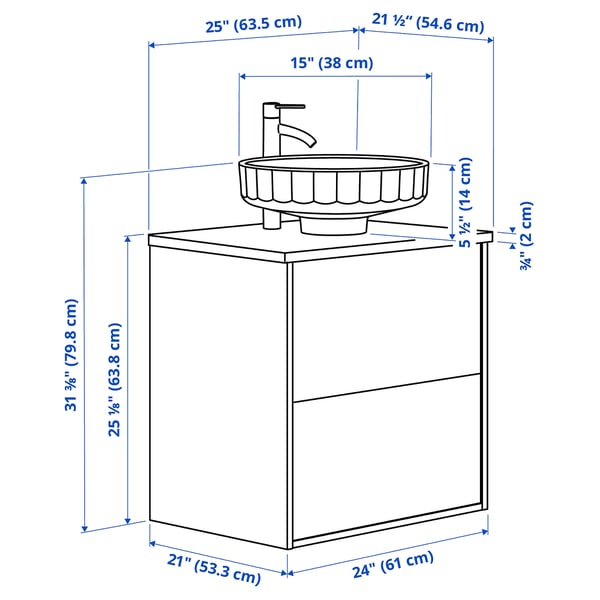

Measurements
- Width: 63.5 cm (25 ")
- Depth: 54.6 cm (21 1/2 ")
- Height: 79.8 cm (31 3/8 ")
Packaging
ÄNGSJÖN
Article Number405.353.40- Width: 63 cm (24 ¾ ")
- Height: 6 cm (2 ½ ")
- Length: 82 cm (32 ¼ ")
- Weight: 17.36 kg (38 lb 4 oz)
- Package(s): 1
- Width: 35 cm (13 ¾ ")
- Height: 10 cm (3 ¾ ")
- Length: 61 cm (23 ¾ ")
- Weight: 10.82 kg (23 lb 13 oz)
- Package(s): 1
TOLKEN
Article Number105.553.82- Width: 55 cm (21 ¾ ")
- Height: 3 cm (1 ")
- Length: 76 cm (29 ¾ ")
- Weight: 5.51 kg (12 lb 2 oz)
- Package(s): 1
LERSJÖN
Article Number205.929.54- Width: 40 cm (15 ¾ ")
- Height: 17 cm (6 ¾ ")
- Length: 40 cm (15 ¾ ")
- Weight: 6.00 kg (13 lb 4 oz)
- Package(s): 1
BROGRUND
Article Number005.320.94- Width: 23 cm (8 ¾ ")
- Height: 6 cm (2 ¼ ")
- Length: 41 cm (16 ¼ ")
- Weight: 1.83 kg (4 lb 1 oz)
- Package(s): 1
RÄNNILEN
Article Number504.224.13- Width: 27 cm (10 ¾ ")
- Height: 8 cm (3 ¼ ")
- Length: 44 cm (17 ¼ ")
- Weight: 0.39 kg (14 oz)
- Package(s): 1
