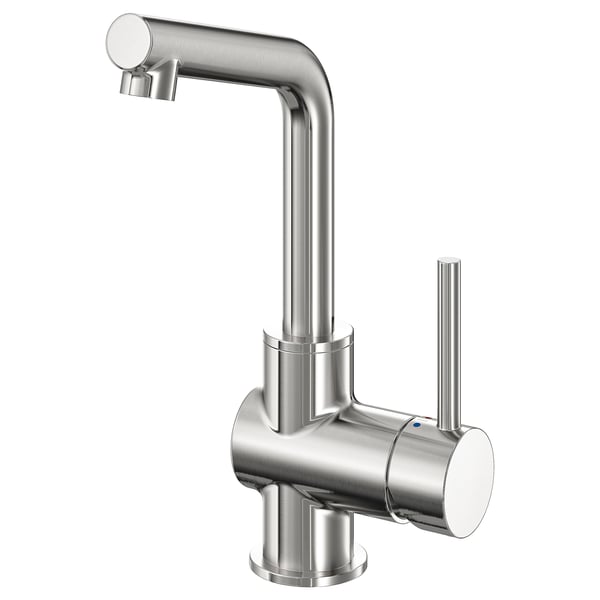

LUNDSKÄR Wash-basin mixer tap, stainless steel colour
How to get it
10 year guarantee
A durable tap with a tall and sleek design in stainless steel colour. The built-in aerator regulates the water flow, which in turn helps to reduce water- and energy-use.
Product details
10 year guarantee. Read about the terms in the guarantee brochure.
This is a durable mixer tap that you can use for many years, since the hard, ceramic discs withstand the friction that always occurs when you change the temperature of the water.

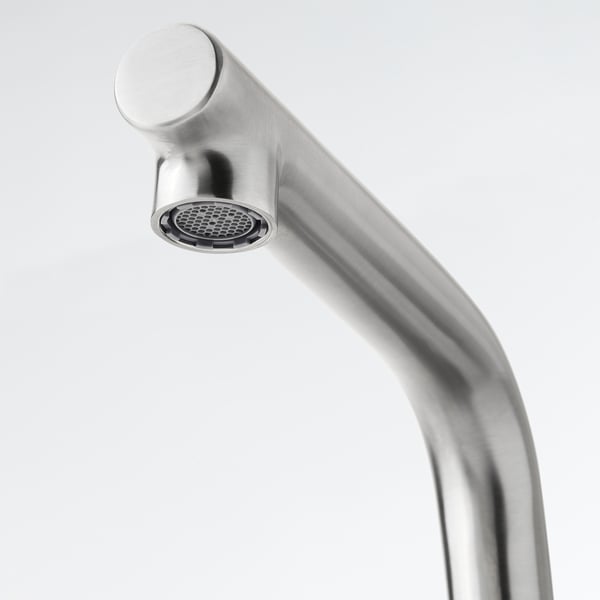

An aerator integrated in the tap keeps the water flow just right while less water and energy is used.
Jon Karlsson
Good to know
Water and energy saving aerator for high-pressure systems included.
Connection hoses with 1/2" connection included. Length: 35 cm.
A tool is included that makes it easy to install the mixer tap in place.
Overflow ring, plug lid, fixing screw and waste grill in matching colour included.
WELS 6 star rating, 3.5 l/min.
Max. temperature hot water system 80°C/176°F.
Not compatible with HÖRVIK or KATTEVIK countertop wash-basins as the mixer tap must be mounted in a wash-basin, not in a countertop.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Fits IKEA wash-basins and standard wash-basins from other manufacturers.
Materials and care
Material
- Zinc, Metallized
Care
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
Safety and compliance
Assembly and documents
Assembly instructions
LUNDSKÄR Wash-basin mixer tap705.328.49Advice and care instructions
LUNDSKÄR Wash-basin mixer tap705.328.49Technical Information
LUNDSKÄR
Wash-basin mixer tap, stainless steel colour
Article Number705.328.49| Type of tap | Wash-basin mixer tap |
| WELS rating | |
| WELS registration number | T36448 |
| Max. flow rate at 3 bar | 3.5 l/min (1.2 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 1/2" (R15) " |
| Swivel spout | 360 ° |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | Yes |
| Noise level | I |
| Third party certified according to local standards by | IAPMO |

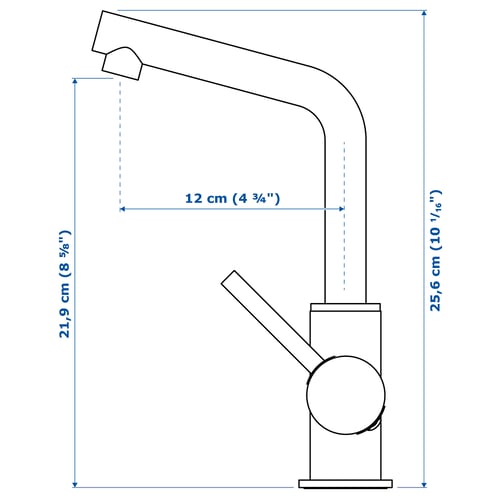

Measurements
- Height: 25 cm
Packaging
LUNDSKÄR
Article Number705.328.49- Width: 20 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 1.67 kg
- Package(s): 1
