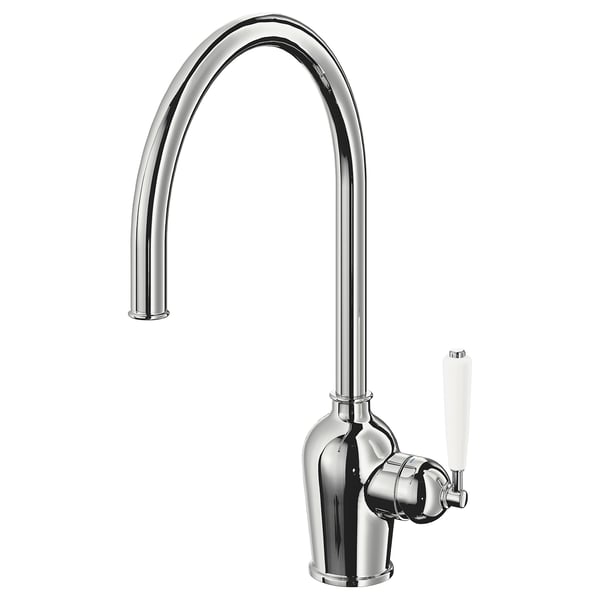

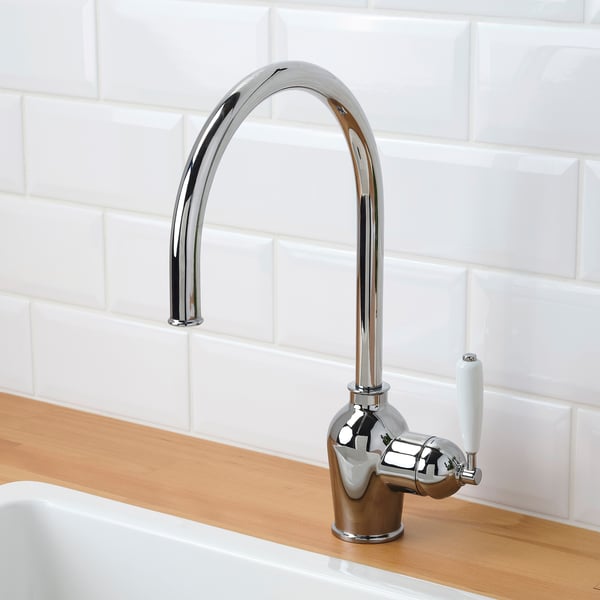

INSJÖN Kitchen mixer tap, chrome-plated
How to get it
10 year guarantee
INSJÖN tap in chrome helps lower water- and energy-use – so you can lower your bills too. The high spout is practical for cleaning big pots and the quality is guaranteed to outlast many years of washing and rinsing.
Product details
10 year guarantee. Read about the terms in the guarantee brochure.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
The high spout makes it easier to wash dishes, including large pots.
Chrome-plated brass is a hard and durable surface that is easy to clean.
An aerator integrated in the tap keeps the water flow just right while less water and energy is used.
Brickstad/Palleschitz/Petersén
Good to know
WELS 5 star rating, 5.0 l/min.
Max. temperature hot water system 80°C/176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 70 mm thick sink/worktop.
Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.
Connection hoses with 1/2" connection included. Length: 35 cm.
A tool is included that makes it easy to install the mixer tap in place.
Swivel spout is preset to 360° but can be changed to 120°.
Materials and care
Material
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe dry with a clean cloth.
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
Safety and compliance
Assembly and documents
Assembly instructions
INSJÖN Kitchen mixer tap003.701.19Advice and care instructions
INSJÖN Kitchen mixer tap003.701.19Technical Information
INSJÖN
Kitchen mixer tap, chrome-plated
Article Number003.701.19| Type of tap | Kitchen mixer tap |
| WELS rating | 5 stars |
| WELS registration number | T30430 |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 1/2" (R15) " |
| Swivel spout | Swivel spout is preset to 360° but can be changed to 120°. |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | IAPMO OCEANA |

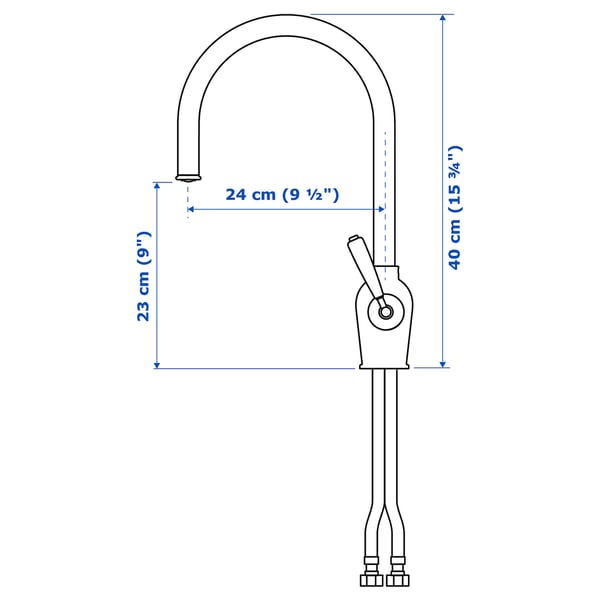

Measurements
- Height: 40 cm
Packaging
INSJÖN
Article Number003.701.19- Width: 35 cm
- Height: 8 cm
- Length: 53 cm
- Weight: 2.70 kg
- Package(s): 1
Reviews
Customer reviews
Material
What is brass?
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.
