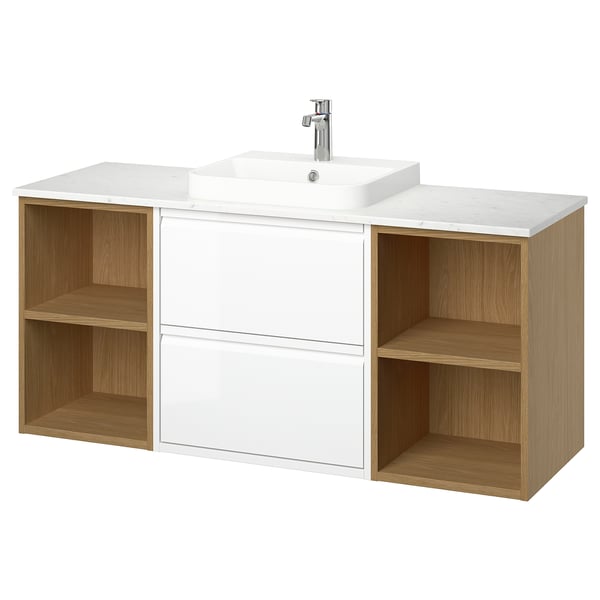

ÄNGSJÖN / BACKSJÖN Wash-stand/wash-basin/tap, high-gloss white/oak effect/white marble effect, 142x49x71 cm
How to get it
10 year guarantee
A solution with closed storage and wash-basin placed in the middle, surrounded by open cabinets and countertop space on each side. The warm wooden look invites you to relax.
Product details
This combination offers a perfect mix of open and closed storage as well as generous counterspace paired with a stylish, semi-recessed wash-basin.
Depending on your space and needs, complete this solution with your choice of a mirror or mirror cabinet from our range, sold separately.
The high gloss finish in white creates a sleek and contemporary expression emphasised with integrated handles for a refined look.

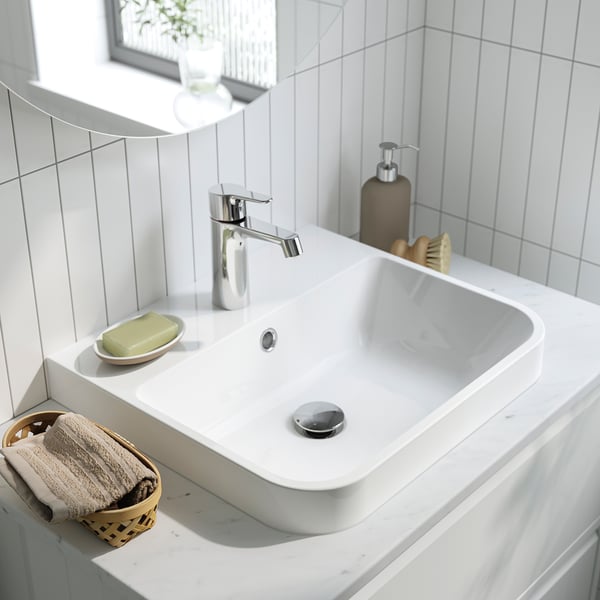

The wash-basin is made of crushed marble which enables sharp, crisp edges with a scratch-resistant surface. This gives a clean and modern look.
This combination is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
Combine with other cabinets in the ÄNGSJÖN series to create a coordinated bathroom solution that fits your space and needs.
10 year guarantee. Read about the terms in the guarantee brochure.
Good to know
Comprises: 1 wash-stand with drawers, 2 open cabinets, 1 countertop, 1 semi-recessed wash-basin, 1 water trap and 1 mixer tap.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
Materials and care
Material
- Frame/ Bottom panel:
- Particleboard, Plastic foil (min. 50% recycled), Plastic foil, Plastic edging, Plastic edging
- Top rail:
- Fibreboard, Plastic foil (min. 50% recycled), Plastic edging, Plastic edging
- Middle rail/ Drawer divider/ Drawer sides/ Drawer back:
- Particleboard, Plastic foil, Plastic edging, Plastic edging
- Drawer front:
- Fibreboard, Plastic foil (min. 50% recycled), Plastic foil, Plastic edging, Plastic edging
- Drawer bottom:
- Fibreboard, Plastic foil, Plastic foil
- Frame/ Shelf:
- Particleboard, Plastic foil, Plastic edging (min. 50% recycled), Plastic edging
- Back panel:
- Fibreboard, Plastic foil
- Fibreboard, Plastic foil, Melamine foil
- Basematerial:
- Polyester/crushed marble, Polyester
- Cover/ Spring:
- Stainless steel
- Cover cap/ Mechanism:
- Acetal plastic
- Sealing ring:
- Synthetic rubber
- Cover cap:
- Polycarbonate/ABS plastic
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
- Water trap frame/ Nut/ Outlet pipe/ Waste pipe:
- Polypropylene plastic
- Washer/ Seals:
- Synthetic rubber
- Strainer:
- Stainless steel
- Assembly tool:
- ABS plastic
Care
Wipe clean with a mild soapy solution.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe dry with a clean cloth.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Safety and compliance
Technical Information
BROGRUND
Wash-basin mixer tap, chrome-plated
Article Number705.321.04| Type of tap | Wash-basin mixer tap |
| WELS rating | 6 stars |
| WELS registration number | T28352 |
| Max. flow rate at 3 bar | 4.5 l/min (1.2 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 1 bar (0,1MPa) (14.5 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 350 mm (13 3/4") |
| Hose connection size | G 1/2" (R15) " |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Noise level | I |
| Third party certified according to local standards by | IAPMO |

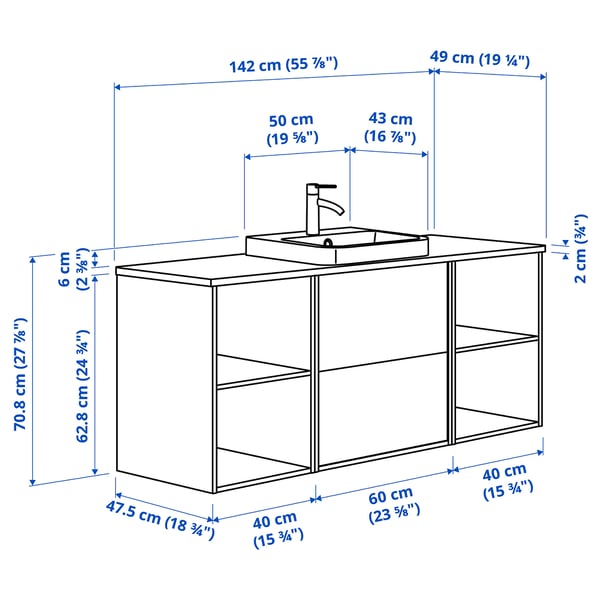

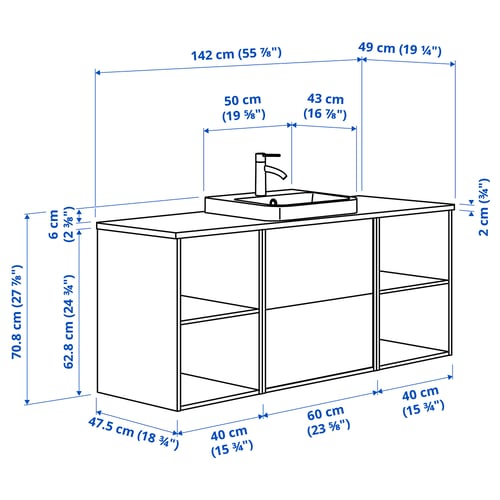

Measurements
- Width: 142.0 cm
- Depth: 49.0 cm
- Height: 70.8 cm
- Drawer front, thickness: 16 mm
Packaging
ÄNGSJÖN
Article Number105.353.32- Width: 57 cm
- Height: 7 cm
- Length: 82 cm
- Weight: 16.25 kg
- Package(s): 1
- Width: 35 cm
- Height: 10 cm
- Length: 61 cm
- Weight: 11.00 kg
- Package(s): 1
HAGAÅN
Article Number805.355.12- Width: 49 cm
- Height: 11 cm
- Length: 67 cm
- Weight: 14.13 kg
- Package(s): 2
TOLKEN
Article Number204.927.61- Width: 50 cm
- Height: 3 cm
- Length: 157 cm
- Weight: 10.93 kg
- Package(s): 1
BACKSJÖN
Article Number505.499.40- Width: 47 cm
- Height: 17 cm
- Length: 60 cm
- Weight: 10.30 kg
- Package(s): 1
BROGRUND
Article Number705.321.04- Width: 18 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 1.50 kg
- Package(s): 1
RÄNNILEN
Article Number304.224.14- Width: 27 cm
- Height: 8 cm
- Length: 44 cm
- Weight: 0.39 kg
- Package(s): 1
