Must be completed with
How to get it
5 year guarantee

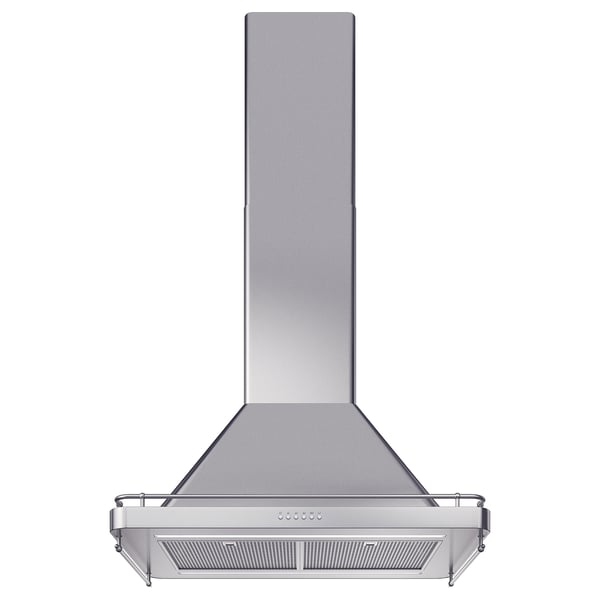

This stainless-steel hood with dimmable LED lighting takes centre stage over your kitchen island. The spice rack and rails for hanging utensils, puts things in easy reach and reveals your culinary passion.
Product details
5 year guarantee. Read about the terms in the guarantee brochure.
Can be installed in two ways: ducted to the outside or in recirculation mode fitted with charcoal filter.
3 speed settings allow you to increase or decrease the hood’s power at the push of a button, depending on your cooking needs.

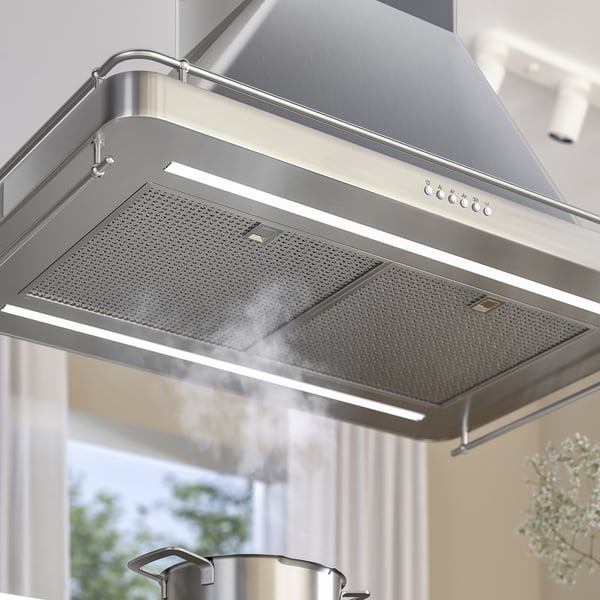

Dimmable LED strip included; effectively illuminates the cooking surface and provides energy saving.

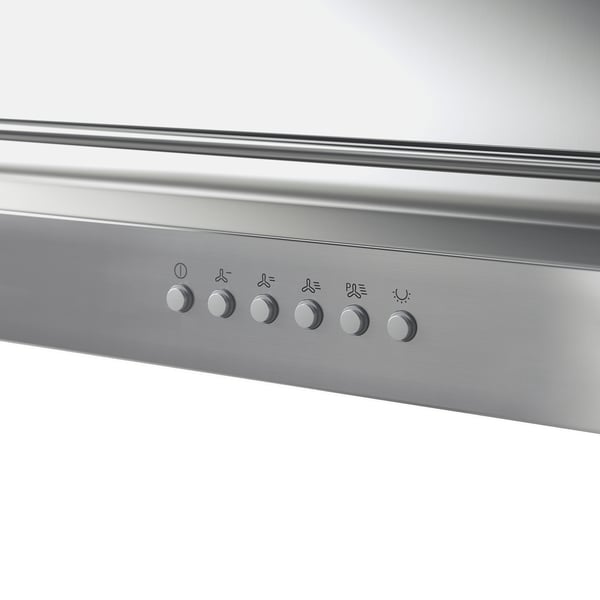

Control panel placed at front for easy access and use.
Integrated spice rack around the edge of the hood keeps your spices organised and clears work space on the worktop.
Eliminates cooking fumes and odours quickly and effectively thanks to the large extraction area.
You can easily remove and clean the grease filter in the dishwasher.
IKEA of Sweden
Good to know
Extraction rate in exhausting mode: 437 m³/h.
Noise level at max. exhaust speed: 59 dB (A).
Extraction rate in re-circulation mode: 296 m³/h.
Noise level at max. re-circulation speed: 67 dB (A).
Voltage: 220-240V.
Ceiling-mounted extractor hood with 3 different speeds and booster function.
For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.
For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 440.
You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.
Flexible pipe for fan and charcoal filter sold separately.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Safety and compliance
Assembly and documents
Assembly instructions
OMNEJD Ceiling-mounted extractor hood105.217.35Technical information
OMNEJD
Ceiling-mounted extractor hood, stainless steel, 90 cm
Article Number105.217.35| Brand Name | IKEA |
| Model Identifier | OMNEJD 105-217-35 |
| Annual energy consumption | 25.6 kWh/annum |
| Energy efficiency class | A++ |
| Fluid Dynamic Efficiency | 38.5 % |
| Fluid Dynamic Efficiency class | A |
| Lighting Efficiency | 52.1 Lux/watt |
| Lighting Efficiency class | A |
| Grease Filtering Efficiency | 75.5 % |
| Grease Filtering Efficiency class | C |
| Air flow at minimum speed in normal use | 200 m³/h |
| Air flow at maximum speed in normal use | 415 m³/h |
| Air flow at maximum speed in normal use, recirculation | 220 m³/h |
| Air flow at intensive or boost setting | 770 m³/h |
| Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use | 42 dB |
| Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use | 57 dB |
| Airborne acoustical A-weighted sound power emissions art maximum speed available in normal use, recirculation | 61 dB |
| Airborne acoustical A-weighted sound power emissions at intensive or boost setting | 72 dB |
| Power consumption in Off mode | 0 Watt |
| Power consumption in standby mode | 0,49 Watt |

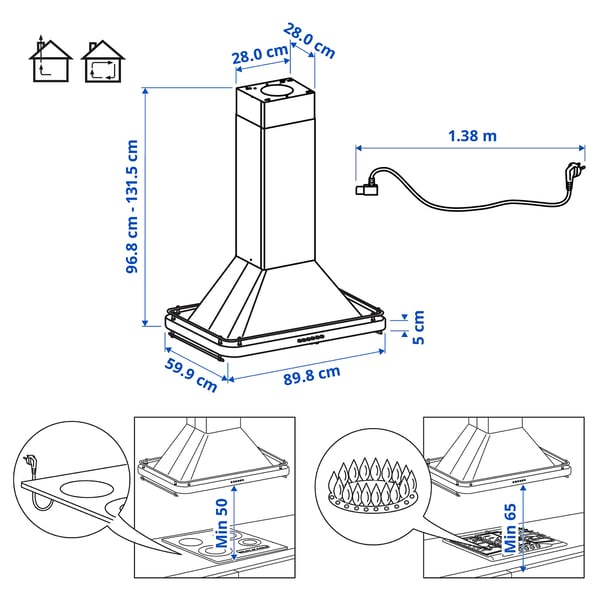

Measurements
- Width: 89.8 cm
- Depth: 59.9 cm
- Min. height extraction: 96.8 cm
- Max. height extraction: 131.5 cm
- Min. height recirculation: 96.8 cm
- Max. height recirculation: 131.5 cm
- Width of chimney: 28 cm
- Depth of chimney: 28 cm
- Weight: 26.50 kg
- Cord length: 138.0 cm
- Motor power: 160 W
Packaging
OMNEJD
Article Number105.217.35- Width: 76 cm
- Height: 53 cm
- Length: 114 cm
- Weight: 33.43 kg
- Package(s): 1
Customer reviews
Quality
Sensitive to noise or have an open-plan home?
For extractor hoods, a noise level below 60 dB is considered low – roughly equivalent to a normal conversation between two people. We measure the noise level of our hoods at max speed, making it easier to compare different models. Note that sound levels decrease at lower speeds, and recirculating hoods are typically louder than those vented outdoors. Noise may also increase if the ducting is long or has several bends, as the air has to work harder to pass through the system.
Function solution
Sound levels
Sound levels for appliances are measured in decibels (dBs). Our extractor hoods have been tested in speed 3 to determine the dB level. The sound level of your extractor hood is affected by: • Type of installation. Exhaust-mode or recirculation-mode. • Length and diameter of the exhaust pipe between extractor and exhaust vent. The longer it is and the smaller the diameter, the louder it gets. • 90° bends. The more bends you have in the exhaust pipe, the greater the sound.
