This is a flexible induction hob and effective extractor hood in one. No hood over the cooking area means you have a better overview – perfect for an open–plan kitchen with an island in the middle!
Product details
5 year guarantee. Read about the terms in the guarantee brochure.
Induction hobs are extremely energy efficient, fast and precise as induction technology transfers energy directly into magnetic cookware.

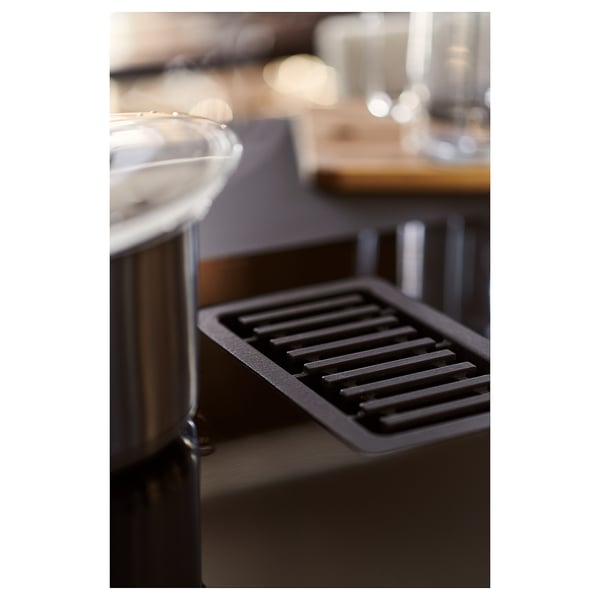

With this induction hob with an integrated extractor hood, you have a better overview and accessibility to the hob since you don’t need a regular extractor hood over the cooking area.

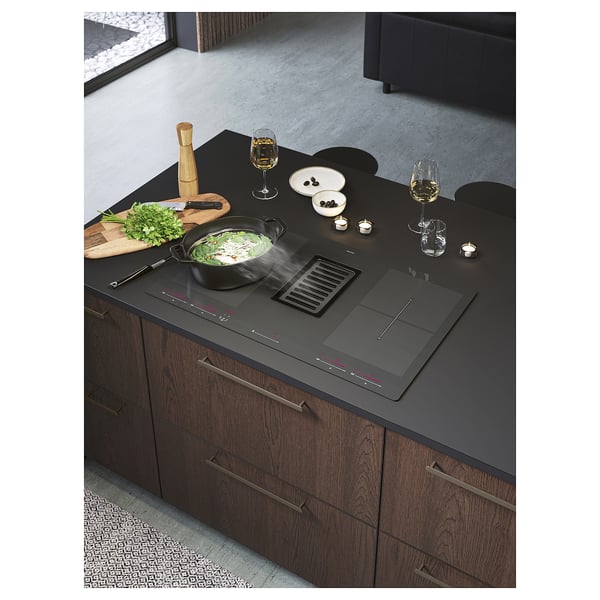

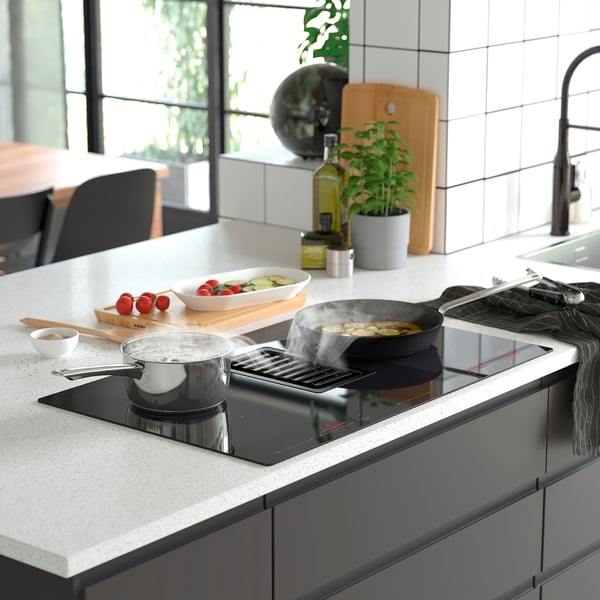

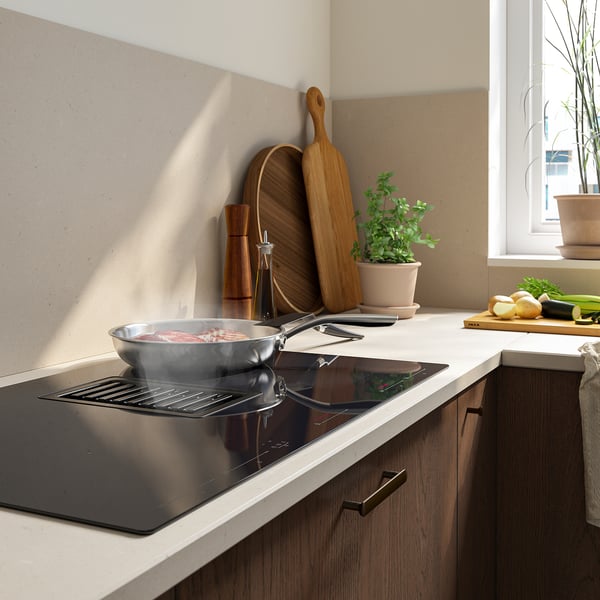

The hob is perfect in an open-plan kitchen with, for example, a kitchen island in the middle of the room, but works just as well in a regular kitchen along a wall.
The extractor hood automatically adjusts to the heating level on the hob – the higher the heat, the more powerful the extraction capacity.
All zones have a booster function that quickly makes the zone extra hot – ideal for boiling water, browning meat and frying wok dishes.

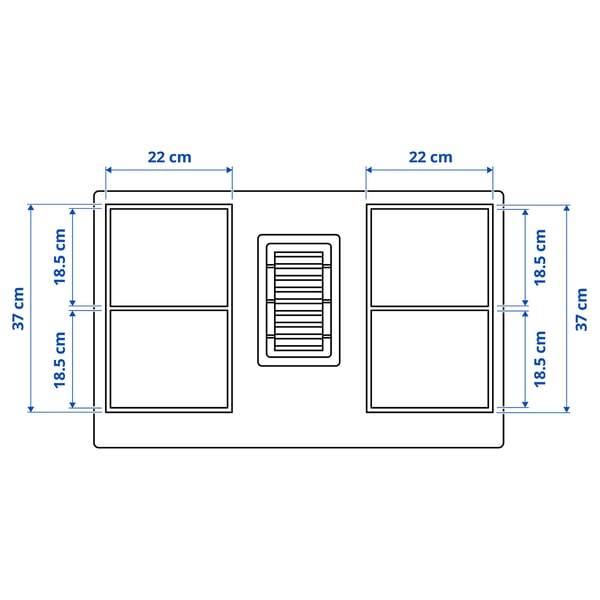

The hob's zones are flexible and can be used separately or connected to larger zones – depending on how large the cookware is that you’re using.
IKEA of Sweden
Good to know
Cord/cable not included. Wired-in installation. Installation must be made by a qualified electrician or specialist.

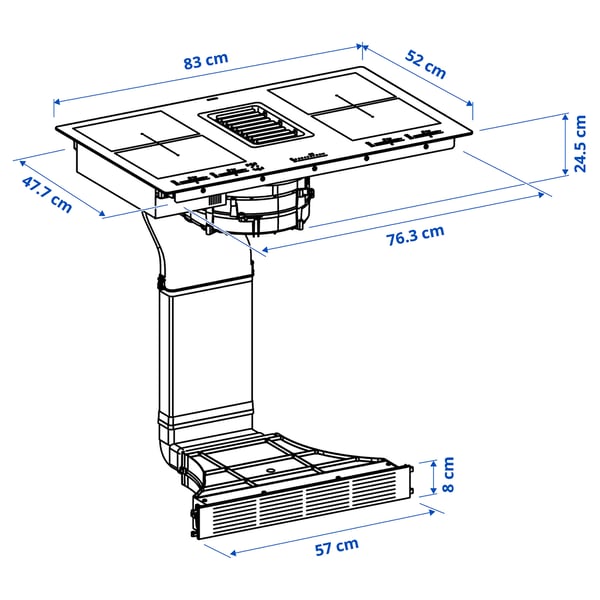

If you install the hood for re-circulation in a kitchen island, you can choose if you want to direct the outgoing air out into the room from the plinth or via the back of the kitchen island.
The hood can be installed either for re-circulation with charcoal filter and pipes, or as an extractor hood with pipes.
Water that runs down the fan is collected in a water container that is easy to remove and empty.
Charcoal filter and pipes for installation are included.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.

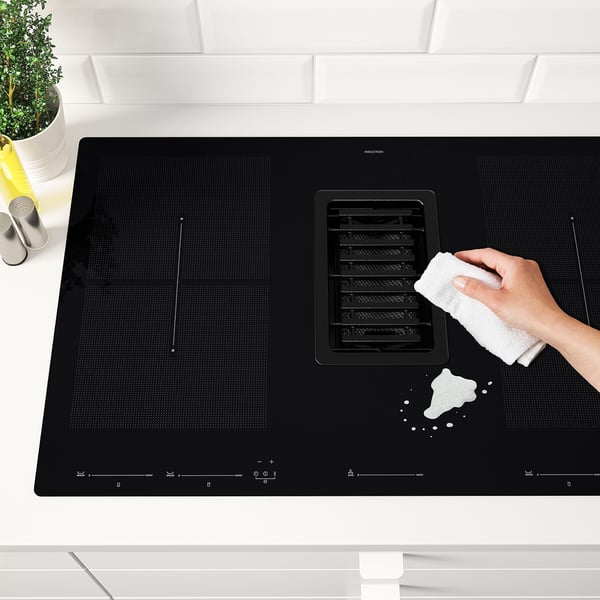

Clean spills on the cooking surface as soon as possible.
After cleaning, be sure to wipe dry with a soft cloth.
Assembly and documents
Assembly instructions
FÖRDELAKTIG Induction hob/integrated extractor504.494.03Advice and care instructions
FÖRDELAKTIG Induction hob/integrated extractor504.494.03Technical information
FÖRDELAKTIG

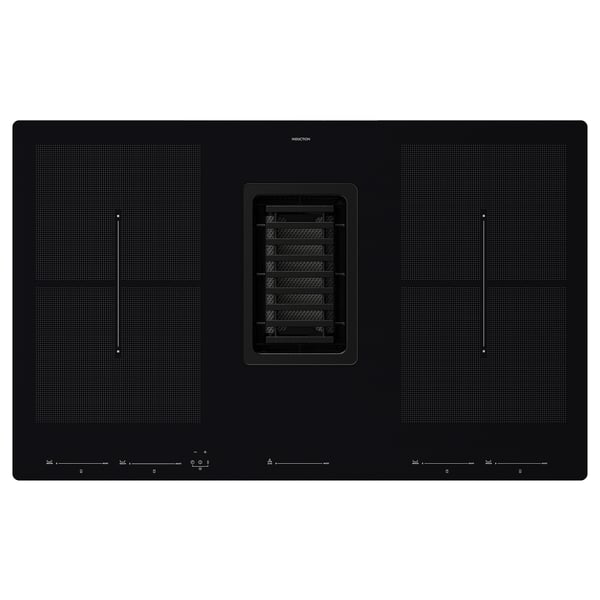

Induction hob/integrated extractor, IKEA 700 black, 83 cm
Article Number504.494.03| Brand Name | IKEA |
| Model Identifier | FÖRDELAKTIG 504.494.03 |
| Annual energy consumption | 28,7 kWh/annum |
| Energy efficiency class | A++ |
| Fluid Dynamic Efficiency | 37,6 % |
| Fluid Dynamic Efficiency class | A |
| Lighting Efficiency | N/A Lux/watt |
| Grease Filtering Efficiency | 85,1 % |
| Grease Filtering Efficiency class | B |
| Air flow at minimum speed in normal use | 245 m³/h |
| Air flow at maximum speed in normal use | 550 m³/h |
| Air flow at intensive or boost setting | 700 m³/h |
| Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use | 51 dB |
| Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use | 66 dB |
| Airborne acoustical A-weighted sound power emissions at intensive or boost setting | 72 dB |
| Power consumption in Off mode | 0,49 Watt |
| Power consumption in standby mode | N/A Watt |
Measurements
- Width: 83.0 cm
- Depth: 52.0 cm
- Height: 90.6 cm
- Weight: 21.00 kg

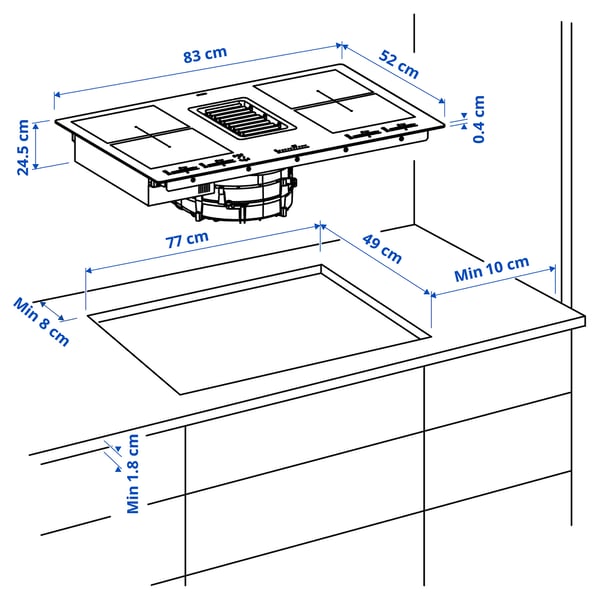

- Cut-out width: 77.3 cm
- Cut-out depth: 49.0 cm
Packaging
FÖRDELAKTIG
Article Number504.494.03- Width: 76 cm
- Height: 46 cm
- Length: 102 cm
- Weight: 30.70 kg
- Package(s): 1
